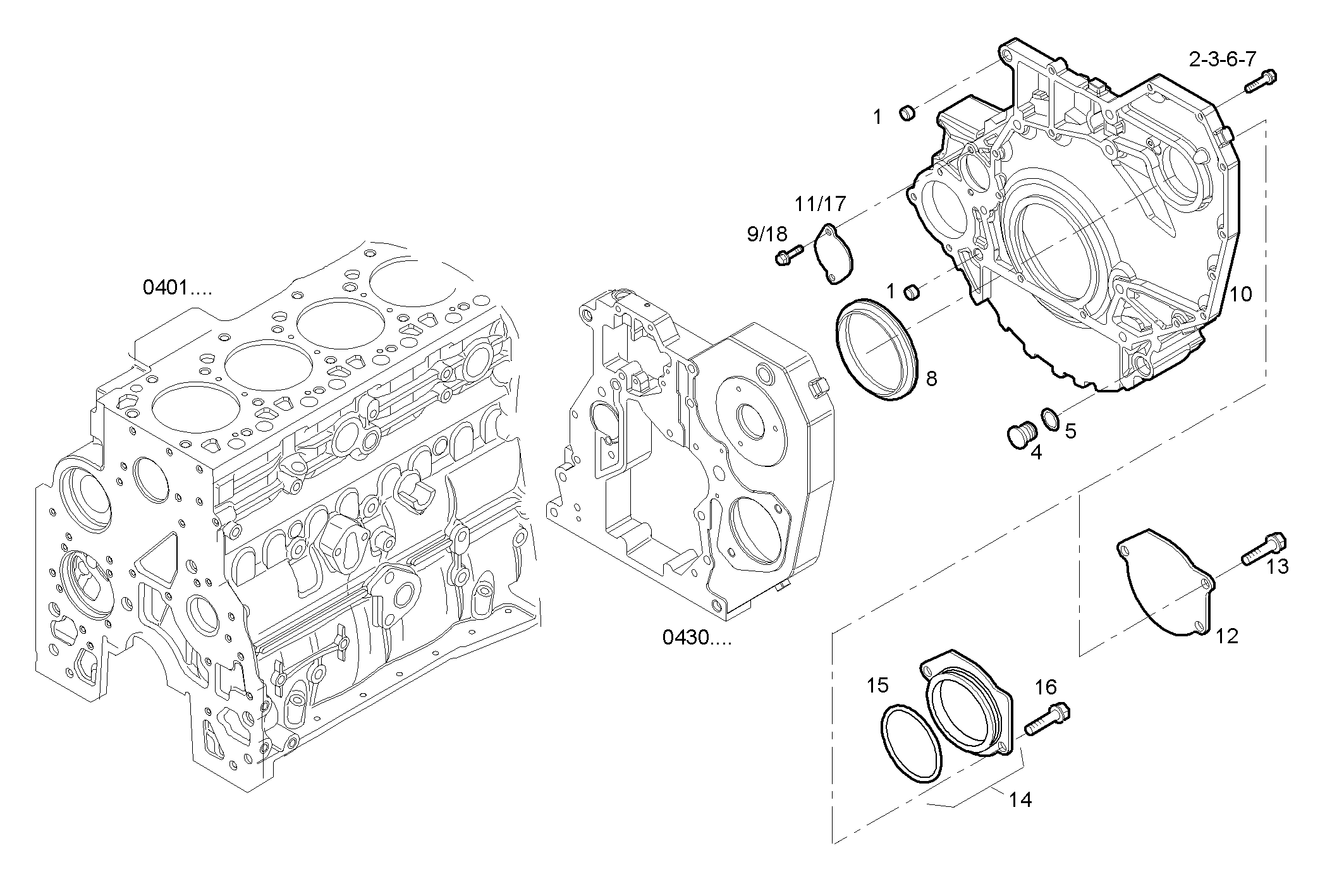

| Item |
Part number |
Description |
|
1 |
4899026 |
DOWEL PIN |
|
2 |
4899109 |
HEXAGON BOLT M10X1,5X80 MM |
|
3 |
4892915 |
HEXAGON BOLT M10X1,5X40 MM |
|
4 |
4895378 |
PLUG Ø29 MM |
|
5 |
17288480 |
O-RING 3,53x21,81 |
|
6 |
4899076 |
HEXAGON BOLT M12X80 MM |
|
7 |
4899074 |
HEXAGON BOLT |
|
8 |
4890833 |
SHAFT SEAL |
|
9 |
4899103 |
HEXAGON BOLT [UP TO#194518] |
|
10 |
504035386 |
REAR C.CASE COVER |
|
11 |
4895358 |
COVER [UP TO#194518] |
|
12 |
504030423 |
COVER [UP TO#189105] |
|
13 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
14 |
504115364 |
COVER ASSY |
|
15 |
17285481 |
O-RING Ø75,87 MM SP=2,62 MM |
|
16 |
16586325 |
HEXAGON BOLT M8X20 MM |
|
17 |
4895155 |
COVER |
|
18 |
4899068 |
HEXAGON BOLT M8X17 MM |
