N45MNAM10.01

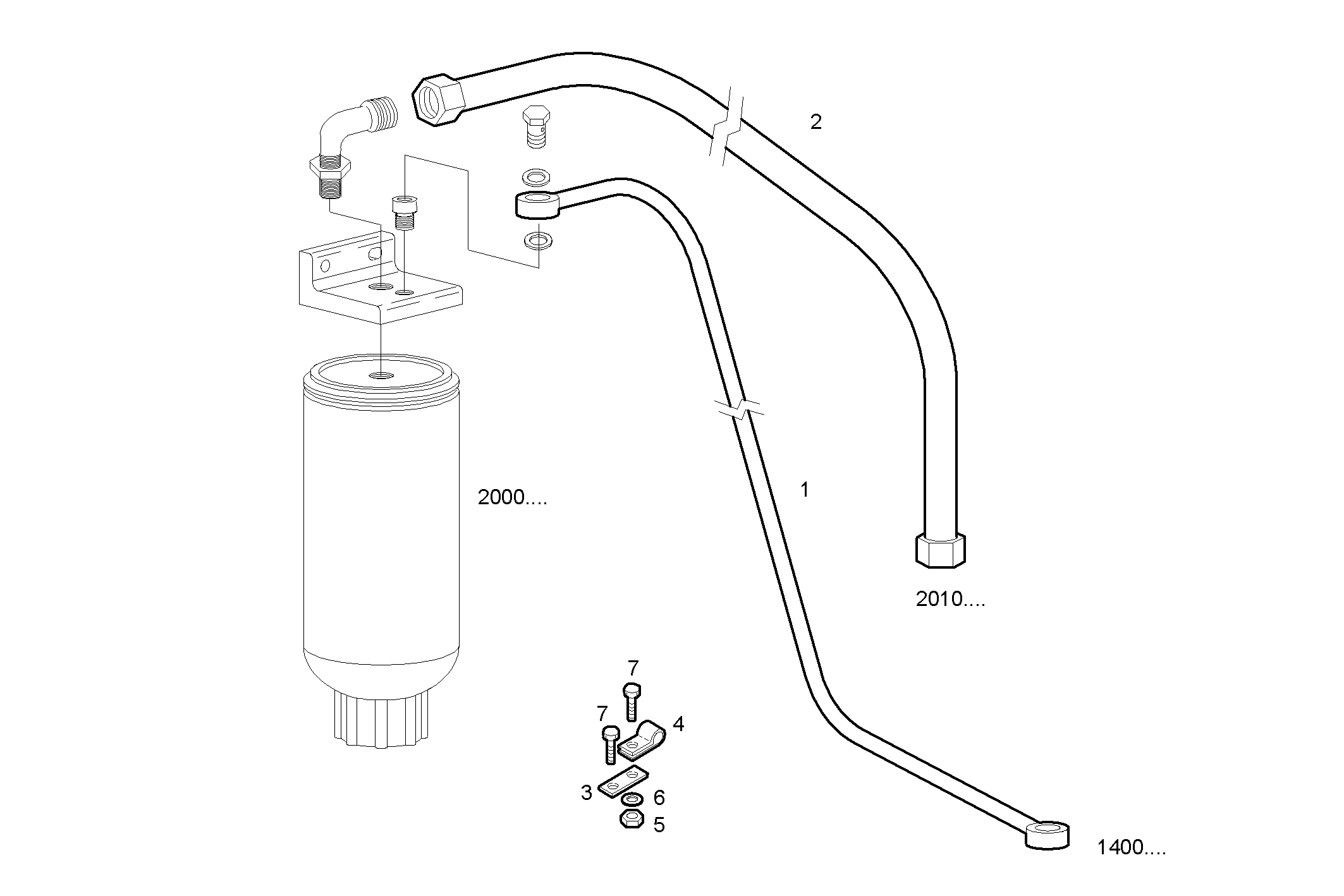

2030.249 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8039627 | FUEL LINE |
| 2 | 8039625 | FUEL LINE |
| 3 | 4929652 | RETAINER |
| 4 | 10450090 | PIPE CLIP Ø8 MM |
| 5 | 17037925 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605424 | SCREW M8X16 MM (8.8) |
