N45MNAM10.01

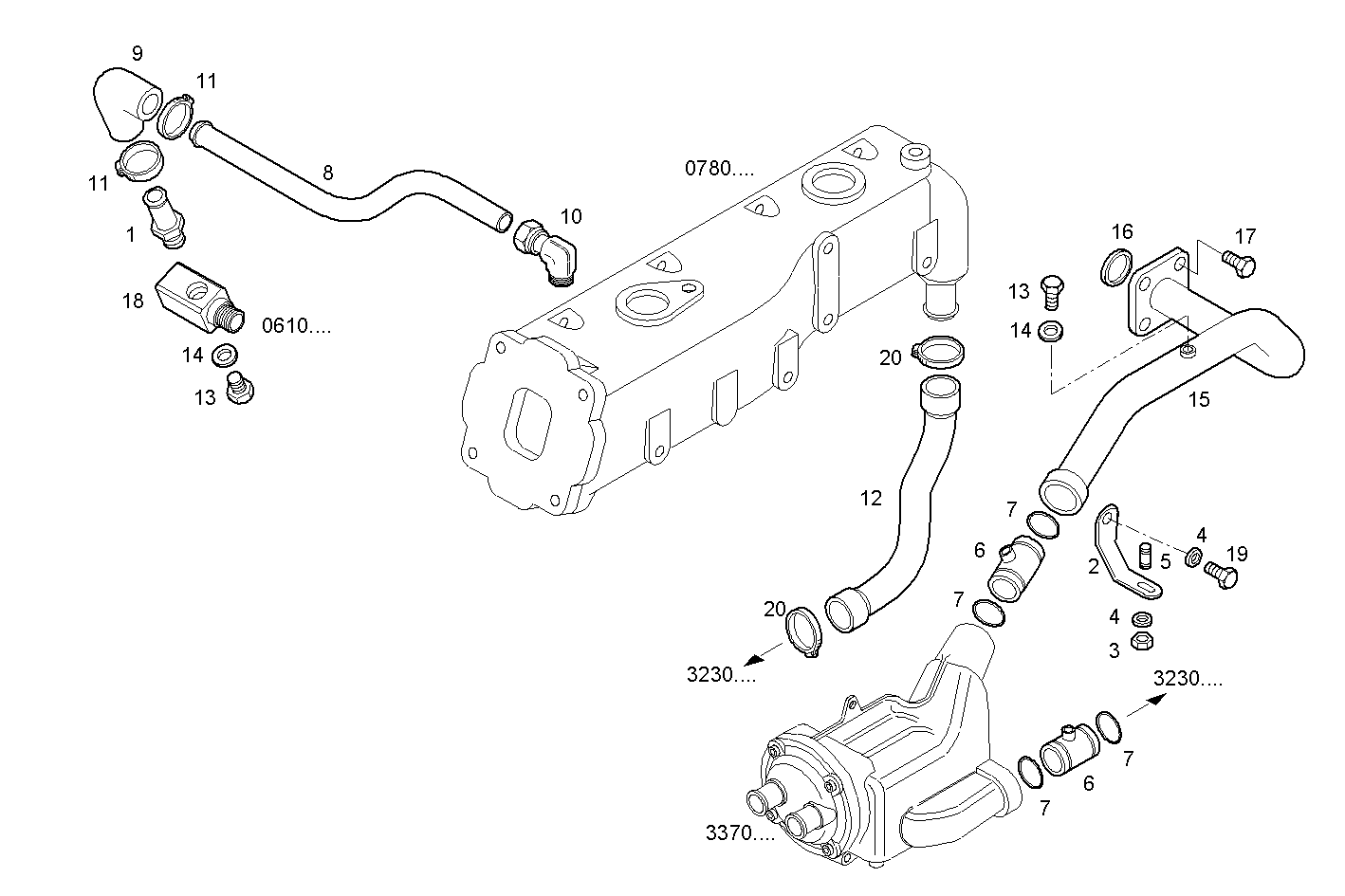

3230.061 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4633506 | THREADED UNION M22X1,5 |
| 2 | 8039350 | FASTENING BRACKET |
| 3 | 17037925 | HEXAGON NUT M8X1,25 |
| 4 | 17088374 | WASHER |
| 5 | 16729224 | STUD M8X16 MM |
| 6 | 8018308 | CONNECTOR SLEEVE |
| 7 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 8 | 8039378 | WATER PIPE |
| 9 | 8039365 | RUBBER SLEEVE |
| 10 | 8110267 | PIPE SOCKET |
| 11 | 18088593 | CLIP 25x40 |
| 12 | 8040140 | RUBBER SLEEVE |
| 13 | 10300611 | LOCK PLUG M14X1,5 |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 15 | 8036186 | WATER PIPE |
| 16 | 504078856 | RUBBER GASKET |
| 17 | 4899091 | HEXAGON BOLT |
| 18 | 8039246 | PIPE SOCKET |
| 19 | 16673735 | HEXAGON BOLT M8X25 MM |
| 20 | 18088493 | CLIP |
