N45MNAM10.01

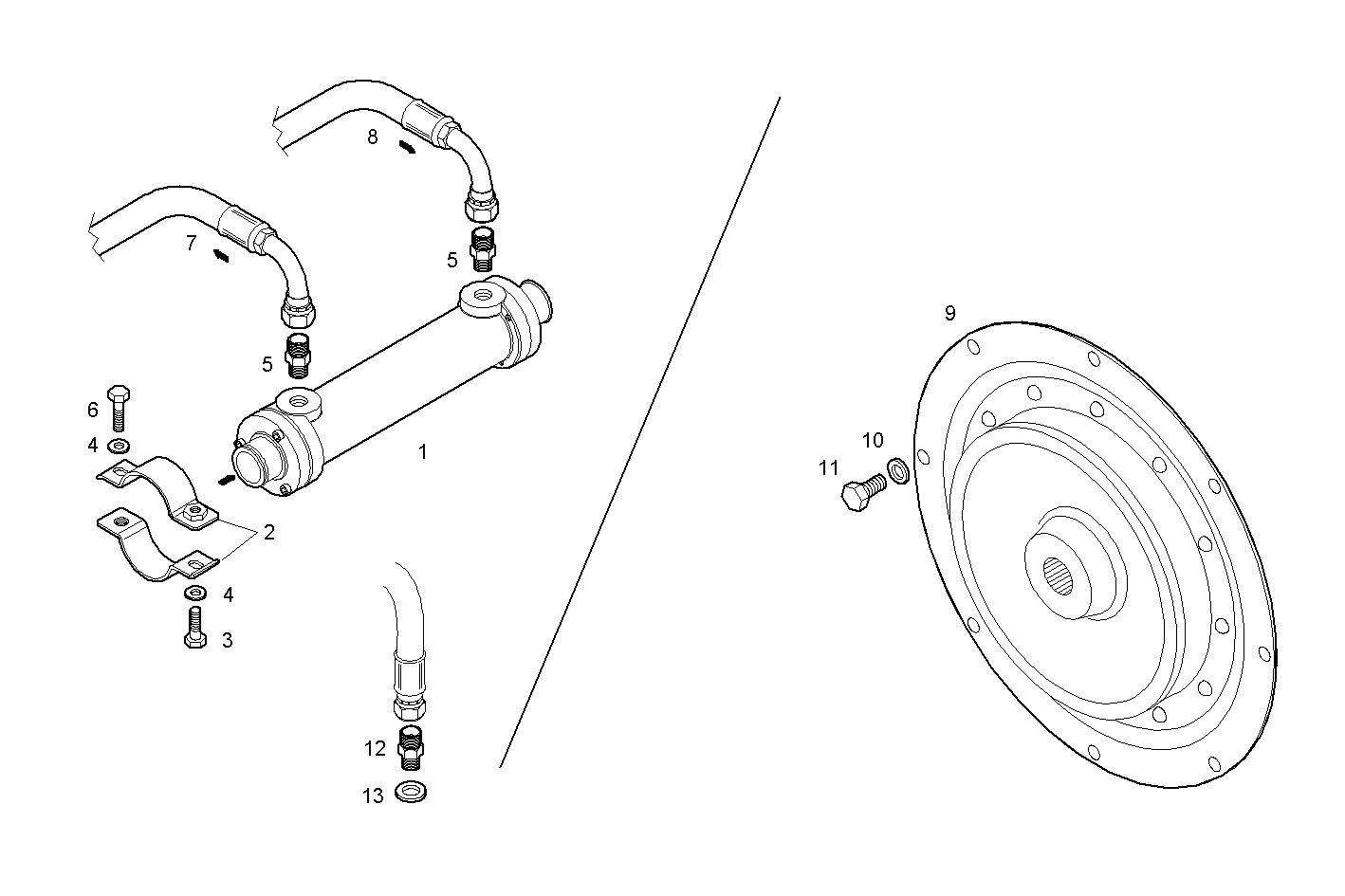

A13090503/01 ARRANGED FOR TM MARINE GEAR
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 8039731 | CLIP |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8101073 | PIPE SOCKET |
| 6 | 16605724 | SCREW M8X1,25X30 |
| 7 | 4935779 | HOSE |
| 8 | 8105620 | HOSE |
| 9 | 8005343 | FLEXPLATE |
| 10 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 11 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 12 | 8023701 | PIPE SOCKET |
| 13 | 11270460 | GASKET Ø17X21X1,5 MM |
