N45MNAM10.01

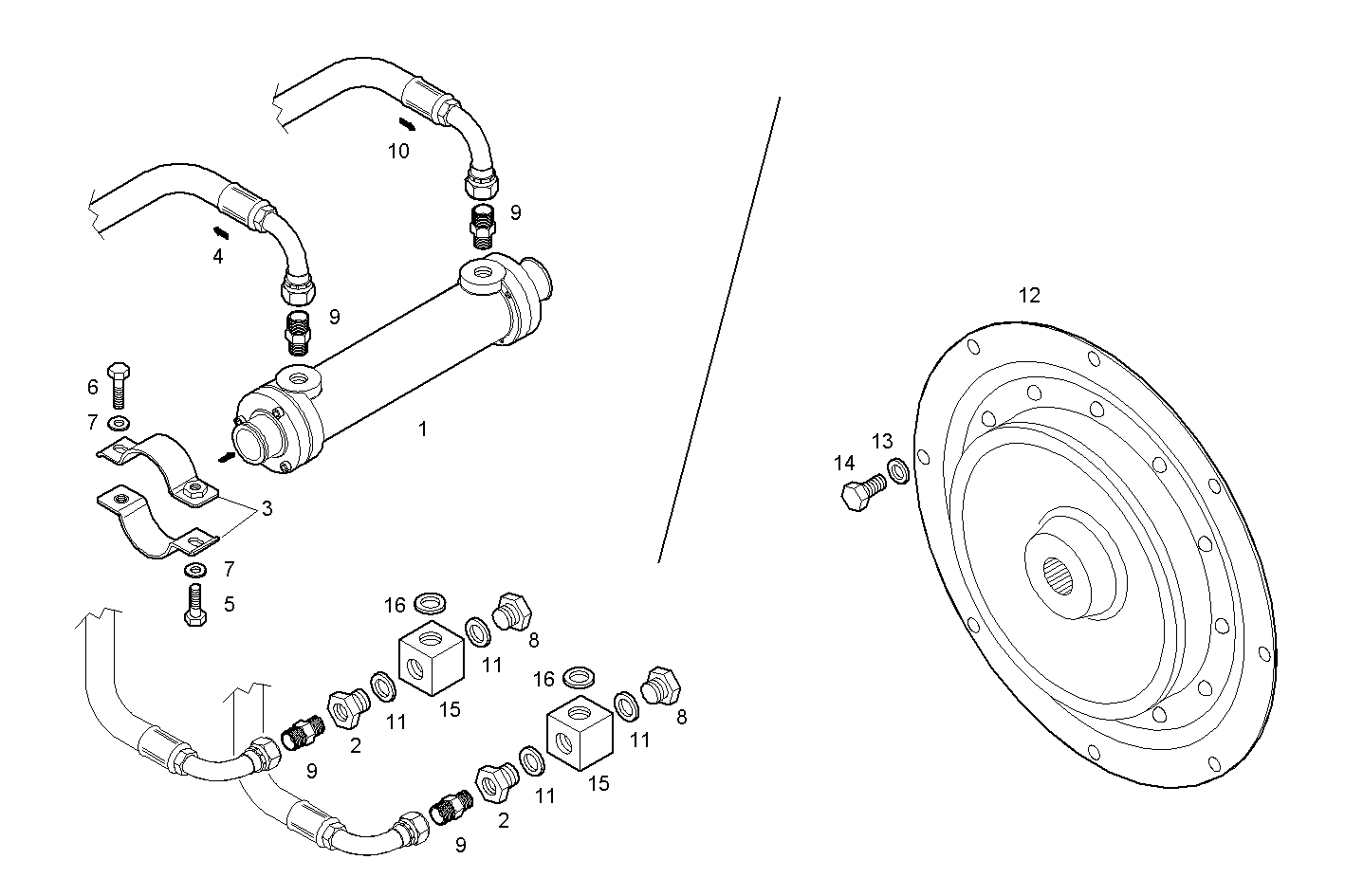

A13102501/01 ARRANGED FOR GEAR ZF

Iveco/FPT ARRANGED FOR GEAR ZF

Item Part number Description
1 8016304 OIL/WATER HEAT EXCHANGER ASSY
2 8105826 PIPE SOCKET
3 8039731 CLIP
4 8108735 OIL HOSE
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 16605724 SCREW M8X1,25X30
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 10183317 LOCK PLUG M16X1,5
9 4935465 PIPE SOCKET
10 8108736 OIL HOSE
11 98474309 WASHER Ø16X24 MM SP=1,9 MM
12 8005343 FLEXPLATE
13 17798374 SPRING WASHER Ø10,2X18,1 MM
14 15970524 HEXAGON BOLT M10X1,25X20
15 8107173 PIPE SOCKET
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
