N45MNAM10.01

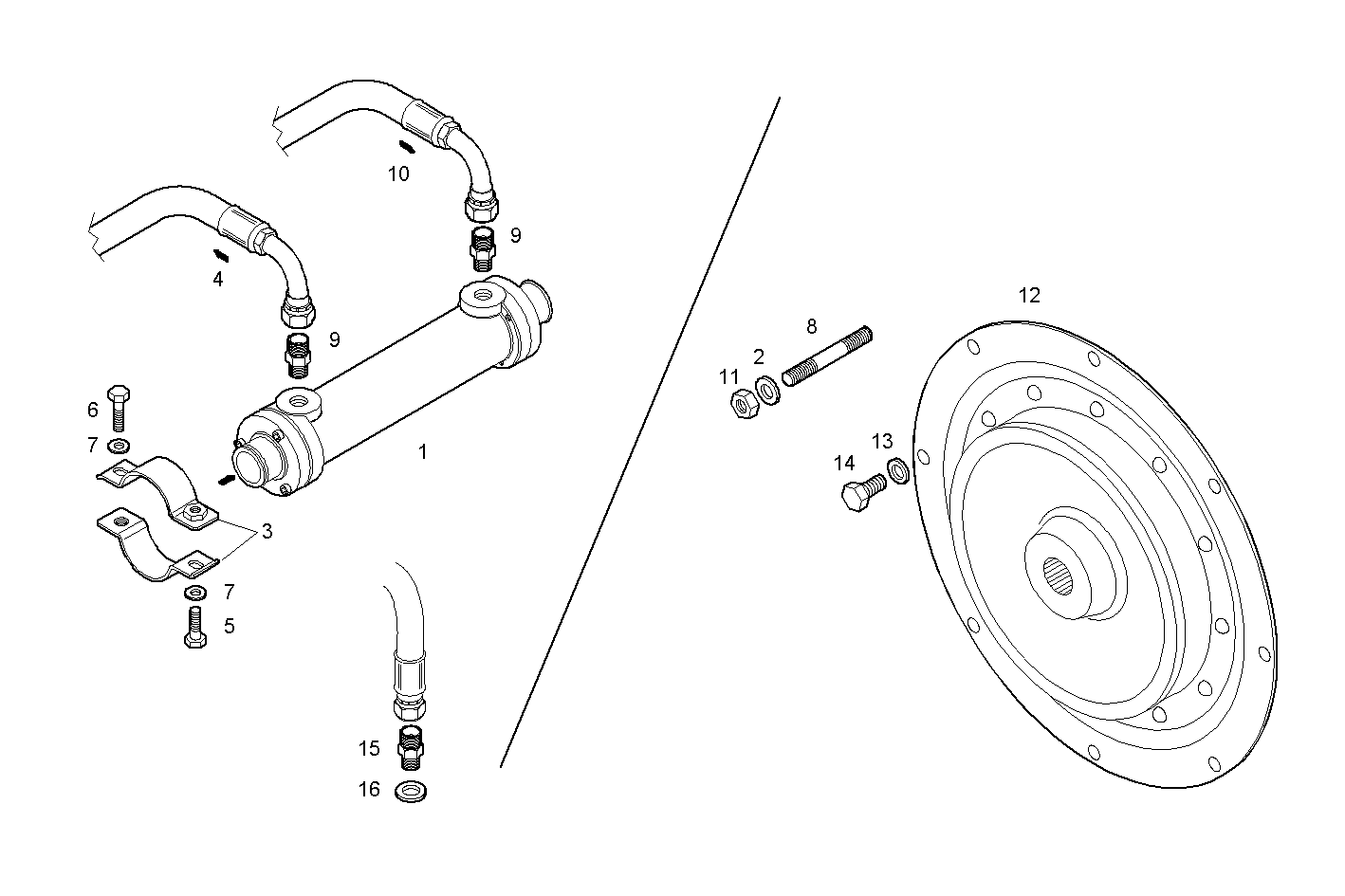

A13117502/01 ARRANGED FOR GEAR MG

Iveco/FPT ARRANGED FOR GEAR MG

Item Part number Description
0 4936603 OIL HOSE
1 8016304 OIL/WATER HEAT EXCHANGER ASSY
2 17090174 SPRING WASHER Ø10X20 MM
3 8039731 CLIP
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 16605724 SCREW M8X1,25X30
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17368024 STUD M10X25X30
9 8101073 PIPE SOCKET
10 4935778 OIL HOSE
11 17038131 HEXAGON NUT M10
12 8005350 FLEXPLATE
13 17798374 SPRING WASHER Ø10,2X18,1 MM
14 15970524 HEXAGON BOLT M10X1,25X20
15 8011764 PIPE SOCKET
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
