N45MNAM10.01

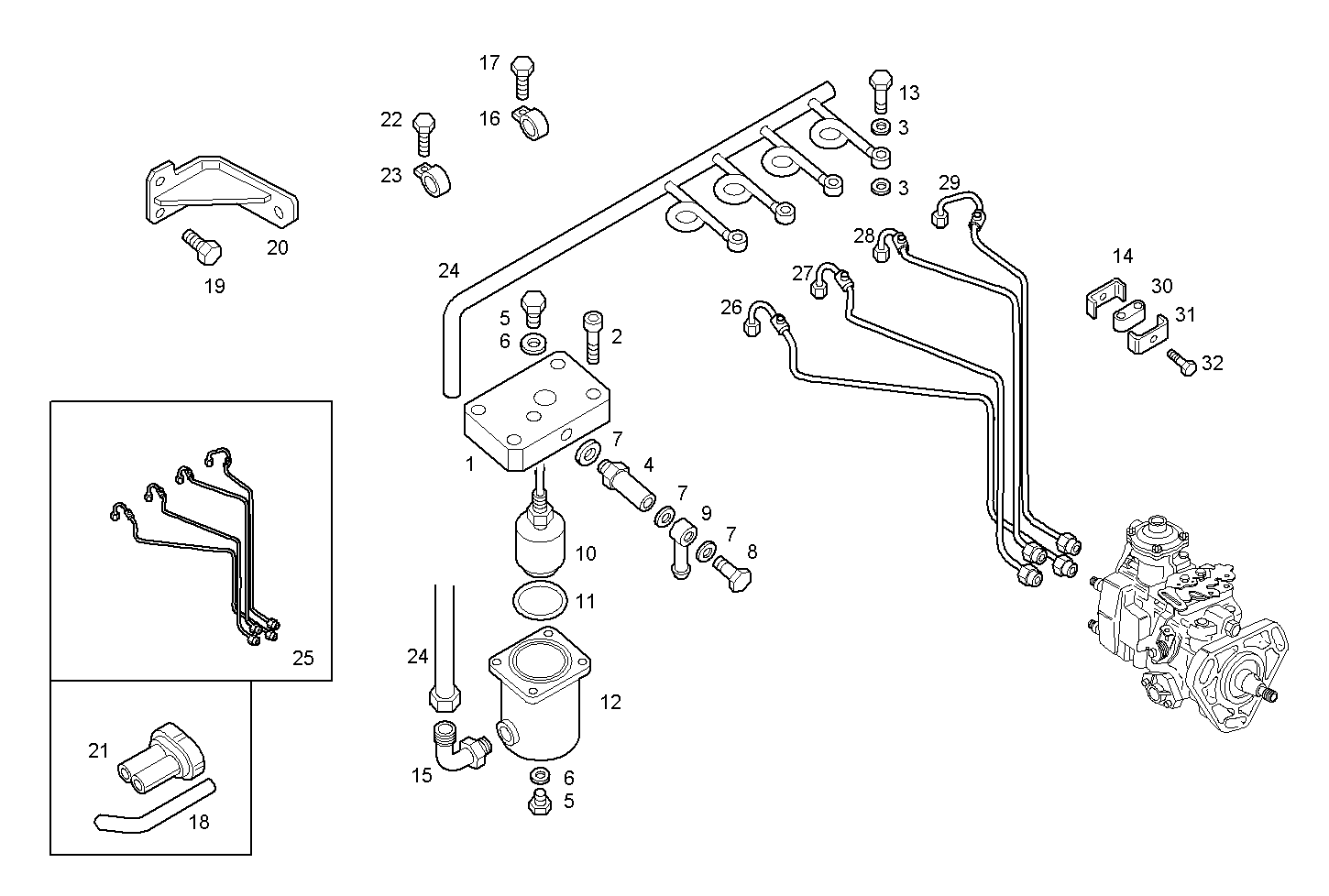

A16010502/01 DOUBLE WALL INJECTION PIPES - R.I.NA

Iveco/FPT DOUBLE WALL INJECTION PIPES

Item Part number Description
1 8020291 DISTRIBUTOR
2 16689424 SOCKET-HEAD SCREW M6X30 MM
3 98474303 WASHER Ø8X14 MM SP=2,3 MM
4 8102465 VALVE
5 16992211 THREADED PLUG M12X1,5
6 4858607 WASHER Ø12X17 MM SP=1,5 MM
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 98404882 PIPE SOCKET Ø8 MM
10 8102285 INDICATOR
11 17290081 O-RING Ø56,74 MM SP=3,53 MM
12 8026365 TANK
13 4864078 BANJO BOLT M8X1,25
14 4659222 CLAMP
15 8025927 ELBOW COUPLING
16 10450090 PIPE CLIP Ø8 MM
17 18137825 HEXAGON BOLT M6X16
18 19120680 LINER
19 16588025 HEXAGON BOLT M12X30 MM
20 8038159 FASTENING BRACKET
21 8031968 WIRE CONNECTOR
22 16586224 HEXAGON BOLT M8X1,25X16 MM
23 17316490 CLIP
24 8041363 INJECTION LINE ASSY
25 8040950 INJECTION LINES SET ASSY
26 8040951 INJECTION LINE CYLINDER No.1
27 8040952 INJECTION LINE CYLINDER No.2
28 8040953 INJECTION LINE CYLINDER No.3
29 8040954 INJECTION LINE CYLINDER No.4
30 4659220 DOWEL
31 4659221 CLIP
32 16585325 HEXAGON BOLT
