N45MNAM10.01

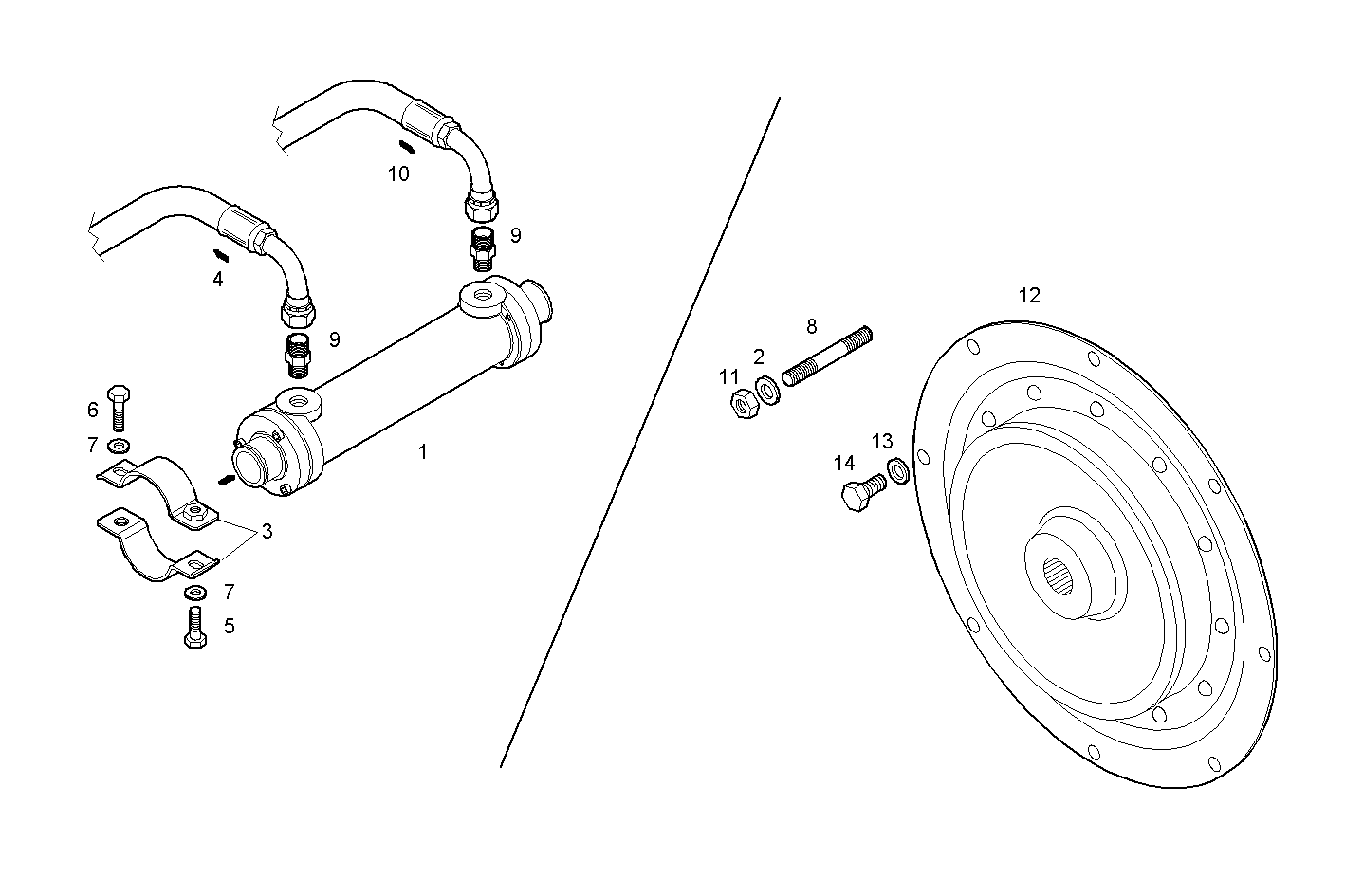

A51270505/01 MARINE GEAR - TM 93A ratio 2.40:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 8039731 | CLIP |
| 4 | 4935779 | HOSE |
| 5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 6 | 16605724 | SCREW M8X1,25X30 |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 17368024 | STUD M10X25X30 |
| 9 | 8101073 | PIPE SOCKET |
| 10 | 8105620 | HOSE |
| 11 | 17038131 | HEXAGON NUT M10 |
| 12 | 8005350 | FLEXPLATE |
| 13 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 14 | 15970524 | HEXAGON BOLT M10X1,25X20 |
