N45MNSE00.00A002

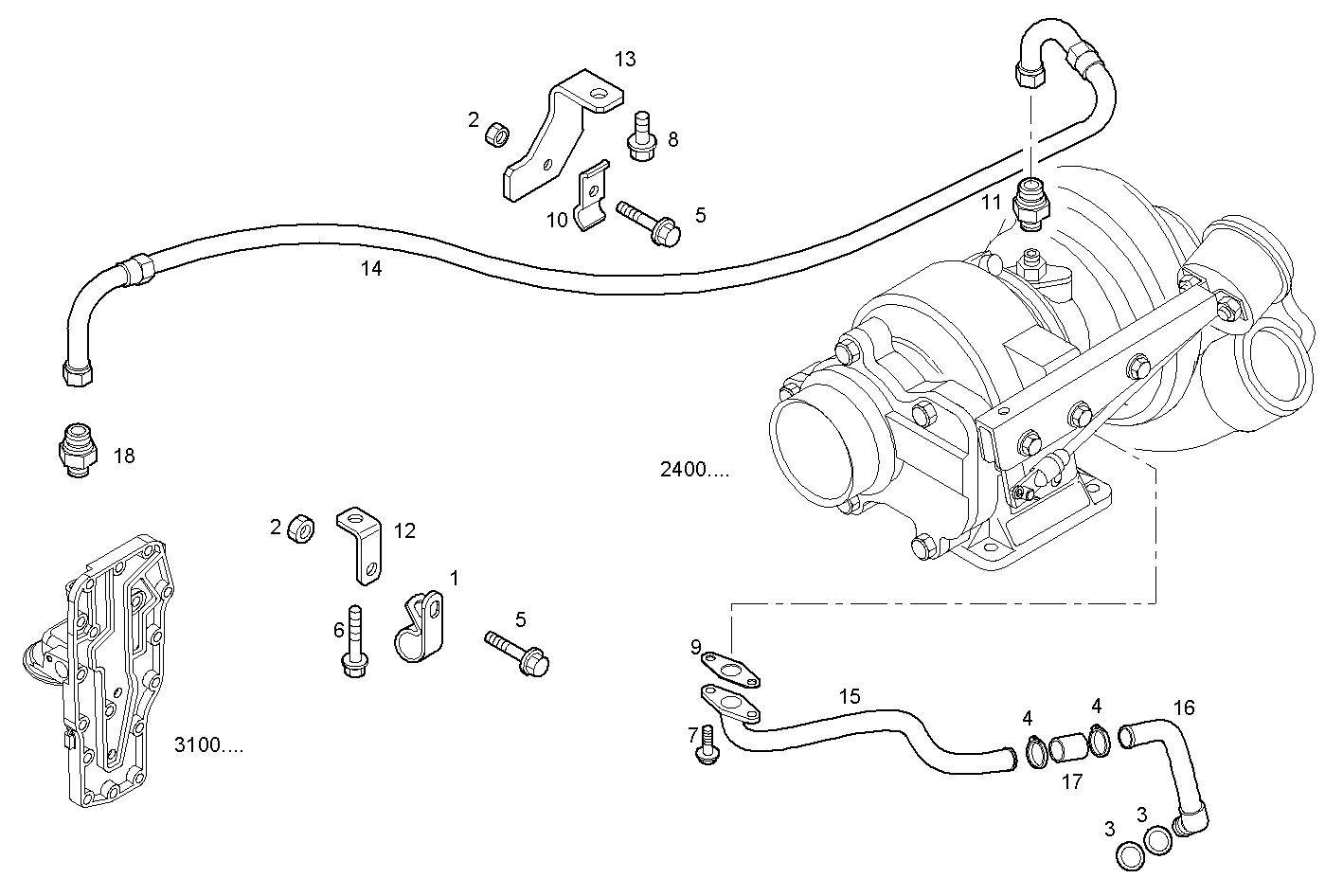

3010.223 LUBE OIL LINES
| Item |
Part number |
Description |
|
1 |
4899519 |
BRACKET |
|
2 |
17044625 |
HEXAGON NUT M6 |
|
3 |
17281881 |
O-RING DIA 17,12 SP 2,62 |
|
4 |
18088393 |
CLIP Ø16/25 MM |
|
5 |
18137825 |
HEXAGON BOLT M6X16 |
|
6 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
7 |
4895164 |
HEXAGON BOLT |
|
8 |
16677735 |
HEXAGON BOLT M12X25 MM |
|
9 |
4899467 |
FLAT ENGINE GASKET |
|
10 |
98487328 |
FASTENING BRACKET |
|
11 |
504010815 |
THREADED UNION |
|
12 |
504053894 |
FASTENING BRACKET |
|
13 |
504055059 |
FASTENING BRACKET |
|
14 |
504075228 |
OIL LINE INLET |
|
15 |
8038588 |
OIL LINE |
|
16 |
8038590 |
OIL LINE |
|
17 |
8109346 |
RUBBER SLEEVE |
|
18 |
4899106 |
PIPE SOCKET |
