N45MNSF40.10

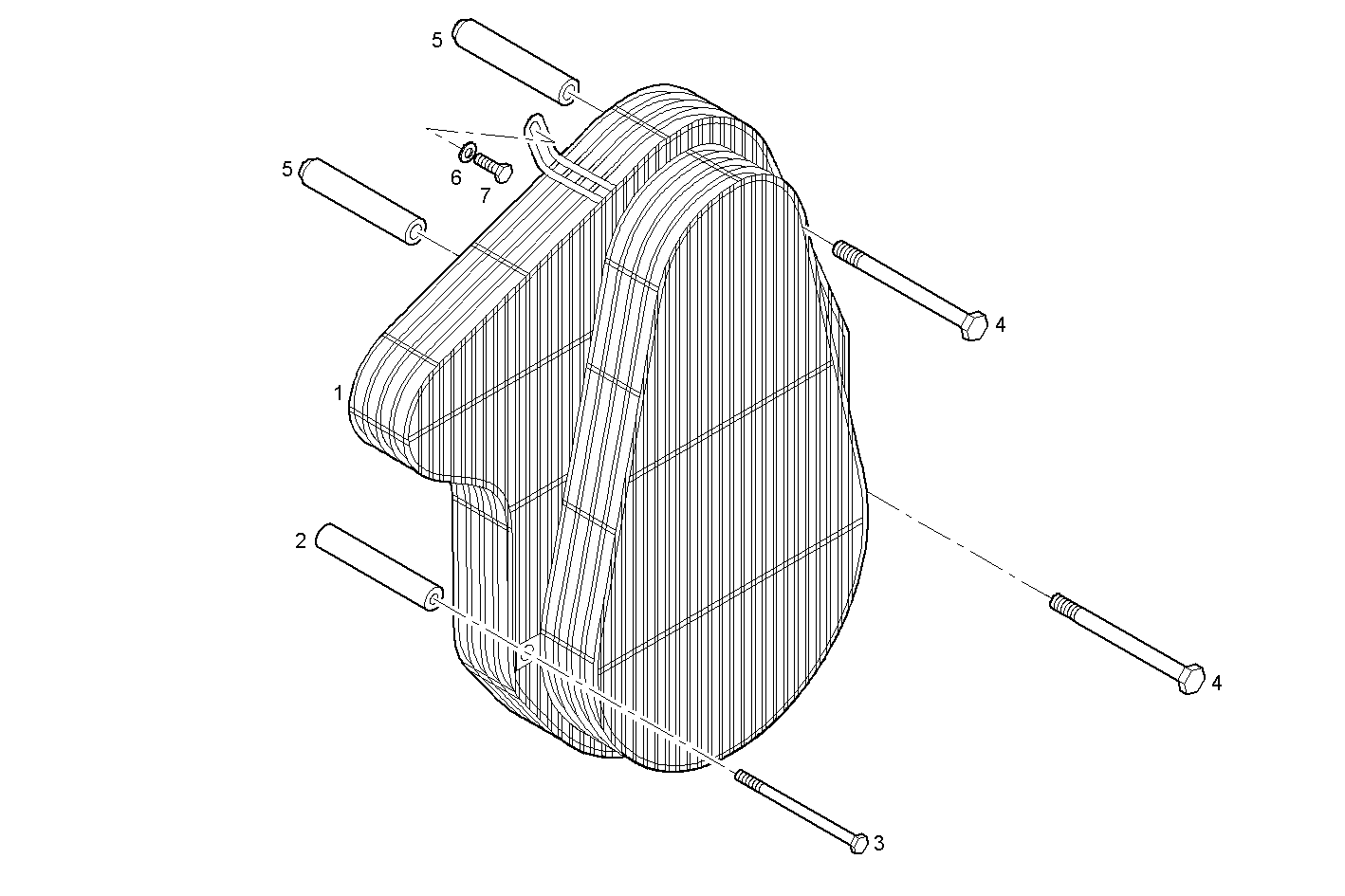

A48020511 SHIELDS - pulley & belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8046563 | PROTECTION |
| 2 | 8046913 | SPACING BAR |
| 3 | 16607324 | HEXAGON BOLT M8X1,25X125 |
| 4 | 16599824 | HEXAGON BOLT M12X1.75X140 MM |
| 5 | 8046912 | SPACING BAR |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
