N45MNSI00.00A002

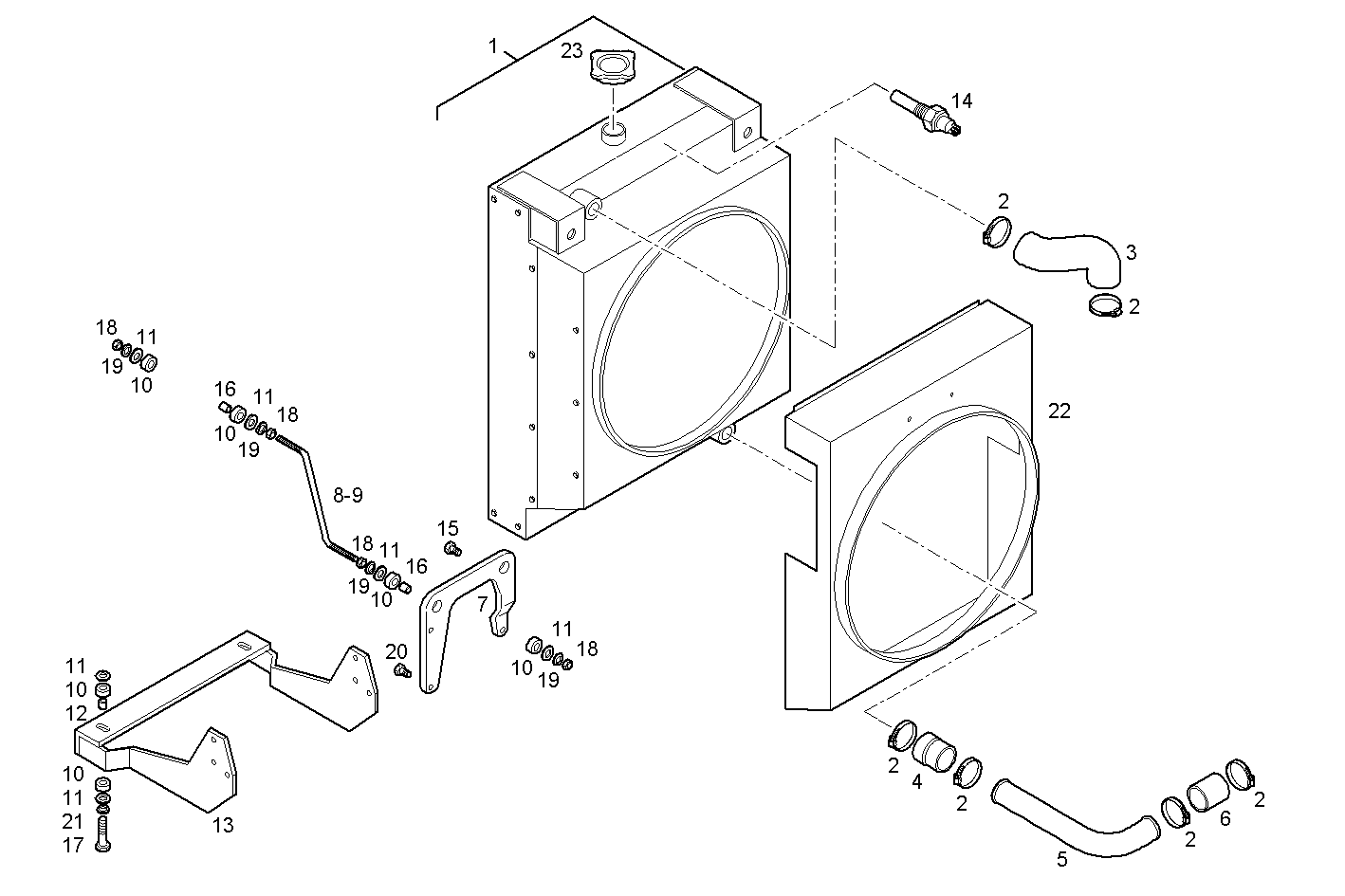

3300.013 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8048895 WATER RADIATOR FOR RADIATOR "IBS"
2 17764892 PIPE CLIP Ø40-60 MM
3 8045294 WATER HOSE
4 8036102 WATER HOSE
5 8041439 WATER PIPE
6 17743887 RUBBER SLEEVE
7 8038584 FASTENING BRACKET
8 8038585 TIE ROD RIGHT
9 8038468 TIE ROD LEFT
10 741569 RUBBER LUG
11 741570 WASHER Ø10X17 MM SP=2,3
12 8108634 SPACING BAR
13 8038464 SUPPORT
14 8006054 TRANSMITTER TBLA
15 16587125 HEXAGON BOLT M10X25 MM
16 741571 SPACING BAR Ø10X17 MM SP=2,3
17 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
18 17038425 HEXAGON NUT M12 (8)
19 17091074 WASHER Ø12X24X2,8 MM
20 16673735 HEXAGON BOLT M8X25 MM
21 17090274 WASHER Ø10X20 MM
22 8048960 AIR HOOD FOR RADIATOR "IBS"
23 8048144 RADIATOR PLUG FOR RADIATOR "IBS"
