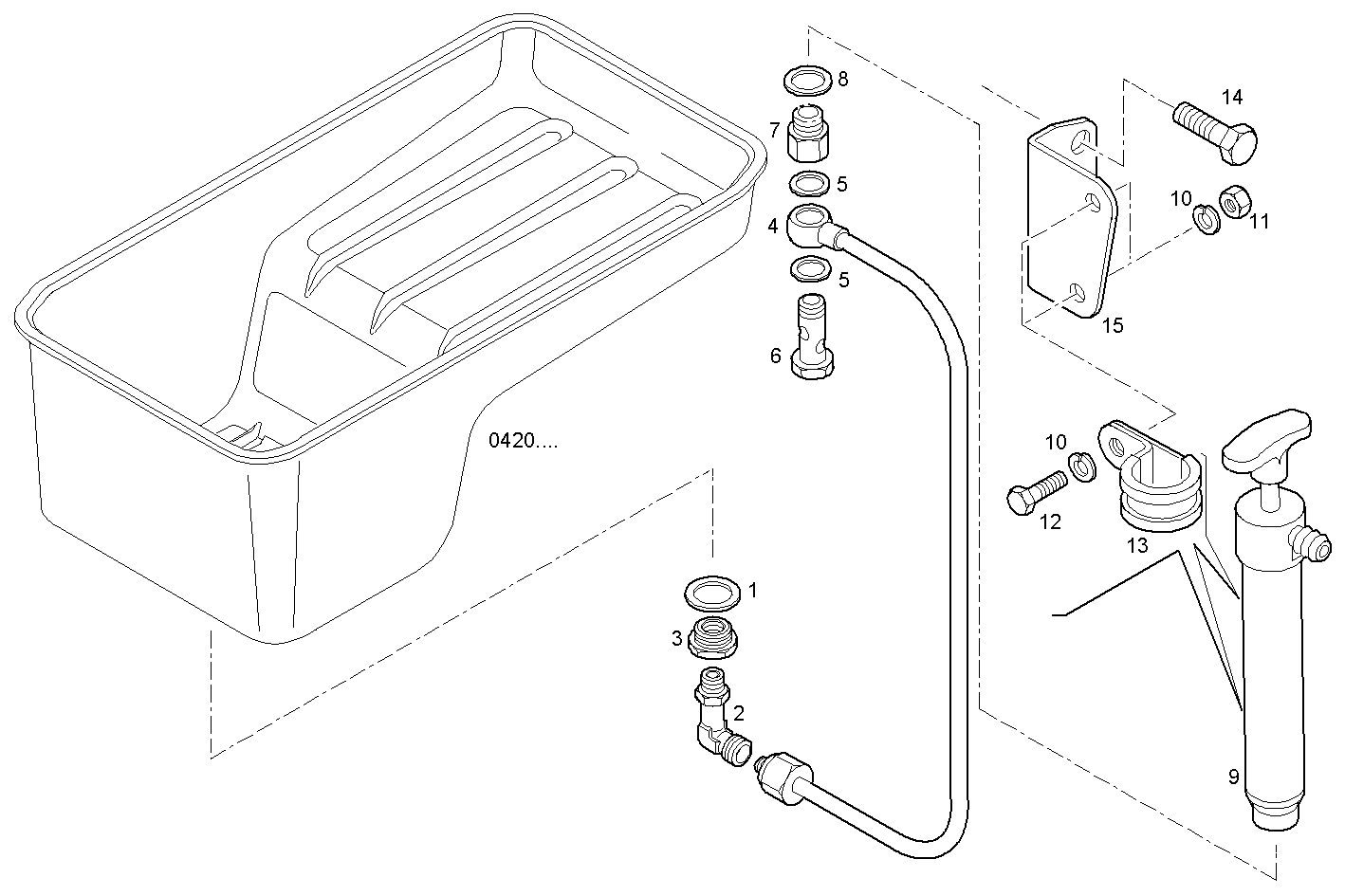

| Item |
Part number |
Description |
|
1 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
2 |
8025927 |
ELBOW COUPLING |
|
3 |
4927760 |
PIPE SOCKET M22X1,5 |
|
4 |
8019051 |
HOSE L=400 MM |
|
5 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
6 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
7 |
4928330 |
PIPE SOCKET M16X1,5/M14X1,5 |
|
8 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
9 |
8019921 |
HAND PUMP |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
17037925 |
HEXAGON NUT M8X1,25 |
|
12 |
16605625 |
HEXAGON BOLT M8X25 |
|
13 |
4928851 |
CLIP |
|
14 |
16677735 |
HEXAGON BOLT M12X25 MM |
|
15 |
8038730 |
FASTENING BRACKET |
