N45MNTD20.00A002

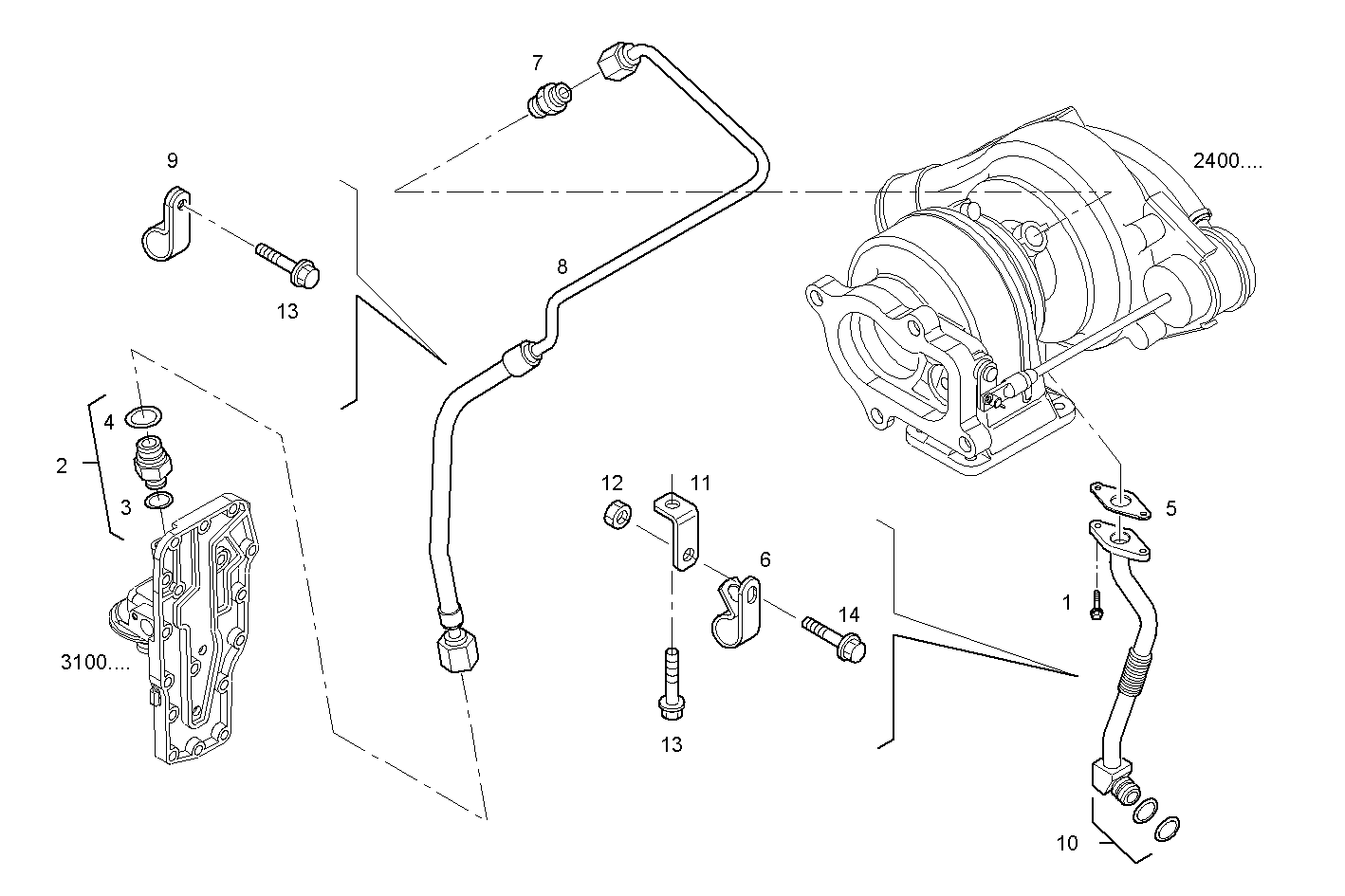

3010.215 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895164 | HEXAGON BOLT |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4899467 | FLAT ENGINE GASKET |
| 6 | 4899519 | BRACKET |
| 7 | 504010815 | THREADED UNION |
| 8 | 504036457 | OIL LINE |
| 9 | 17316399 | FASTENING BRACKET |
| 10 | 504053911 | OIL LINE OUTLET |
| 11 | 504053894 | FASTENING BRACKET |
| 12 | 4899003 | HEXAGON NUT M8 |
| 13 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 14 | 18137825 | HEXAGON BOLT M6X16 |
