N45MNTE20.00

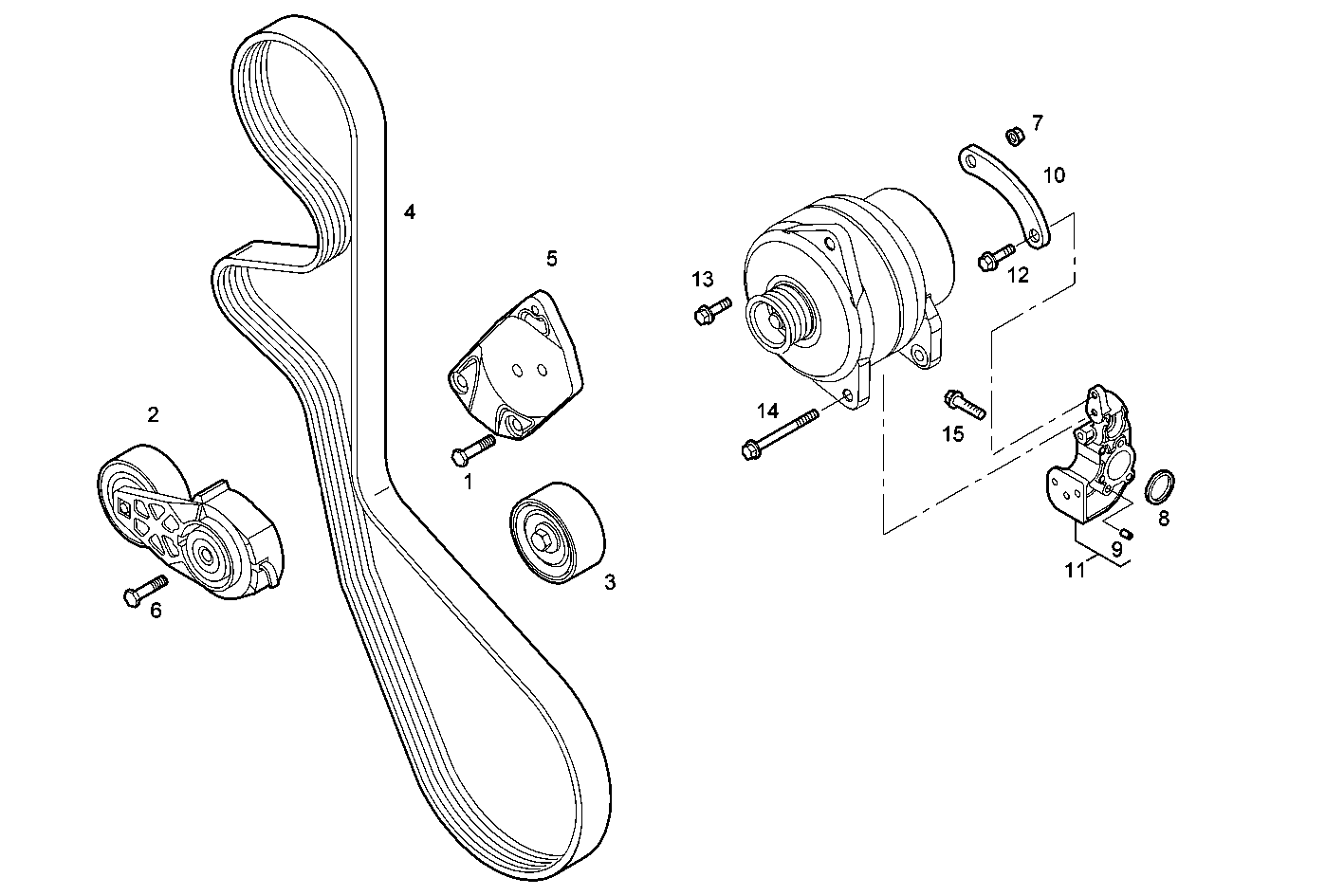

A14080501 BELT STRETCHER
| Item | Part number | Description |
|---|---|---|
| 1 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
| 2 | 504028028 | BELT TENSIONER |
| 3 | 504065880 | PULLEY |
| 4 | 504038672 | V-BELT |
| 5 | 504069572 | BELT TENSION.SUPP |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 4895166 | HEXAGON NUT M10X1,5 |
| 8 | 504062710 | WASHER |
| 9 | 4895576 | DOWEL PIN |
| 10 | 4893840 | RETAINER |
| 11 | 504062633 | GENERATOR SUPPORT ASSY |
| 12 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
| 13 | 4899073 | HEXAGON BOLT |
| 14 | 4899122 | HEXAGON BOLT M10X110 MM |
| 15 | 16599125 | HEXAGON BOLT M10X130 MM |
