N45MNTF40.10

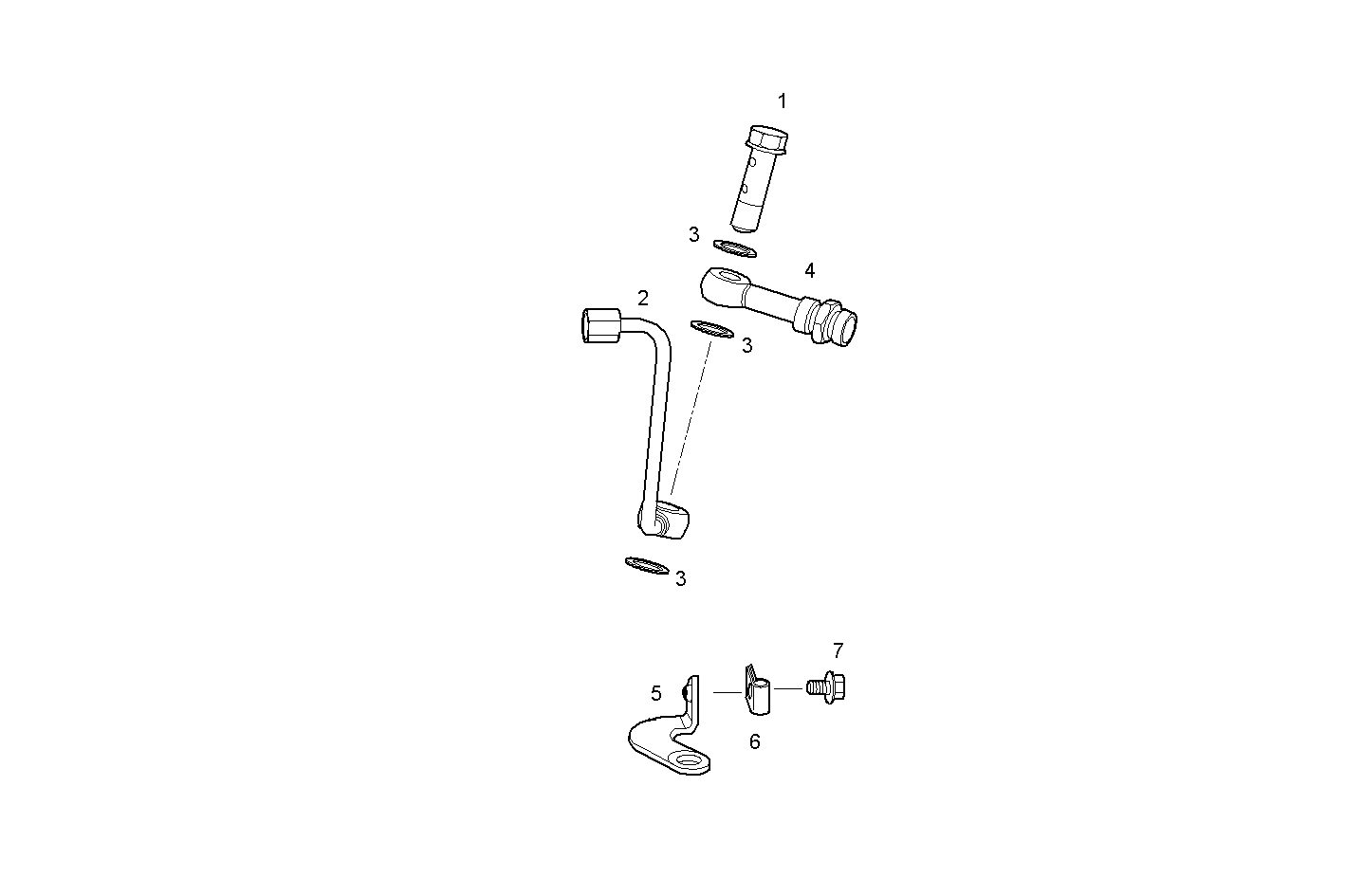

2030.312 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8016191 | BANJO BOLT M12X1,5 |
| 2 | 504148572 | FUEL LINE |
| 3 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 4 | 8029417 | BANJO COUPLING |
| 5 | 504148574 | RETAINER |
| 6 | 17314590 | RETAINER Ø6 MM |
| 7 | 16596924 | HEXAGON BOLT M6X10 MM |
