N45MNTF40.10

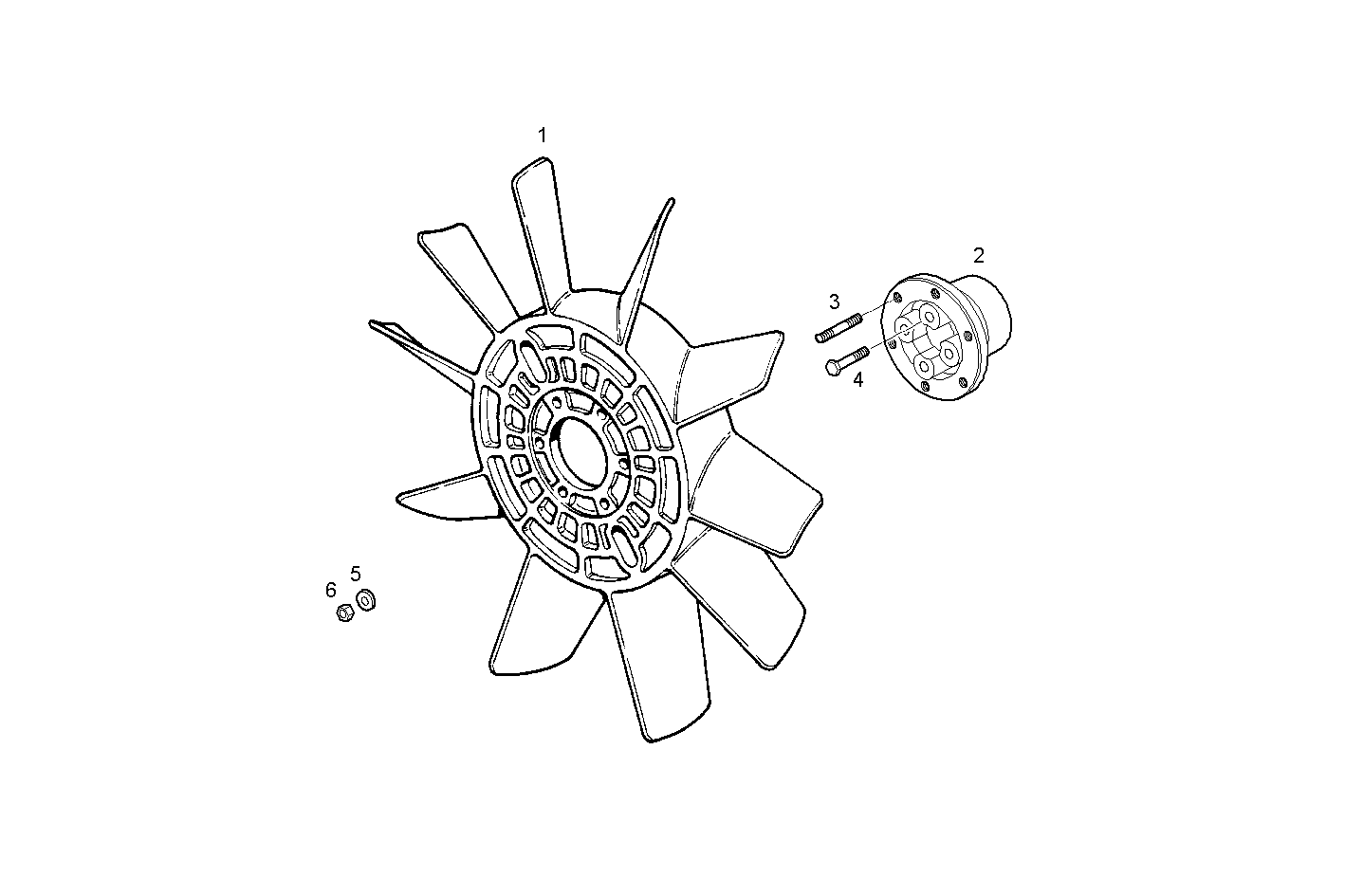

A08000514 PULLER FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8043552 | FAN |
| 2 | 8031725 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 16592724 | HEXAGON BOLT M10X65 MM |
| 5 | 16665604 | WASHER Ø10X20 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
