N45MNTF41.01

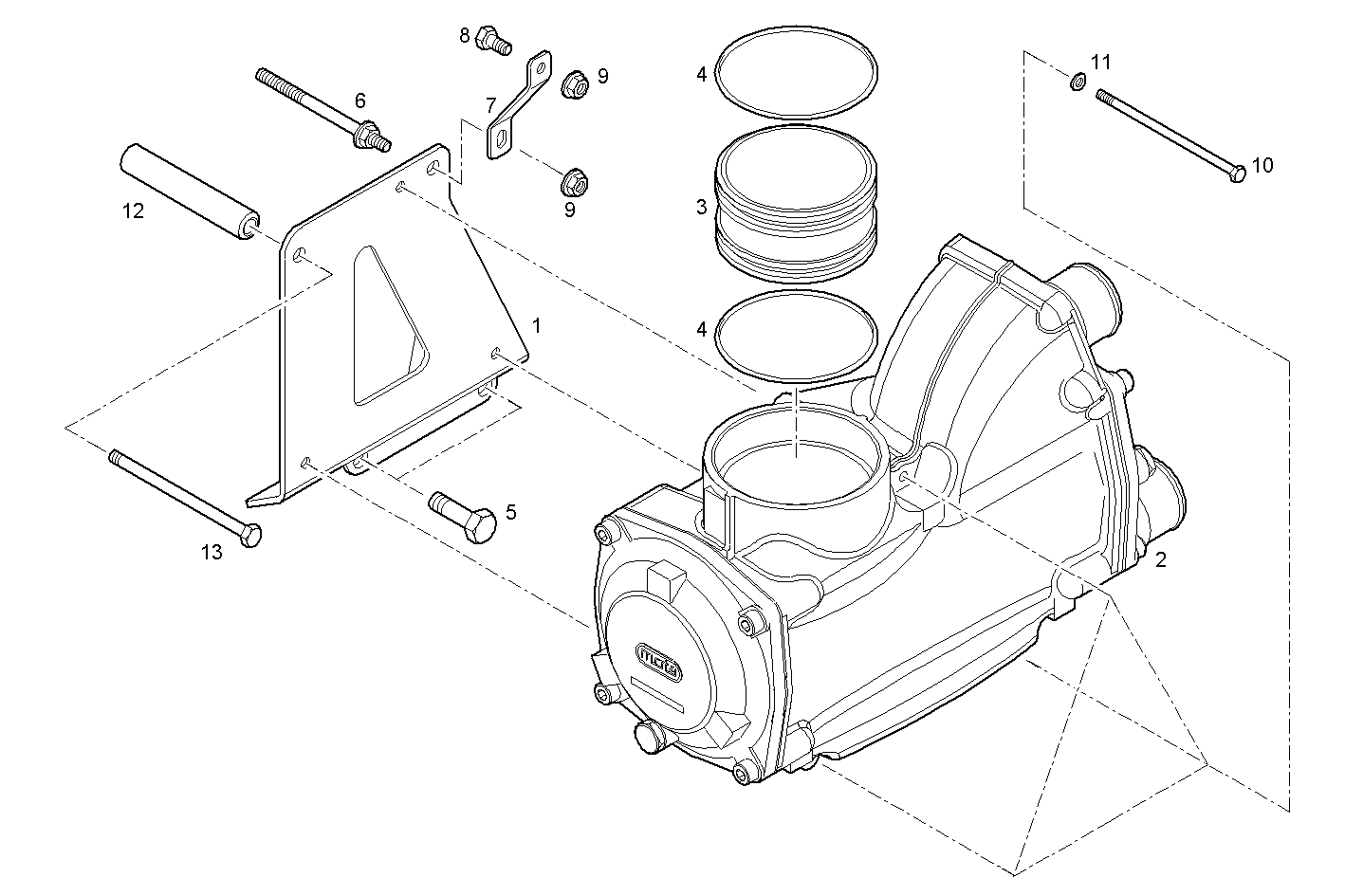

2460.053 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8046735 | SUPPORT |
| 2 | 8036076 | AIR/WATER HEAT EXCHANGER ASSY |
| 3 | 8031755 | WATER PIPE |
| 4 | 17297081 | O-RING Ø88,26X5,33 MM |
| 5 | 16677735 | HEXAGON BOLT M12X25 MM |
| 6 | 4895219 | STUD |
| 7 | 8048251 | FASTENING BRACKET |
| 8 | 16587125 | HEXAGON BOLT M10X25 MM |
| 9 | 17044825 | HEXAGON NUT M10 |
| 10 | 16045521 | HEXAGON BOLT M8X115 MM |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 8046739 | SPACING BAR |
| 13 | 16599025 | SCREW M10X120 MM |
