N45MNTF41.01

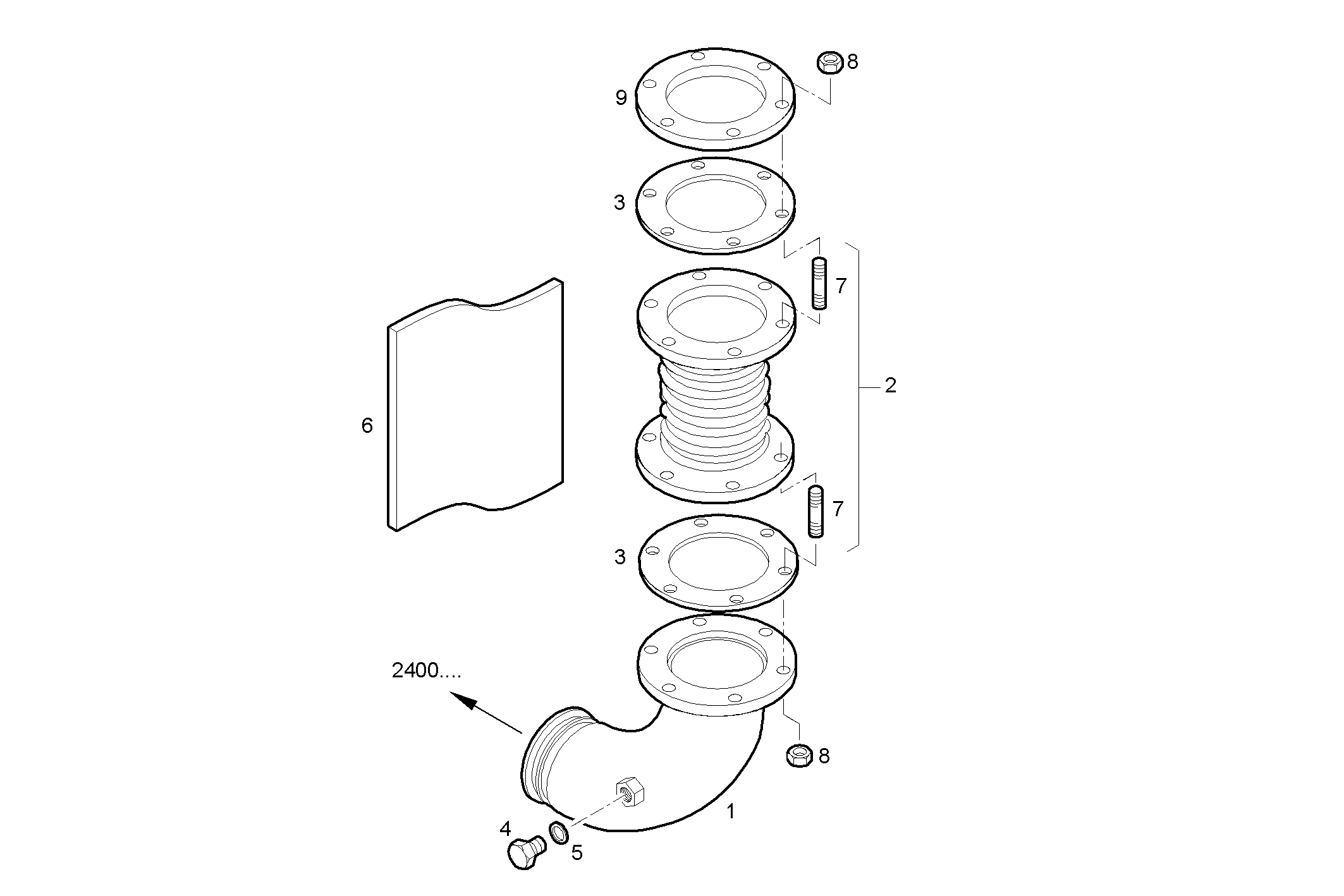

A40030523 UPWARD FRONT EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8033835 | EXHAUST ELBOW |
| 2 | 8010252 | EXHAUST BELLOWS ASSY |
| 3 | 8009606 | GASKET |
| 4 | 16992211 | THREADED PLUG M12X1,5 |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 8041811 | PROTECTION |
| 7 | 13516921 | STUD M8X12X22 MM |
| 8 | 17044725 | HEXAGON NUT M8 |
| 9 | 4919183 | FLANGE |
