N45MNTX26.00A001

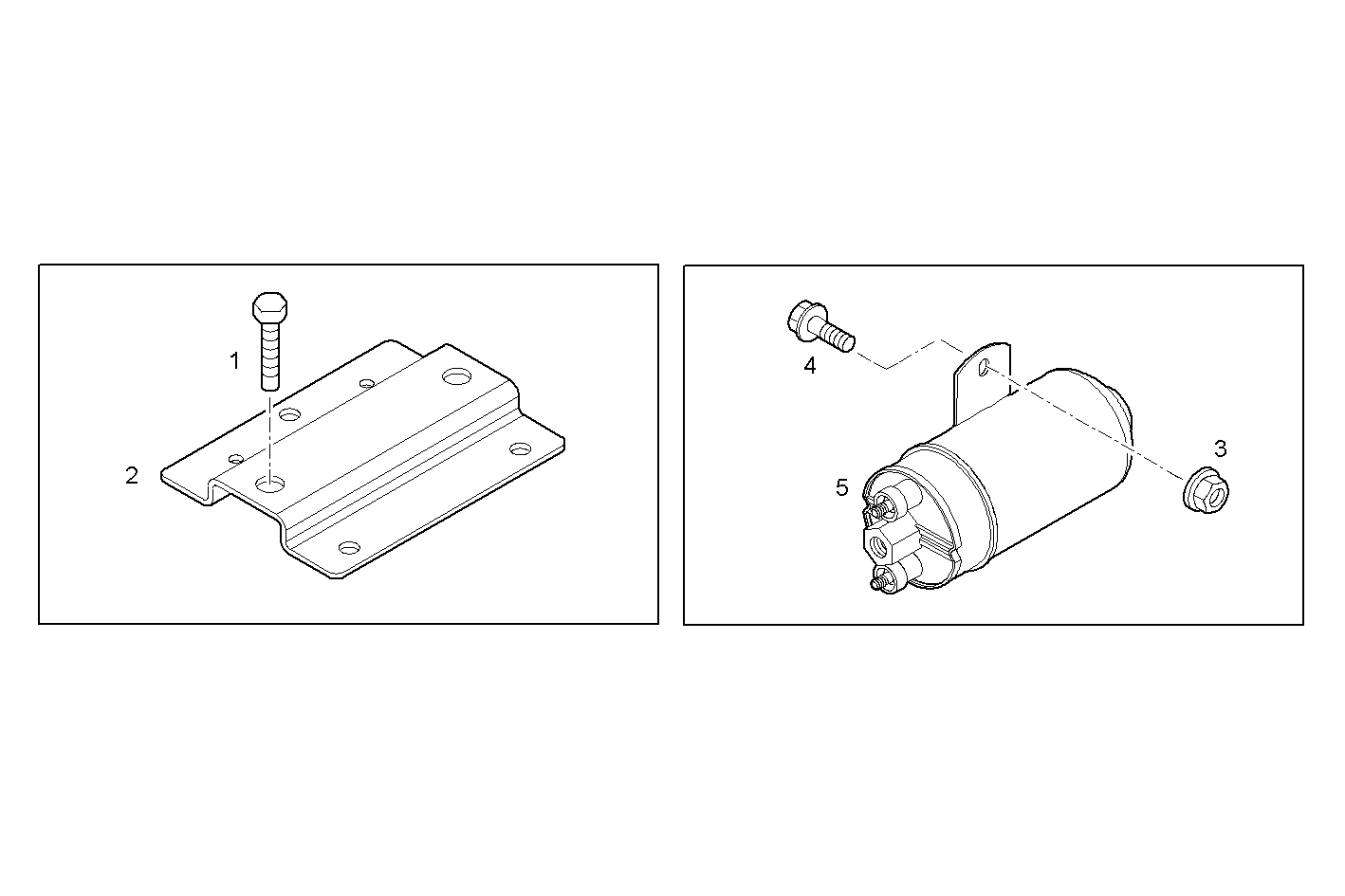

8328.012 ELECTRIC WIRING
| Item | Part number | Description |
|---|---|---|
| 1 | 16677735 | HEXAGON BOLT M12X25 MM |
| 2 | 8040605 | SUPPORT |
| 3 | 17044725 | HEXAGON NUT M8 |
| 4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 5 | 504287310 | RELAY 24v-150a |
