N45MSAE00.10A001

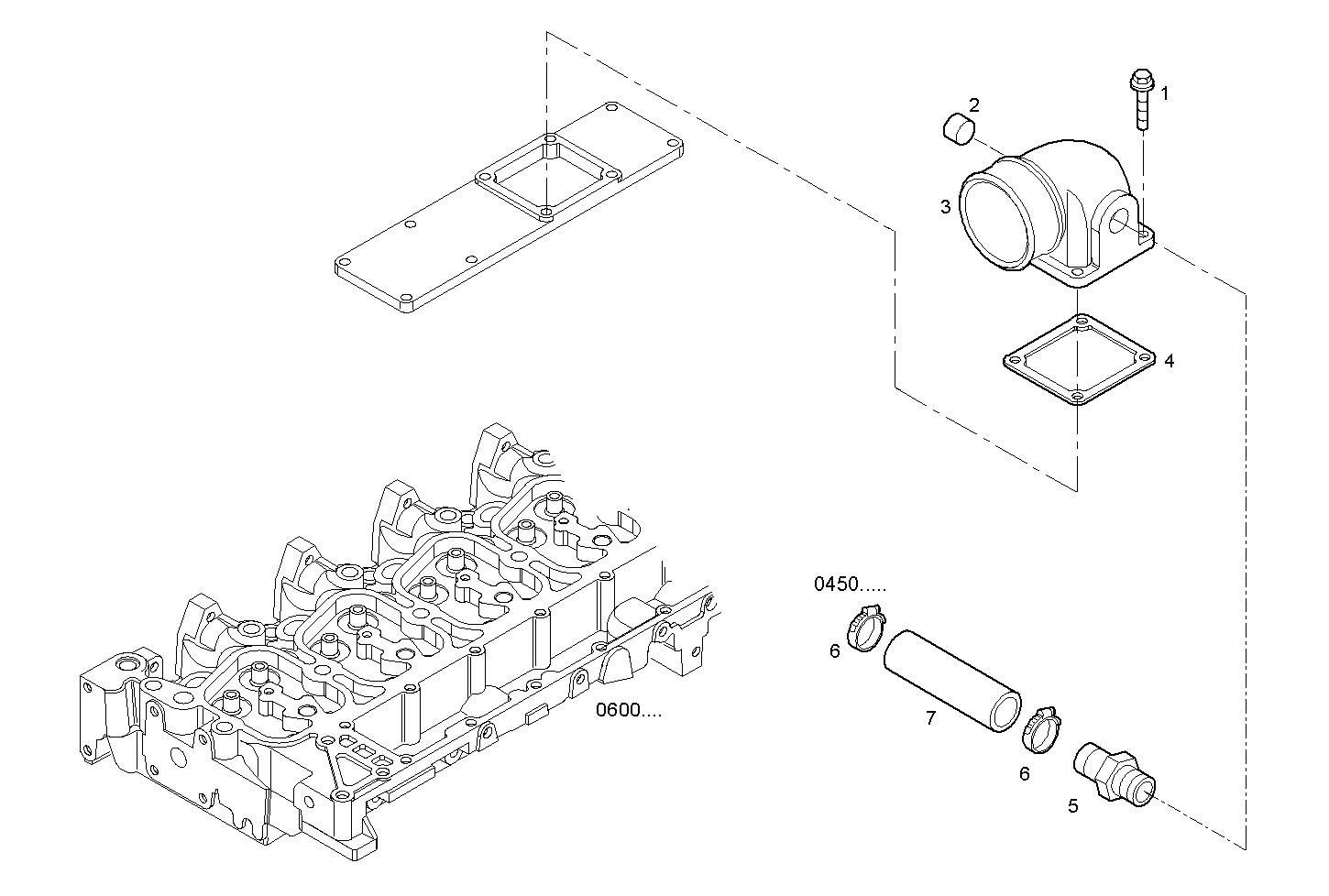

0715.010 ENGINE AIR INTAKE
| Item | Part number | Description |
|---|---|---|
| 1 | 16592625 | HEXAGON BOLT M8X80 MM |
| 2 | 4895079 | THREADED PLUG |
| 3 | 4895424 | INTAKE ELBOW |
| 4 | 4899921 | FLAT ENGINE GASKET |
| 5 | 60181655 | PIPE SOCKET |
| 6 | 18088493 | CLIP |
| 7 | 504103318 | RUBBER SLEEVE |
