N45MSAE00.10A001

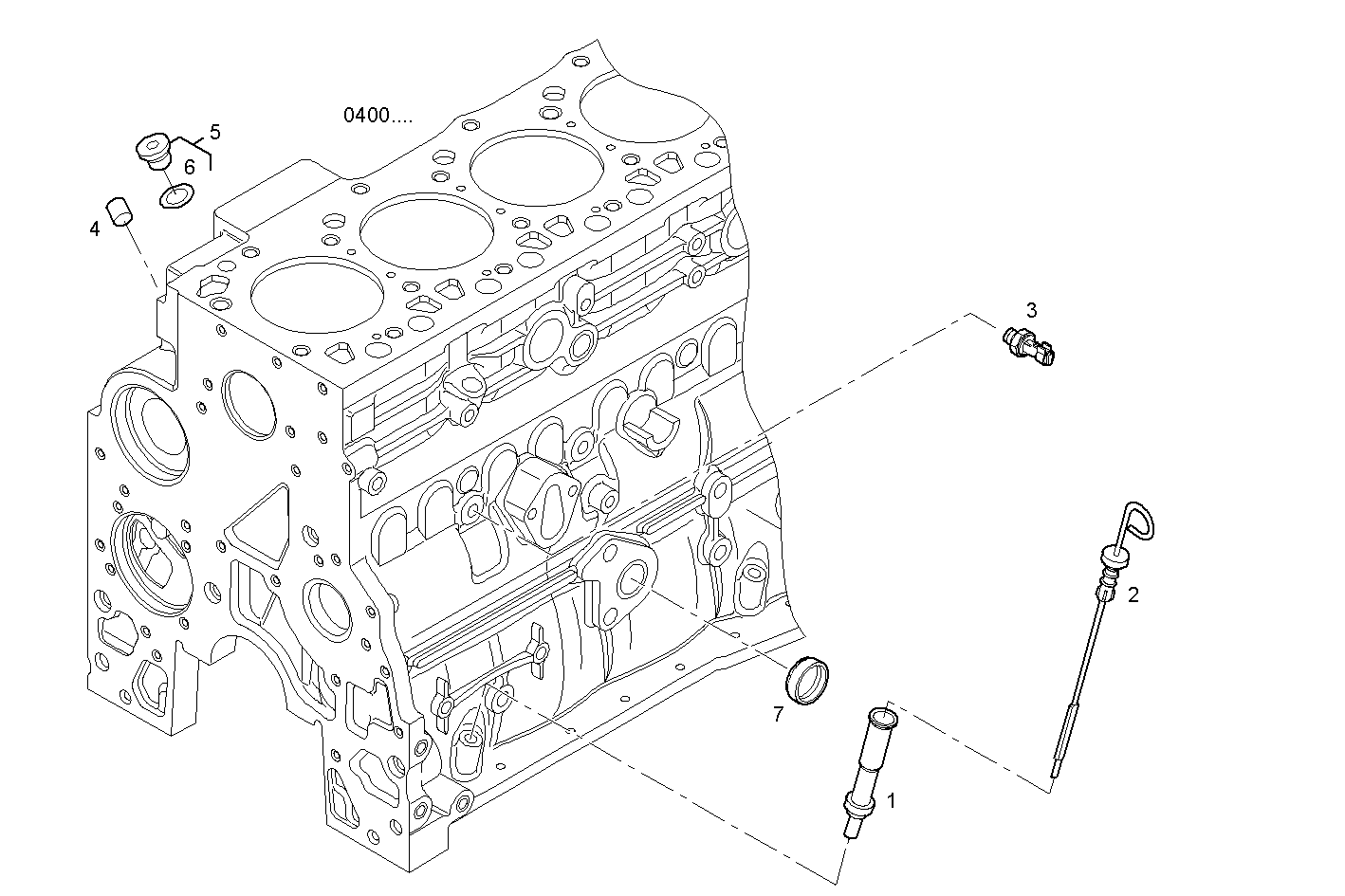

2710.180 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 504011329 | OIL LEVEL TUBE |
| 2 | 504062795 | OIL DIPSTICK ASSY |
| 3 | 504084983 | PRESSURE SWITCH |
| 4 | 4899036 | PLUG |
| 5 | 4897330 | PLUG ASSY M12X1,5 |
| 6 | 4895610 | O-RING |
| 7 | 4895037 | PLUG |
