N45MSAE00.10A001

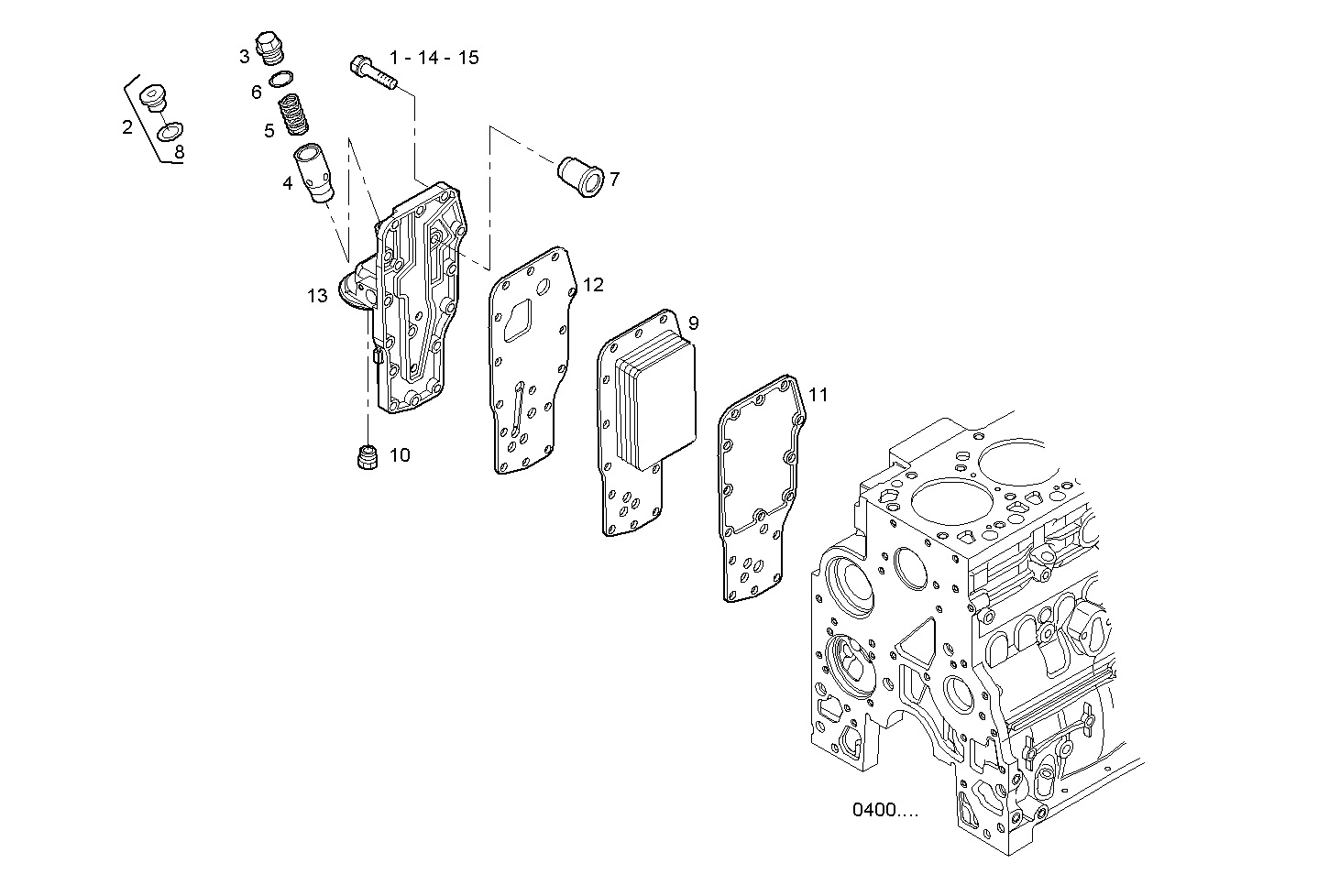

3100.135 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4899019 | HEXAGON BOLT M8X35 MM |
| 2 | 504096409 | THREADED PLUG ASSY [FROM # 155900] |
| 3 | 4895043 | THREADED PLUG |
| 4 | 4896404 | VALVE HOUSING |
| 5 | 4895045 | VALVE SPRING |
| 6 | 4899035 | O-RING |
| 7 | 4896410 | VALVE |
| 8 | 17916280 | O-RING [FROM # 155900] |
| 9 | 4896407 | OIL COOLER |
| 10 | 4893391 | THREADED UNION |
| 11 | 2830559 | FLAT ENGINE GASKET |
| 12 | 2830724 | FLAT ENGINE GASKET |
| 13 | 504078348 | HEAT EXANGER BODY |
| 14 | 4899041 | HEXAGON BOLT |
| 15 | 16598324 | HEXAGON BOLT M8X100 MM |
