N45MSAE00.10A001

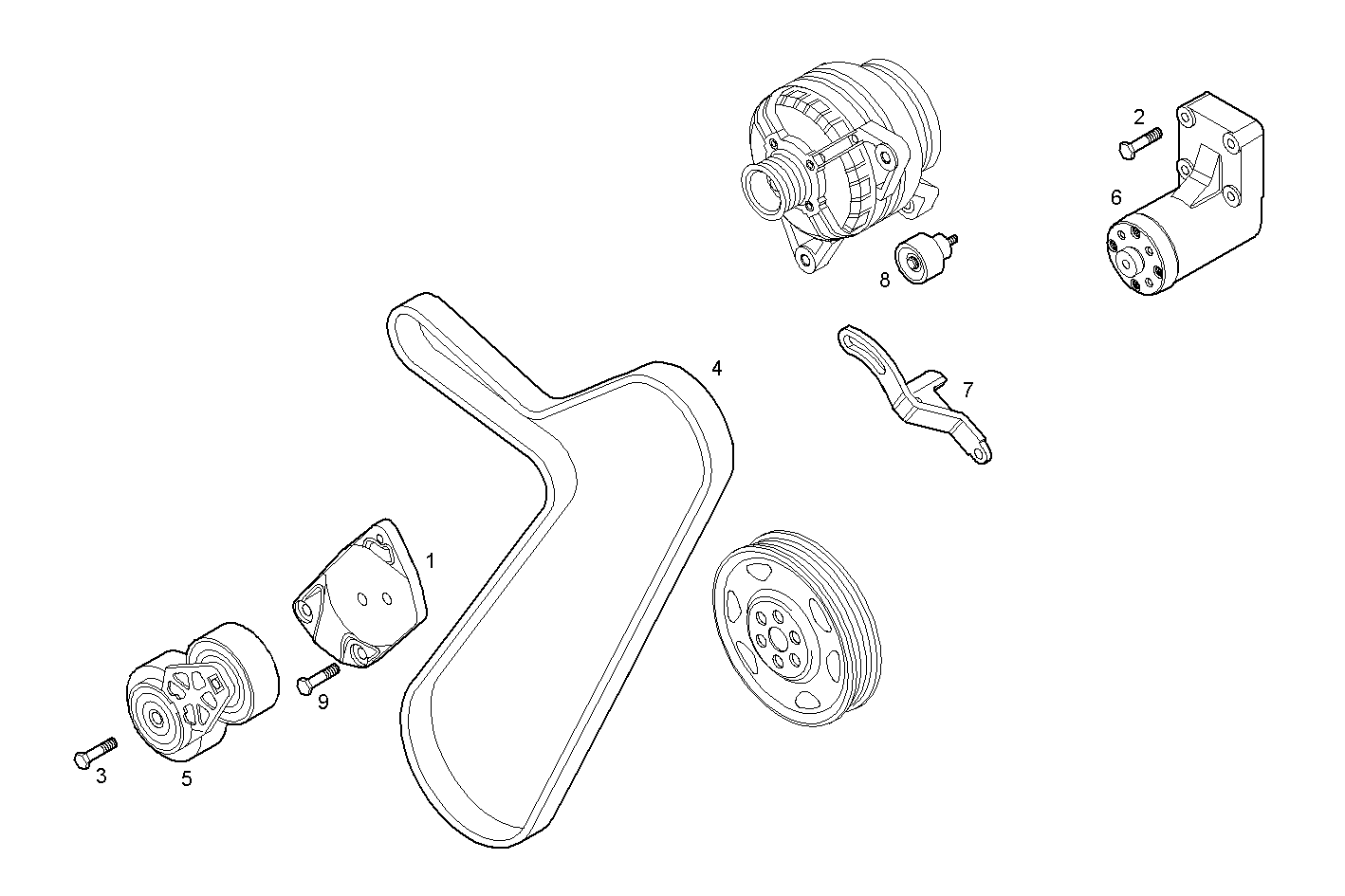

3400.013 WATER PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504009871 | BELT TENSIONER |
| 2 | 4899053 | HEXAGON BOLT |
| 3 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 4 | 504013617 | WATER PUMP BELT |
| 5 | 504028028 | BELT TENSIONER |
| 6 | 504035148 | SUPPORT ASSY |
| 7 | 504064340 | SUPPORT |
| 8 | 504065880 | PULLEY |
| 9 | 4899031 | HEXAGON BOLT M8X25 MM |
