N45MSAE00.10A001

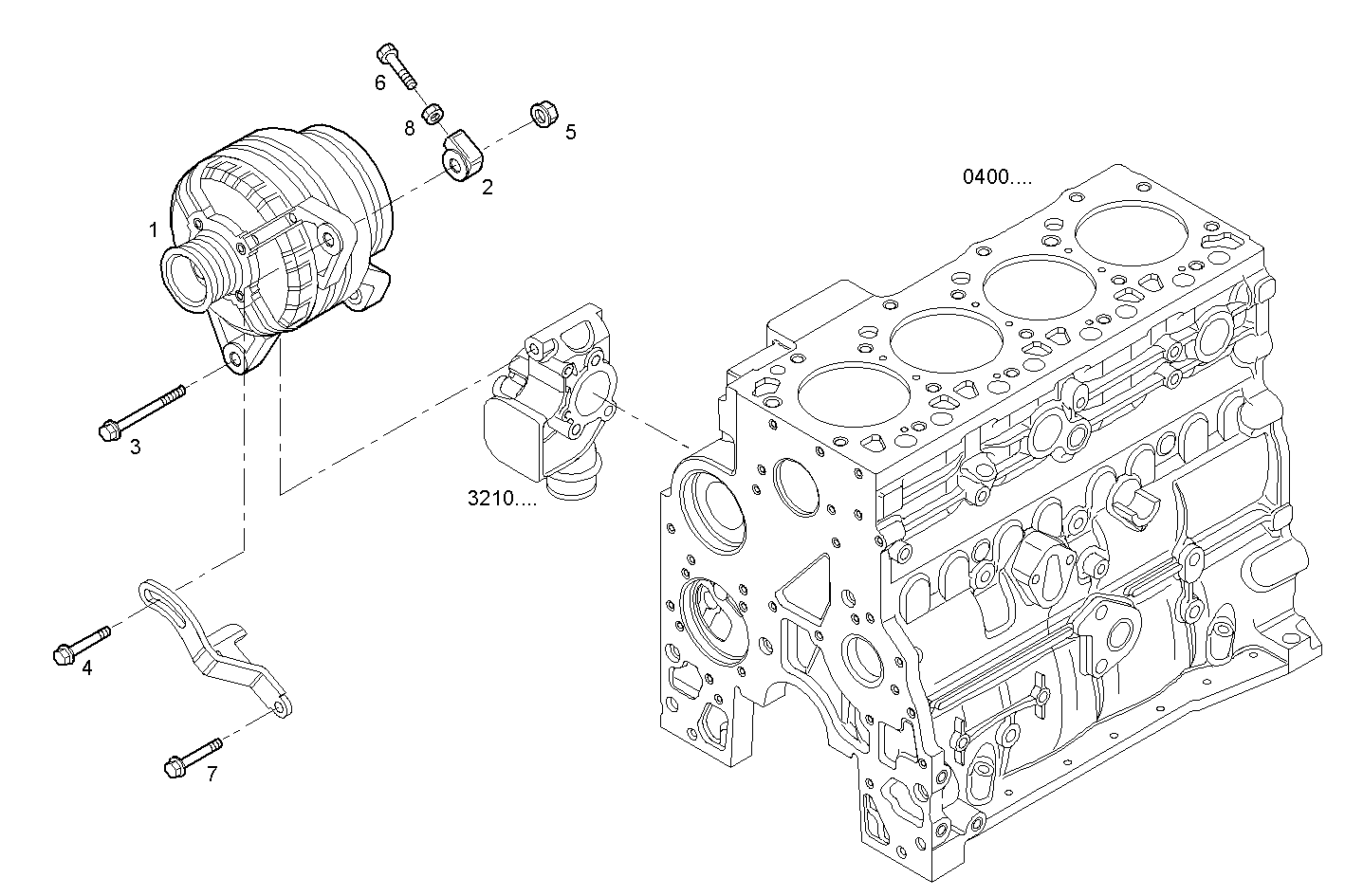

4000.161 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504010576 | ALTERNATOR ASSY |
| 2 | 504010798 | CHOCK |
| 3 | 16599125 | HEXAGON BOLT M10X130 MM |
| 4 | 16587724 | HEXAGON BOLT M10X55 MM |
| 5 | 17044825 | HEXAGON NUT M10 |
| 6 | 15214524 | HEXAGON BOLT M8X100 MM |
| 7 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 8 | 17044725 | HEXAGON NUT M8 |
