N45MSSX00.00L001

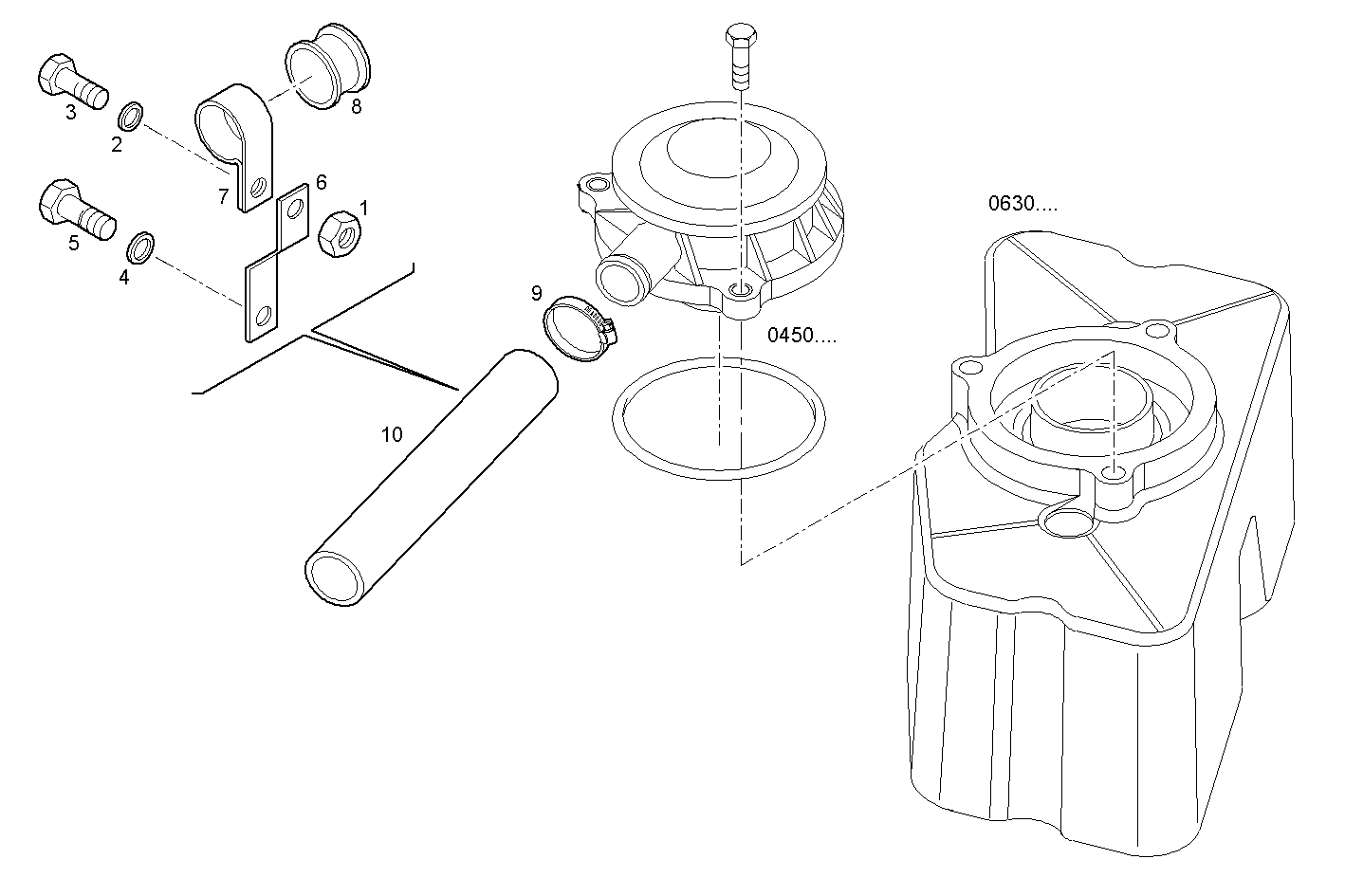

0450.021 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 17037925 | HEXAGON NUT M8X1,25 |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 6 | 8100407 | RETAINER |
| 7 | 4763804 | FASTENING BRACKET |
| 8 | 4757122 | RUBBER PAD |
| 9 | 17764694 | CLIP Ø25/40 MM |
| 10 | 99456557 | RUBBER SLEEVE |
