N45MSSX00.50

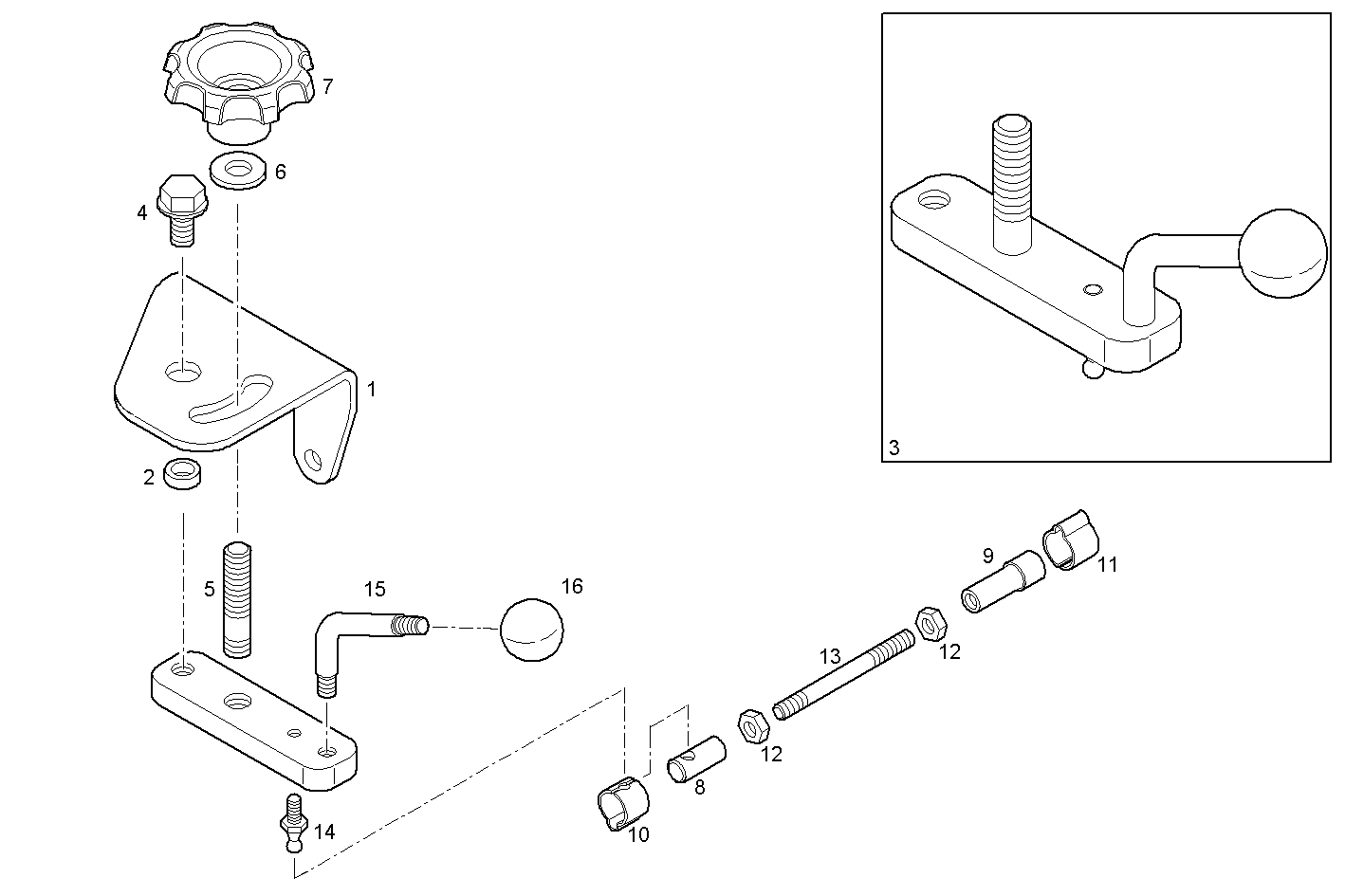

A24020506 HAND ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8050057 | RETAINER |
| 2 | 8043043 | SPACING BAR |
| 3 | 8043044 | LEVER ASSY |
| 4 | 18139424 | HEXAGON BOLT M10X20 MM |
| 5 | 8043659 | STUD |
| 6 | 17095224 | WASHER Ø12X20 MM |
| 7 | 4927042 | HANDWHEEL |
| 8 | 8051047 | BALL JOINT |
| 9 | 17721111 | BALL HEAD |
| 10 | 17722176 | CLIP |
| 11 | 17722074 | CLIP |
| 12 | 16979335 | NUT M6X1 |
| 13 | 4928016 | TIE ROD |
| 14 | 18008411 | PIN M6 |
| 15 | 4927877 | STUD |
| 16 | 4927041 | HANDLE BALL |
