N45MSSX02.50

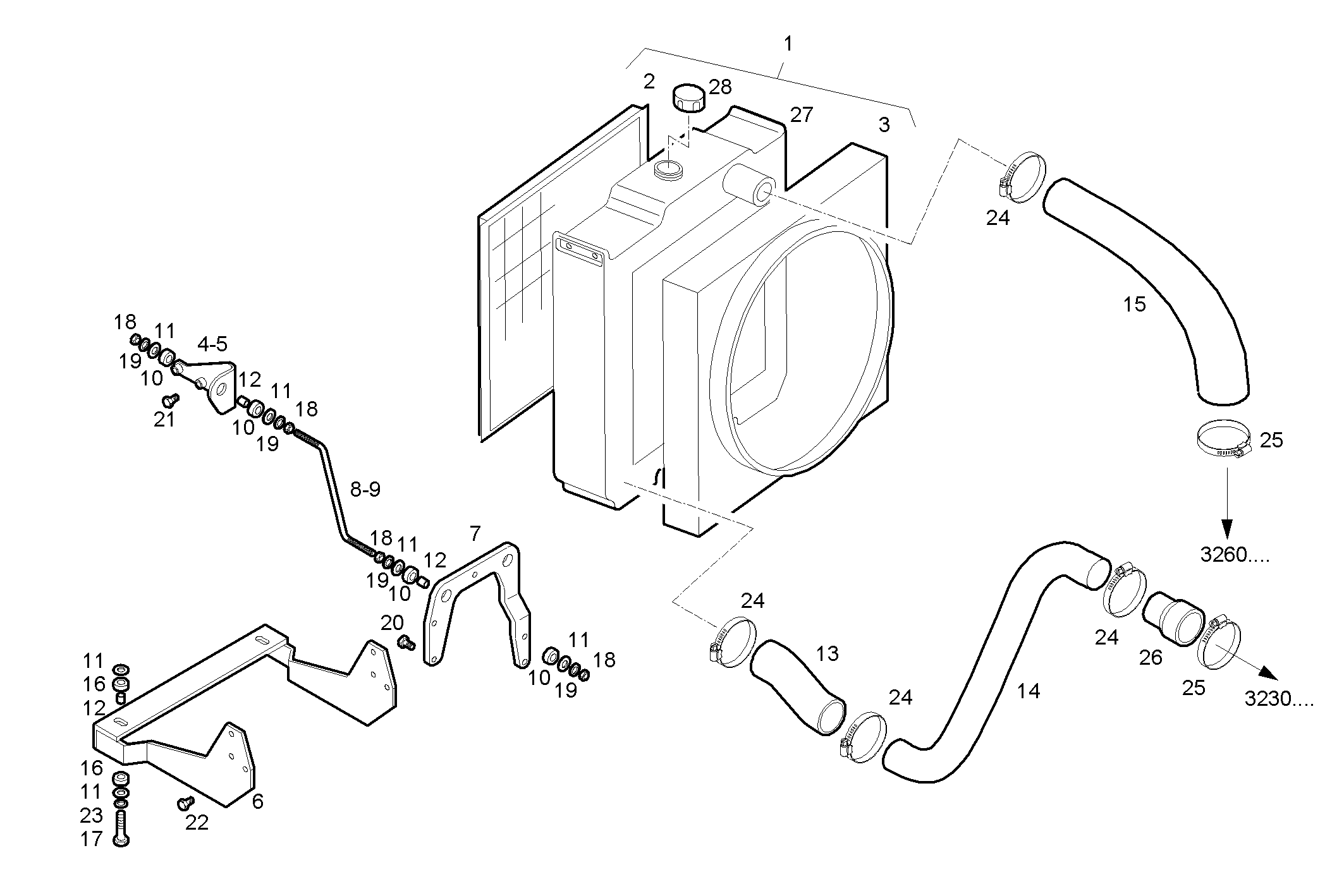

A22010517 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8037596 WATER RADIATOR
2 8037597 PROTECTION [UP TO 31-08-06]
3 8037087 AIR HOOD
4 8037602 FASTENING BRACKET RIGHT
5 8037605 FASTENING BRACKET LEFT
6 8043754 SUPPORT
7 8037607 FASTENING BRACKET
8 8043782 TIE ROD
9 8043783 TIE ROD
10 741569 RUBBER LUG
11 741570 WASHER Ø10X17 MM SP=2,3
12 741571 SPACING BAR Ø10X17 MM SP=2,3
13 8037610 WATER HOSE
14 8043770 WATER PIPE
15 8043763 RUBBER SLEEVE
16 8108634 SPACING BAR
17 504084460 HEXAGON BOLT M10X1,25X70 MM
18 17038425 HEXAGON NUT M12 (8)
19 17091074 WASHER Ø12X24X2,8 MM
20 16673735 HEXAGON BOLT M8X25 MM
21 16600224 HEXAGON BOLT M8X1,25X18 MM
22 16588025 HEXAGON BOLT M12X30 MM
23 17090274 WASHER Ø10X20 MM
24 17764892 PIPE CLIP Ø40-60 MM
25 17764991 CLIP Ø50/70 MM
26 98447313 WATER HOSE Ø45 MM/Ø38 MM
27 8036838 WATER RADIATOR
28 4999682 RADIATOR PLUG
