N45MSSX02.50

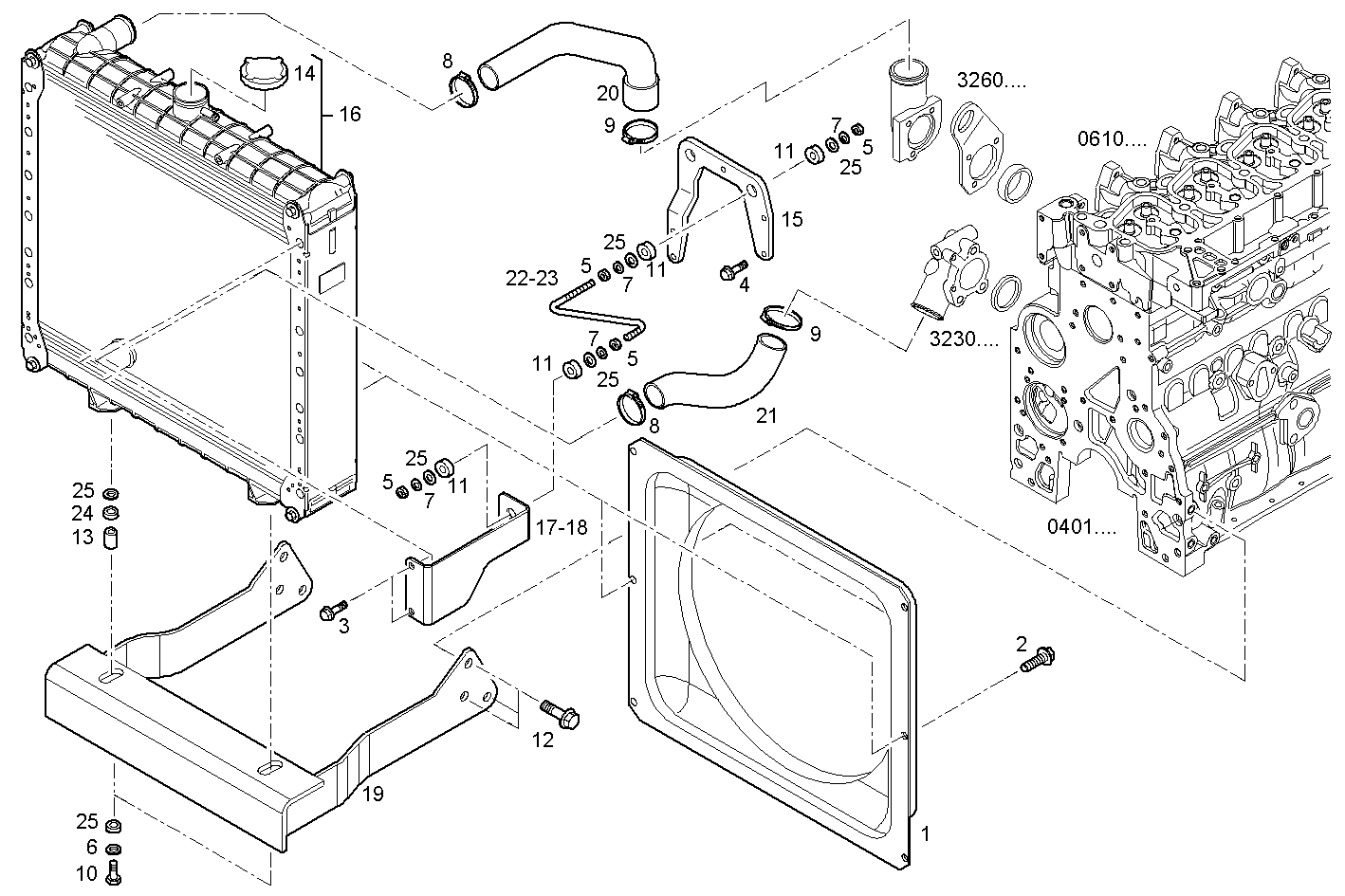

A22010537 RADIATOR [FROM ...] [FROM ...]

Iveco/FPT RADIATOR

Item Part number Description
1 8037087 AIR HOOD
2 16597925 HEXAGON BOLT M8X14 MM
3 16600224 HEXAGON BOLT M8X1,25X18 MM
4 16673735 HEXAGON BOLT M8X25 MM
5 17038425 HEXAGON NUT M12 (8)
6 17090274 WASHER Ø10X20 MM
7 17091074 WASHER Ø12X24X2,8 MM
8 17764892 PIPE CLIP Ø40-60 MM
9 17764991 CLIP Ø50/70 MM
10 504084460 HEXAGON BOLT M10X1,25X70 MM
11 741569 RUBBER LUG
12 16588025 HEXAGON BOLT M12X30 MM
13 741571 SPACING BAR Ø10X17 MM SP=2,3
14 87558952 RADIATOR PLUG
15 8037607 FASTENING BRACKET
16 8049316 WATER RADIATOR ASSY
17 8049381 FASTENING BRACKET
18 8049382 FASTENING BRACKET
19 8051025 SUPPORT
20 8051026 WATER HOSE
21 8051027 WATER HOSE
22 8051441 TIE ROD
23 8051442 TIE ROD
24 8108634 SPACING BAR
25 741570 WASHER Ø10X17 MM SP=2,3
