N45MSTX20.50

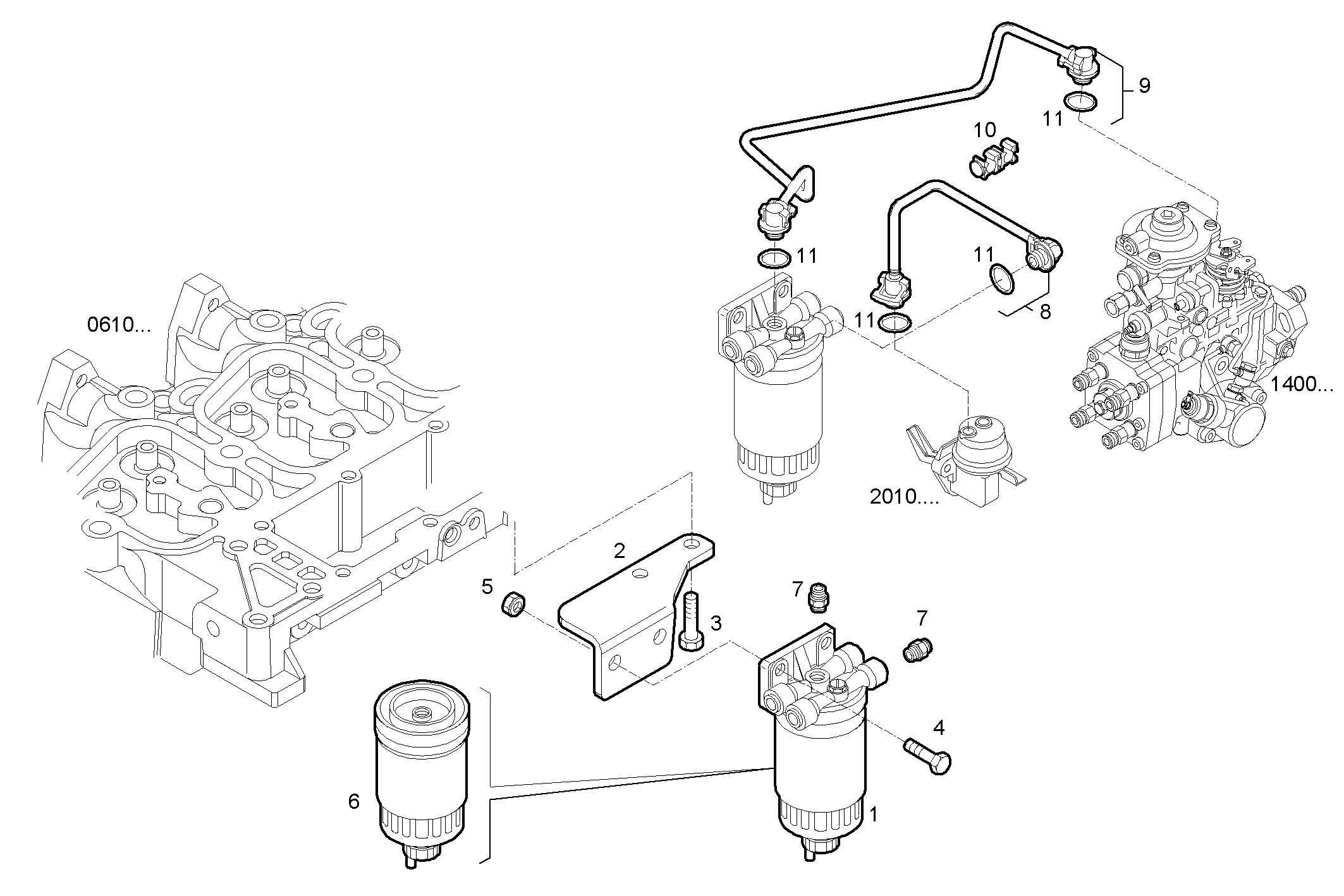

A15000501 SIMPLE FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504068696 | FUEL FILTER ASSY |
| 2 | 504001088 | FUEL FILT.SUPPORT |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 4899093 | HEXAGON BOLT |
| 5 | 4895166 | HEXAGON NUT M10X1,5 |
| 6 | 504073234 | FUEL FILTER ELEM. |
| 7 | 8094525 | PIPE SOCKET |
| 8 | 504025720 | FUEL LINE ASSY |
| 9 | 504057288 | FUEL PIPES ASSY |
| 10 | 504065285 | SPRING CLAMP |
| 11 | 4894095 | O-RING |
