N45MSTX20.50

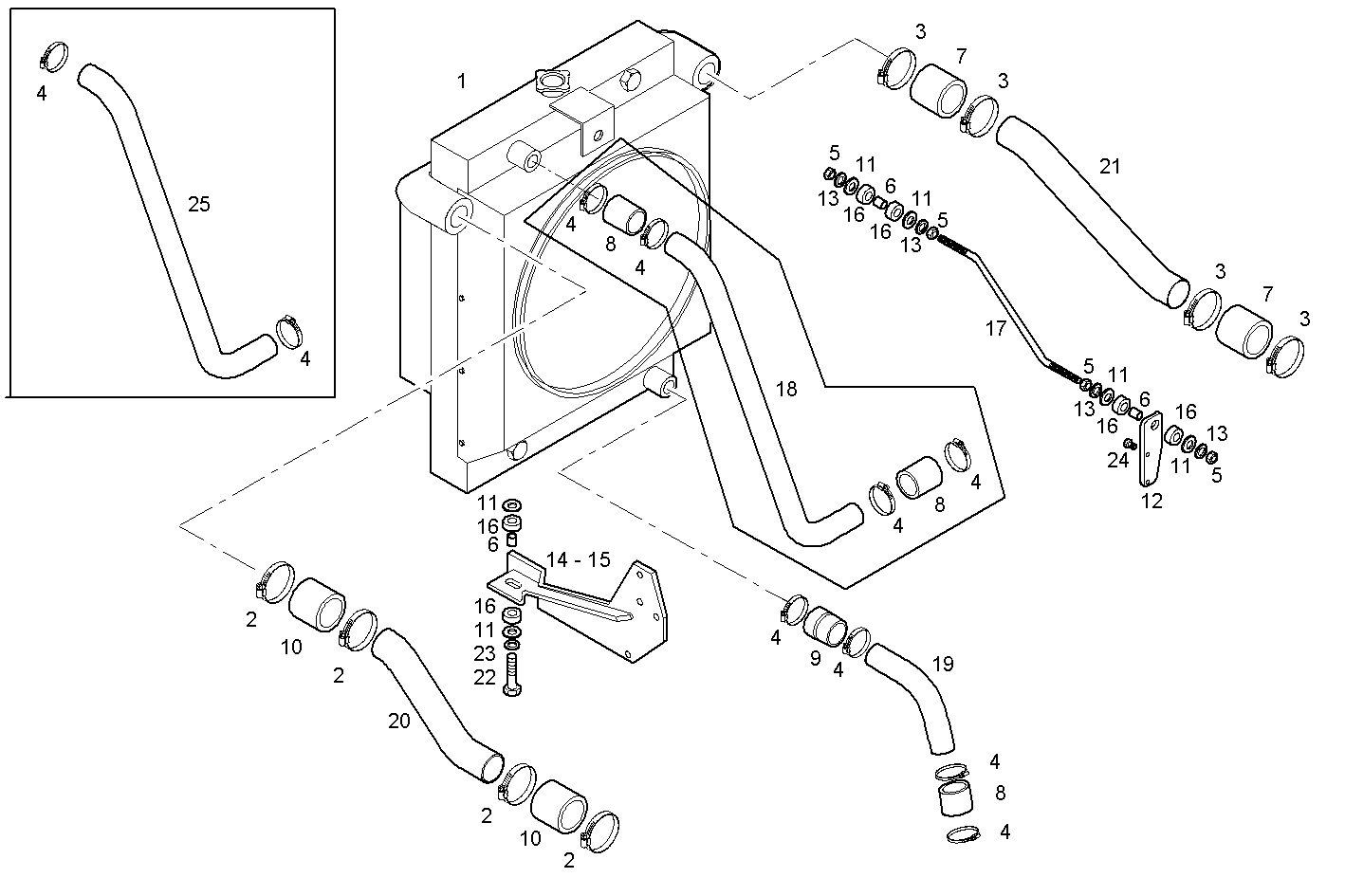

A22010503 RADIATOR 2 CIRCUITS AIR/WATER - puller

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8034774 WATER RADIATOR
2 18089191 CLIP
3 17765191 CLIP Ø70/90 MM
4 17764991 CLIP Ø50/70 MM
5 17038425 HEXAGON NUT M12 (8)
6 741571 SPACING BAR Ø10X17 MM SP=2,3
7 8036376 WATER HOSE
8 4863960 WATER HOSE
9 8036102 WATER HOSE
10 98443275 TURBOCHARGER HOSE
11 741570 WASHER Ø10X17 MM SP=2,3
12 8033610 FASTENING BRACKET
13 17091074 WASHER Ø12X24X2,8 MM
14 8034789 SUPPORT
15 8034790 SUPPORT
16 741569 RUBBER LUG
17 8033596 TIE ROD
18 8033603 WATER PIPE [UP TO 31-05-06]
19 8035801 WATER PIPE
20 8036099 AIR PIPE/DUCT
21 8036101 AIR PIPE/DUCT
22 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
23 17090274 WASHER Ø10X20 MM
24 16586425 HEXAGON BOLT M8X25 MM
25 8045294 WATER HOSE
