N45MSTX20.50

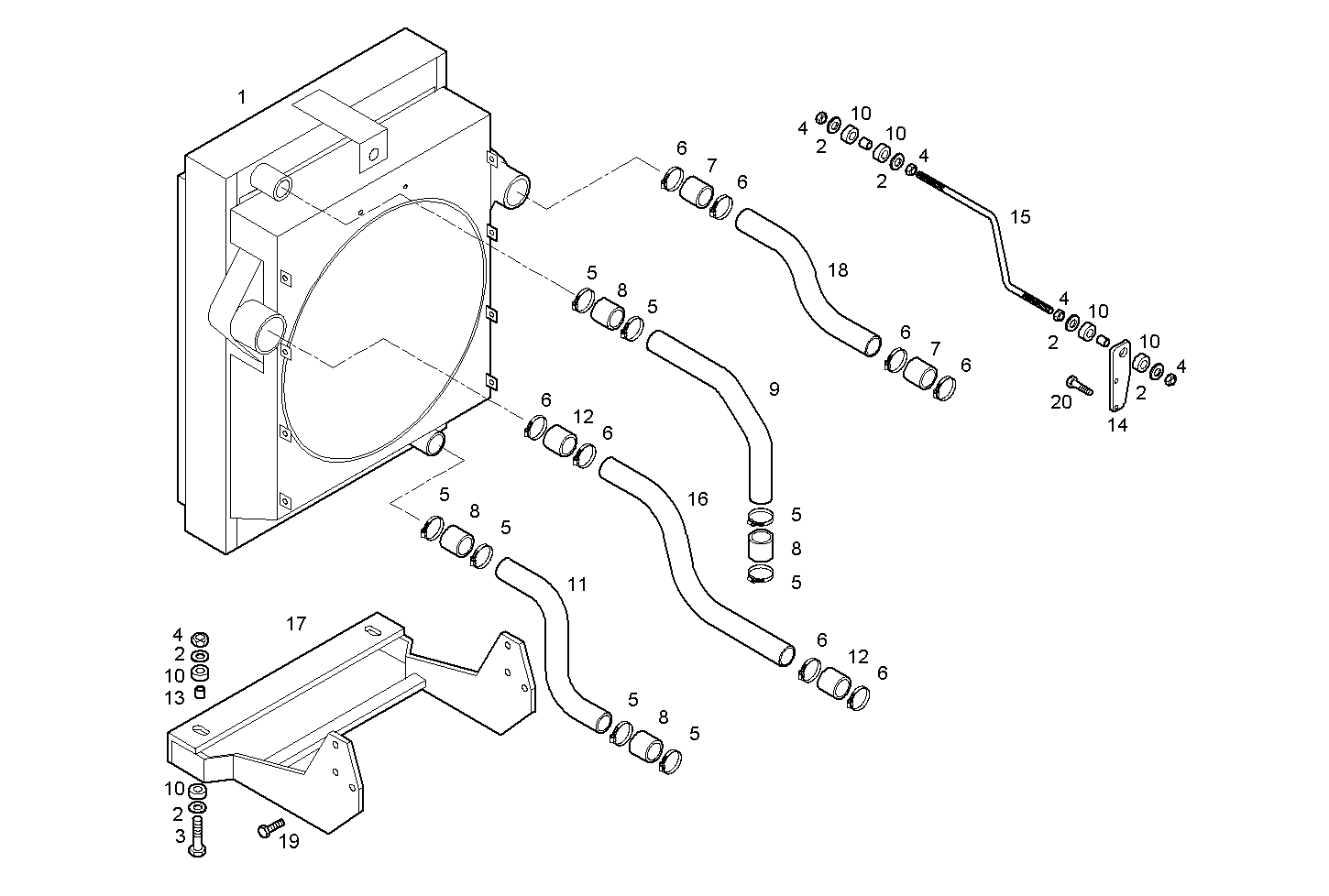

A22010527 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 8046050 | WATER RADIATOR |
| 2 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 3 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 4 | 16750425 | HEXAGON NUT M12 |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 17765192 | HOSE CLIP Ø70-90 MM |
| 7 | 8036376 | WATER HOSE |
| 8 | 4863960 | WATER HOSE |
| 9 | 8047908 | WATER PIPE |
| 10 | 741569 | RUBBER LUG |
| 11 | 8047909 | WATER PIPE |
| 12 | 98443275 | TURBOCHARGER HOSE |
| 13 | 8108634 | SPACING BAR |
| 14 | 8048949 | RETAINER |
| 15 | 8037523 | TIE ROD |
| 16 | 8037761 | AIR PIPE/DUCT |
| 17 | 8037563 | SUPPORT |
| 18 | 8037762 | AIR PIPE/DUCT |
| 19 | 16588025 | HEXAGON BOLT M12X30 MM |
| 20 | 16673735 | HEXAGON BOLT M8X25 MM |
