N45MSTX20.50A010

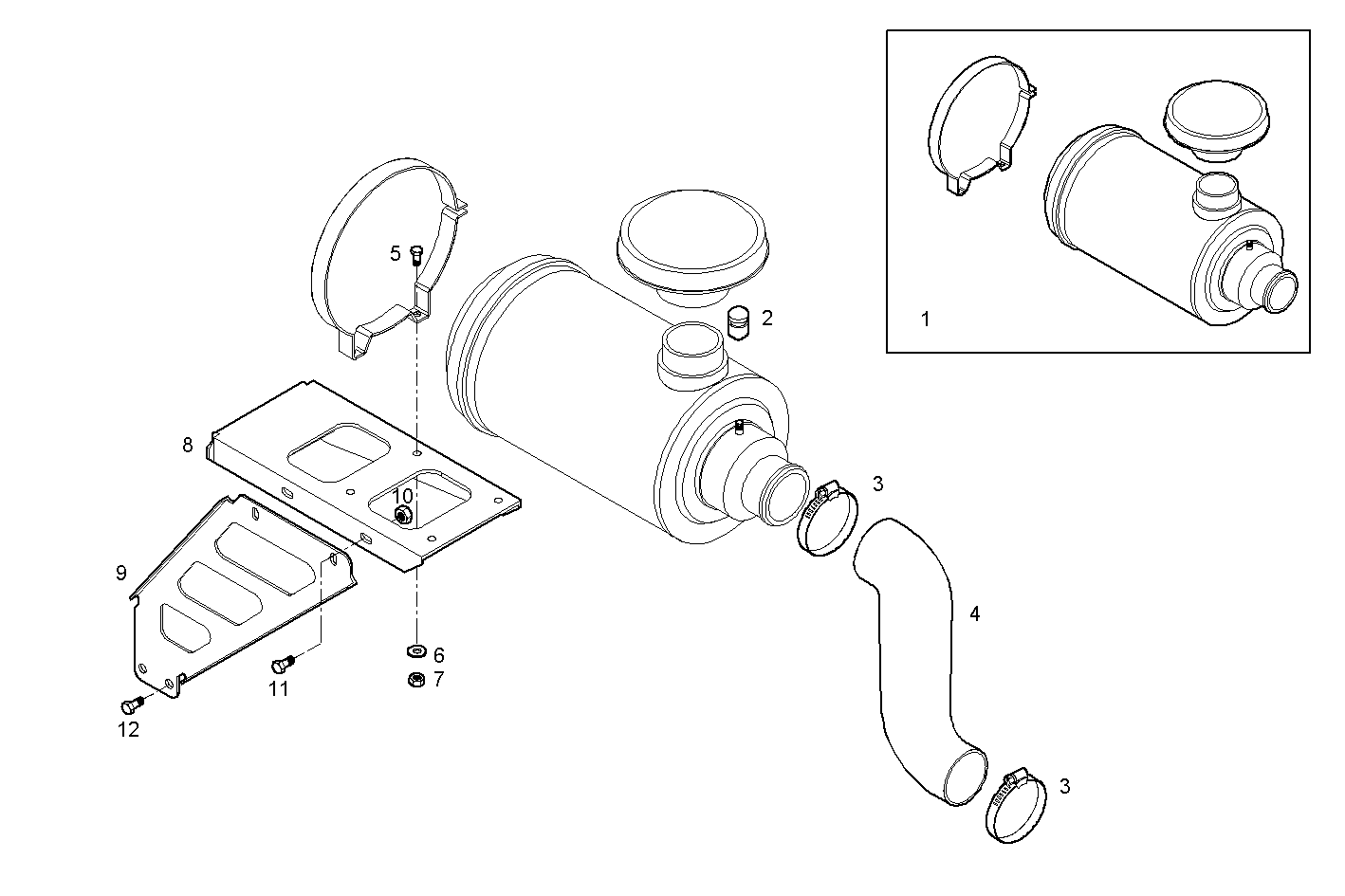

2210.046/01 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8032872 | AIR CLEANER |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 17765391 | CLIP Ø90/110 MM |
| 4 | 8048410 | FILTER HOSE |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 17089674 | SPRING WASHER Ø8X16 MM SP=2,2 MM |
| 7 | 17037921 | HEXAGON NUT M8X1,25 |
| 8 | 8048425 | FILTER SUPPORT |
| 9 | 8048413 | FASTENING BRACKET |
| 10 | 16750325 | HEXAGON NUT M10 |
| 11 | 16587124 | HEXAGON BOLT M10X25 MM |
| 12 | 16587924 | HEXAGON BOLT M12X25 MM |
