N45MSTX20.50A010

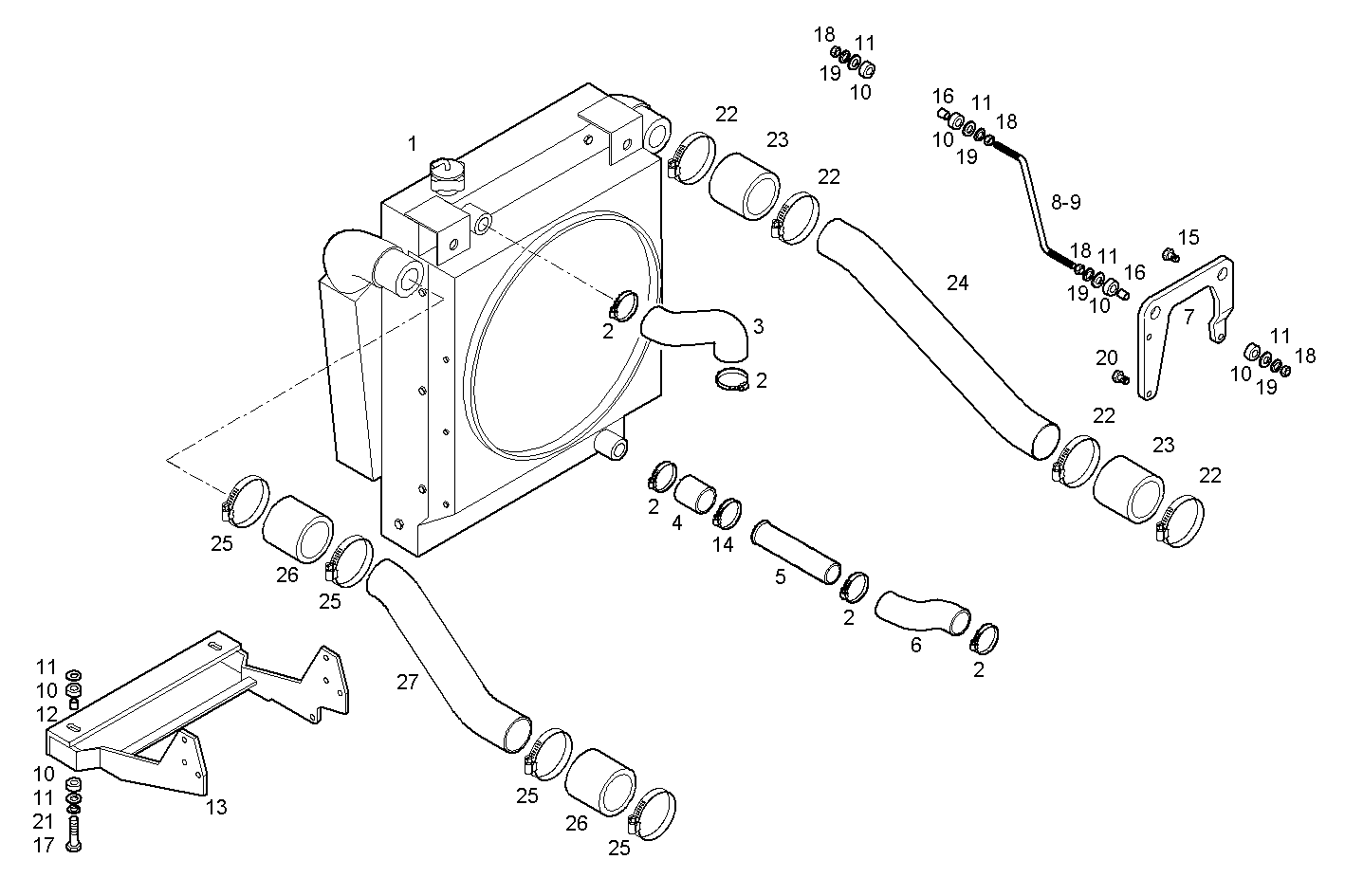

3300.006/01 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8048366 | WATER RADIATOR ASSY |
| 2 | 17764891 | CLIP �40/60 MM |
| 3 | 8045294 | WATER HOSE |
| 4 | 8034474 | RUBBER SLEEVE |
| 5 | 8034475 | WATER PIPE |
| 6 | 8048405 | RUBBER SLEEVE |
| 7 | 8048398 | RETAINER |
| 8 | 8038585 | TIE ROD RIGHT |
| 9 | 8048399 | TIE ROD |
| 10 | 8042179 | RUBBER PAD |
| 11 | 741570 | WASHER �10X17 MM SP=2,3 |
| 12 | 8108634 | SPACING BAR |
| 13 | 8048407 | SUPPORT |
| 14 | 17764991 | CLIP �50/70 MM |
| 15 | 16587124 | HEXAGON BOLT M10X25 MM |
| 16 | 741571 | SPACING BAR �10X17 MM SP=2,3 |
| 17 | 16608524 | HEXAGON BOLT M10X1,5X70 MM (8.8) |
| 18 | 17038421 | HEXAGON NUT M12 (8) |
| 19 | 17091074 | WASHER �12X24X2,8 MM |
| 20 | 16586424 | HEXAGON BOLT M8X25 MM |
| 21 | 17090274 | WASHER �10X20 MM |
| 22 | 17765191 | CLIP �70/90 MM |
| 23 | 8036376 | WATER HOSE |
| 24 | 8036101 | AIR PIPE/DUCT |
| 25 | 18089191 | CLIP |
| 26 | 98443275 | TURBOCHARGER HOSE |
| 27 | 8036099 | AIR PIPE/DUCT |
