N45MSTX20.50A800

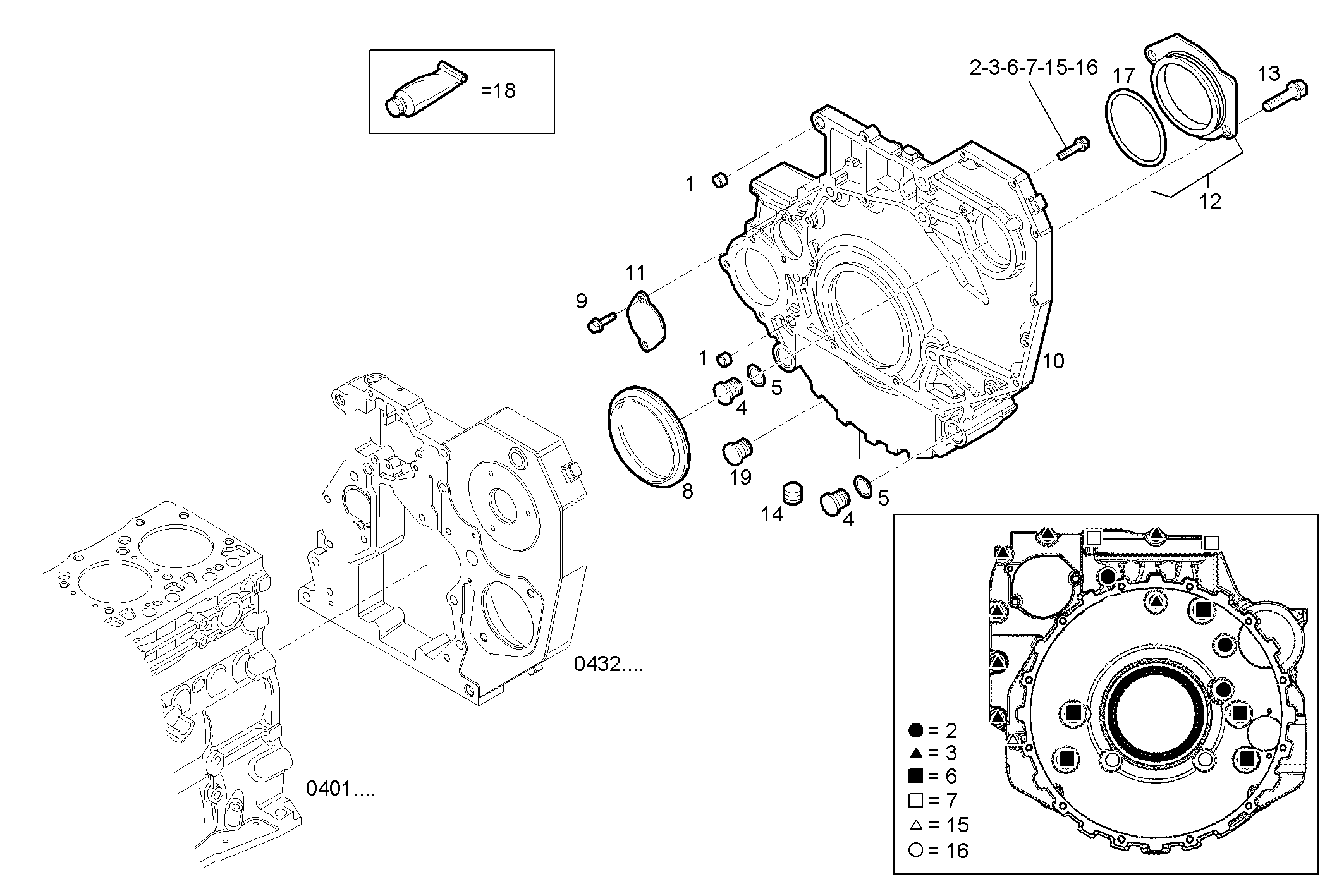

0435.030 FLYWHEEL HOUSING

Iveco/FPT FLYWHEEL HOUSING

Item Part number Description
1 4899026 DOWEL PIN
2 4899109 HEXAGON BOLT M10X1,5X80 MM
3 4892915 HEXAGON BOLT M10X1,5X40 MM
4 4895378 PLUG Ø29 MM
5 17288480 O-RING 3,53x21,81
6 4899076 HEXAGON BOLT M12X80 MM
7 4899074 HEXAGON BOLT
8 4890833 SHAFT SEAL
9 4899068 HEXAGON BOLT M8X17 MM
10 504128015 FLYWHEEL HOUSING
11 4895155 COVER
12 504115364 COVER ASSY
13 16673635 HEXAGON BOLT M8X1.25X20
14 4893036 THREADED PLUG
15 4899143 HEXAGON BOLT
16 504080094 HEXAGON BOLT M10X40 MM
17 17285481 O-RING Ø75,87 MM SP=2,62 MM
18 2992504 ADHESIVE/STICKER LOCTITE
19 504177632 THREADED PLUG
