N45MSTX21.50A801

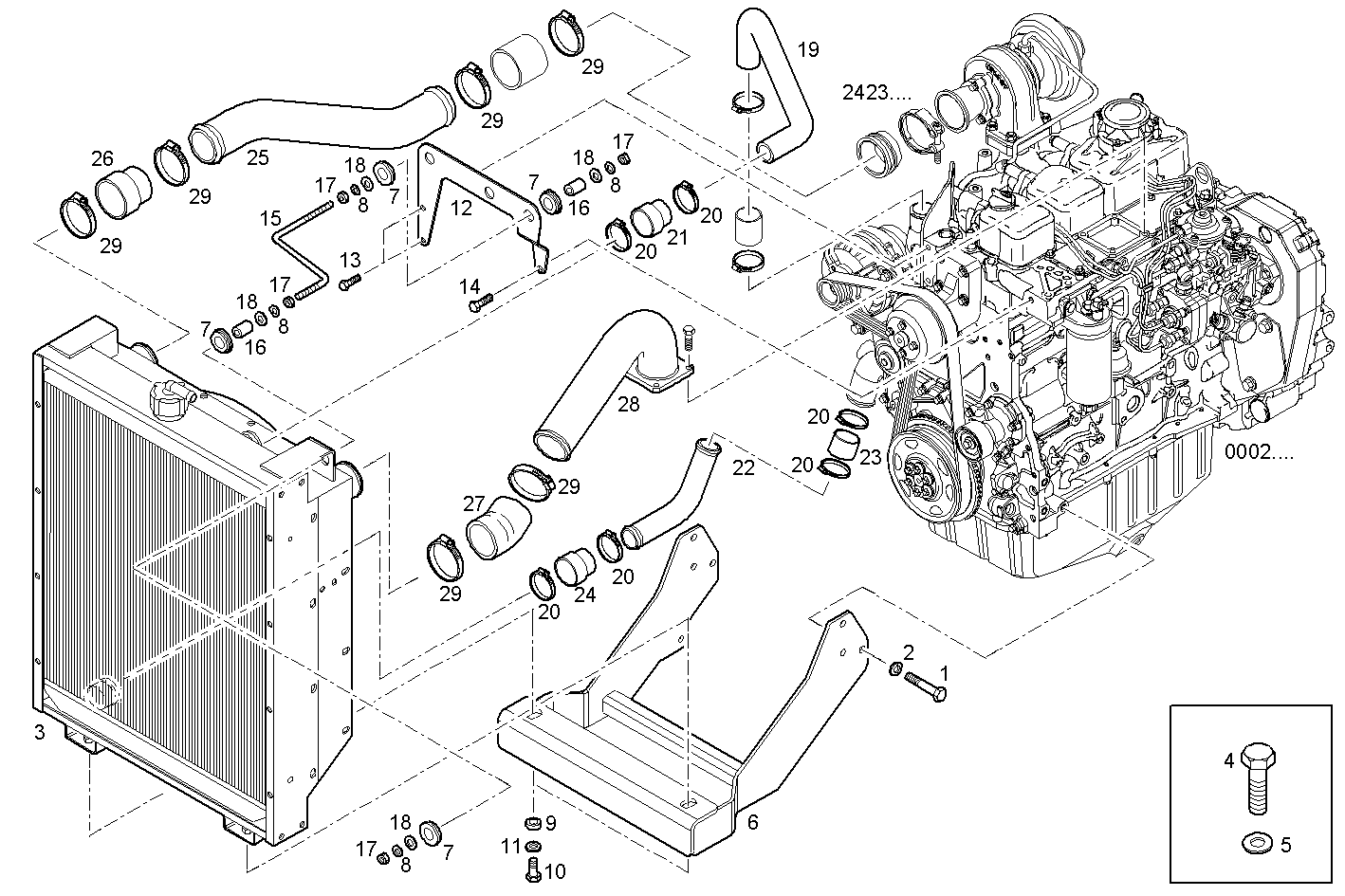

A22010532 RADIATOR 2 CIRCUITS AIR/WATER

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 16630034 HEXAGON BOLT M12X40 MM
2 17091174 SPRING WASHER Ø12X24 MM
3 8049995 WATER RADIATOR ASSY
4 16043024 HEXAGON BOLT M8X12 MM (8.8)
5 98474303 WASHER Ø8X14 MM SP=2,3 MM
6 8038464 SUPPORT
7 741569 RUBBER LUG
8 741570 WASHER Ø10X17 MM SP=2,3
9 8108634 SPACING BAR
10 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
11 17090274 WASHER Ø10X20 MM
12 8038584 FASTENING BRACKET
13 16673735 HEXAGON BOLT M8X25 MM
14 16587125 HEXAGON BOLT M10X25 MM
15 8038585 TIE ROD RIGHT
16 741571 SPACING BAR Ø10X17 MM SP=2,3
17 17038425 HEXAGON NUT M12 (8)
18 17091074 WASHER Ø12X24X2,8 MM
19 8045294 WATER HOSE
20 17764892 PIPE CLIP Ø40-60 MM
21 8036102 WATER HOSE
22 8041439 WATER PIPE
23 17743887 RUBBER SLEEVE
24 99444730 WATER HOSE Ø 60 MM
25 8050163 AIR PIPE/DUCT
26 8049990 RUBBER SLEEVE
27 8050162 RUBBER SLEEVE
28 8050158 AIR PIPE/DUCT
29 17765192 HOSE CLIP Ø70-90 MM
