N60ENT426.00A003

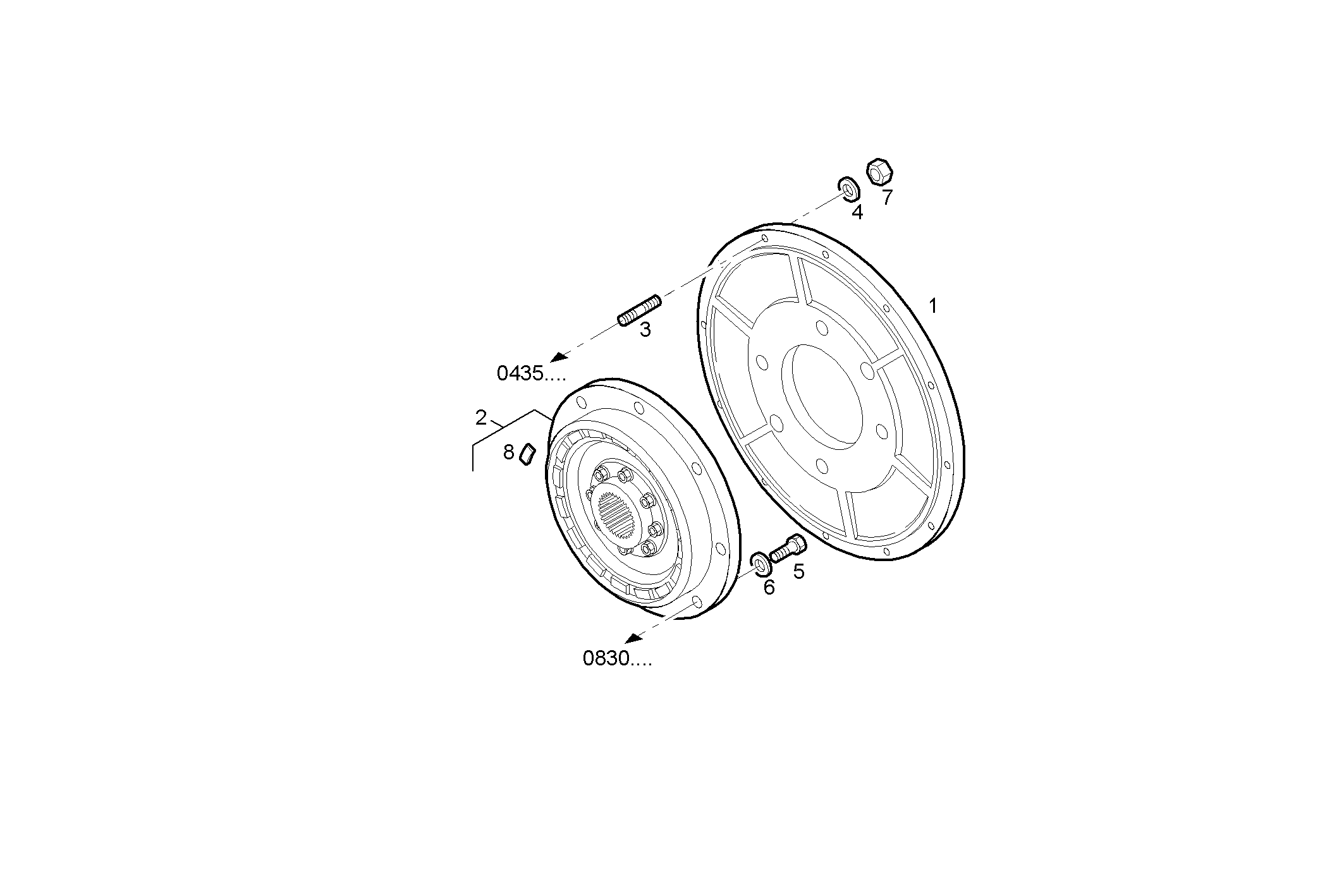

0870.003 FLYWHEEL ARRANGED FOR TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8021568 | FLANGE |
| 2 | 8039107 | FLEXIBLE COUPLING ASSY |
| 3 | 16748624 | STUD M10X30 MM |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16607625 | SCREW M10X25 |
| 7 | 17038131 | HEXAGON NUT M10 |
| 8 | 4932462 | DOWEL |
