Catalogue Menu

N60ENTD20.00

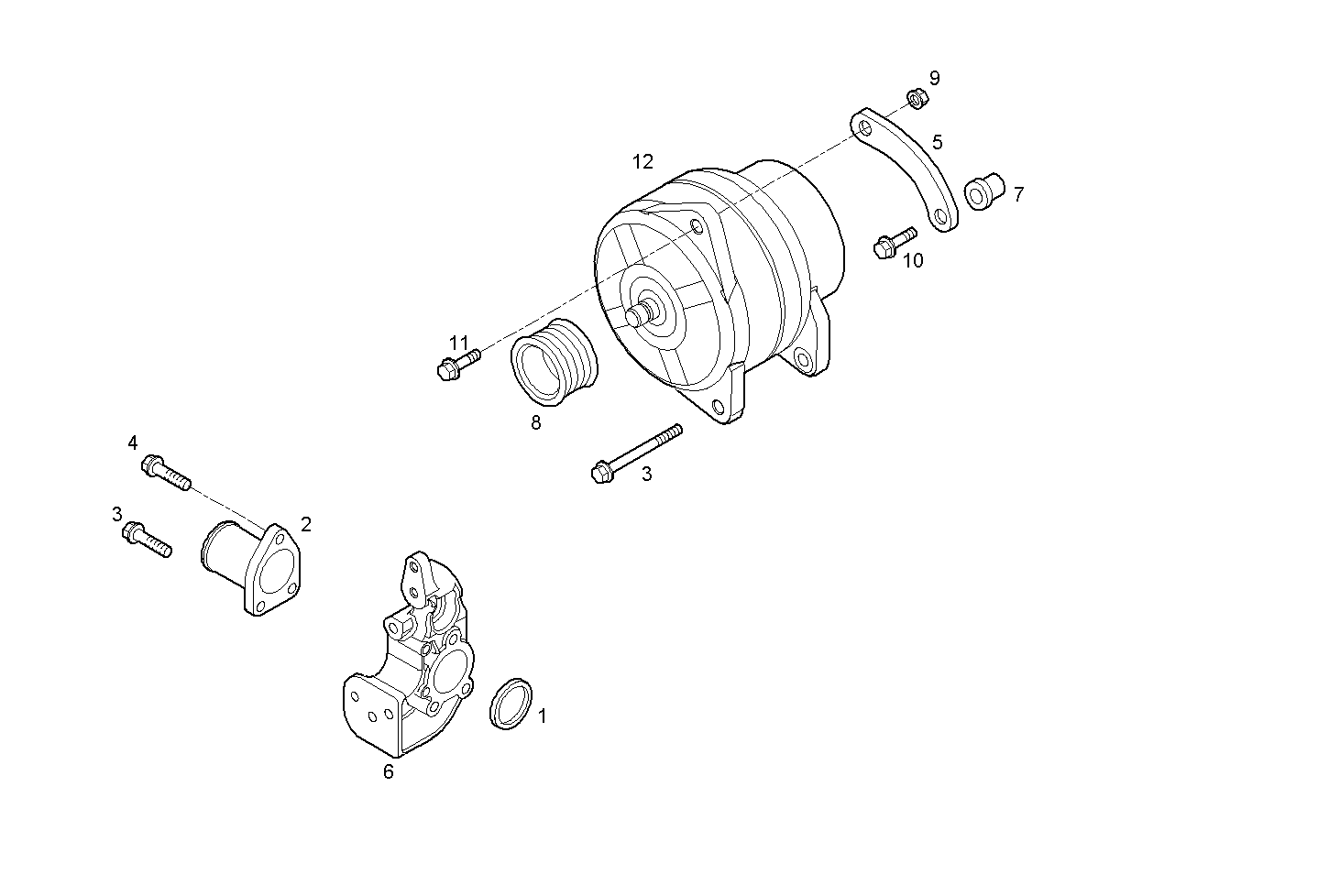

A14240503 SELF-REGULATED ALTERNATOR

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 504062710 WASHER
2 504018245 WATER PIPE
3 16592925 HEXAGON BOLT M10X80 MM
4 16593124 HEXAGON BOLT M10X100 MM
5 8036565 FASTENING BRACKET
6 8036563 GENERATOR SUPPORT
7 8036564 SPACING BAR
8 8036600 GENERATOR PULLEY
9 17044821 NUT M10
10 16593125 HEXAGON BOLT M10X100 MM
11 16587125 HEXAGON BOLT M10X25 MM
12 8036232 ALTERNATOR
