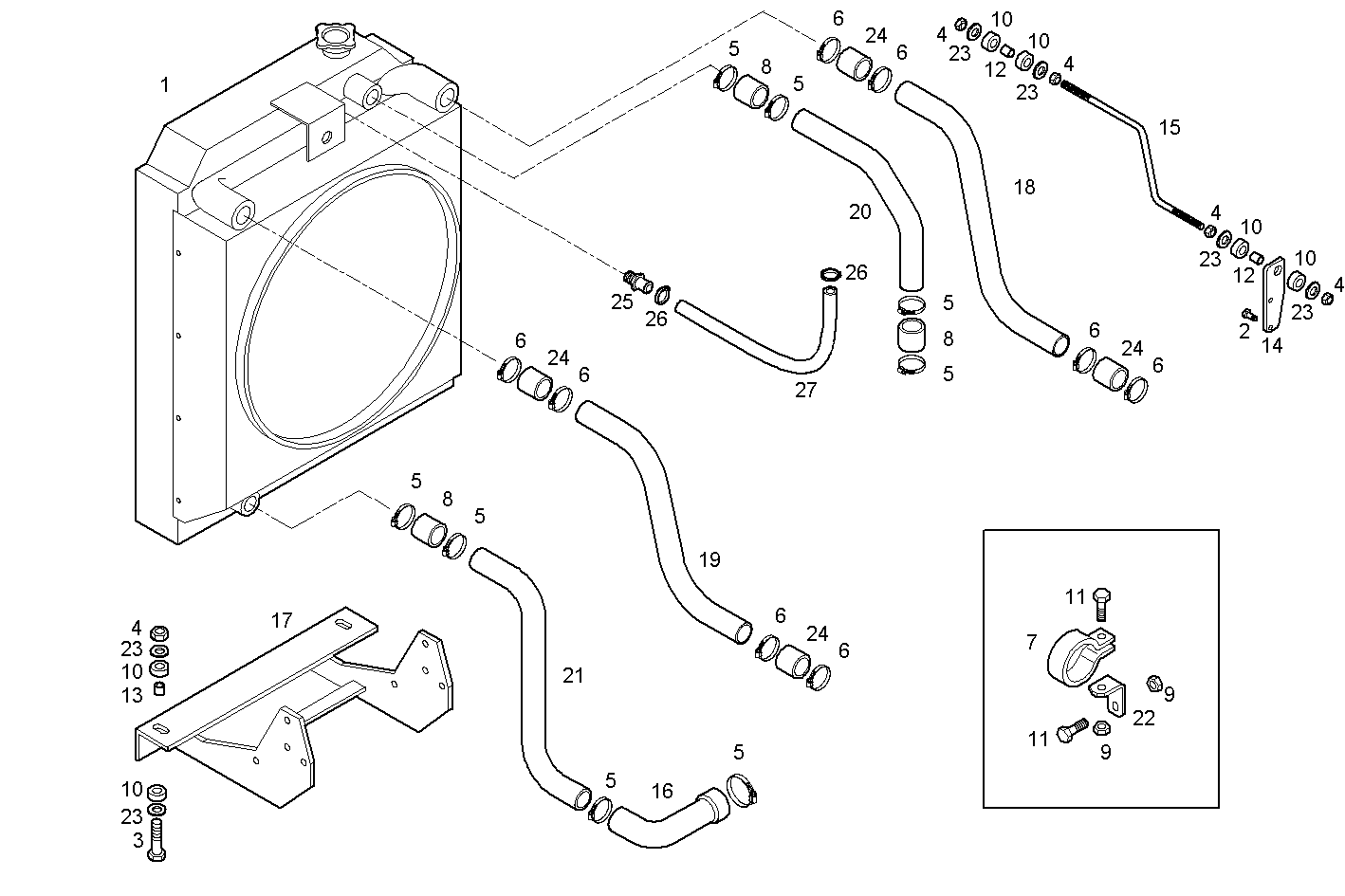

| Item |
Part number |
Description |
|
1 |
8042936 |
WATER RADIATOR |
|
1 |
8037782 |
WATER RADIATOR OPT. |
|
2 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
3 |
16588824 |
HEXAGON BOLT M12X1,75X70 MM |
|
4 |
16750425 |
HEXAGON NUT M12 |
|
5 |
17764991 |
CLIP Ø50/70 MM |
|
6 |
17765191 |
CLIP Ø70/90 MM |
|
7 |
18116704 |
FASTENING BRACKET |
|
8 |
98433328 |
WATER HOSE |
|
9 |
4899003 |
HEXAGON NUT M8 |
|
10 |
741569 |
RUBBER LUG |
|
11 |
16586324 |
HEXAGON BOLT M8X1,25X20 MM |
|
12 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
13 |
8108634 |
SPACING BAR |
|
14 |
8037825 |
RETAINER |
|
15 |
8038147 |
TIE ROD |
|
16 |
8038027 |
RUBBER SLEEVE |
|
17 |
8038085 |
SUPPORT |
|
18 |
8038122 |
AIR PIPE/DUCT |
|
19 |
8038144 |
AIR PIPE/DUCT |
|
20 |
8038081 |
WATER PIPE |
|
21 |
8038111 |
WATER PIPE |
|
22 |
8103023 |
RETAINER |
|
23 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
24 |
98443275 |
TURBOCHARGER HOSE |
|
25 |
4895118 |
THREADED UNION |
|
26 |
18087993 |
CLIP Ø8/16 MM |
|
27 |
17724587 |
RUBBER HOSE Ø7,5X14,5 MM |
