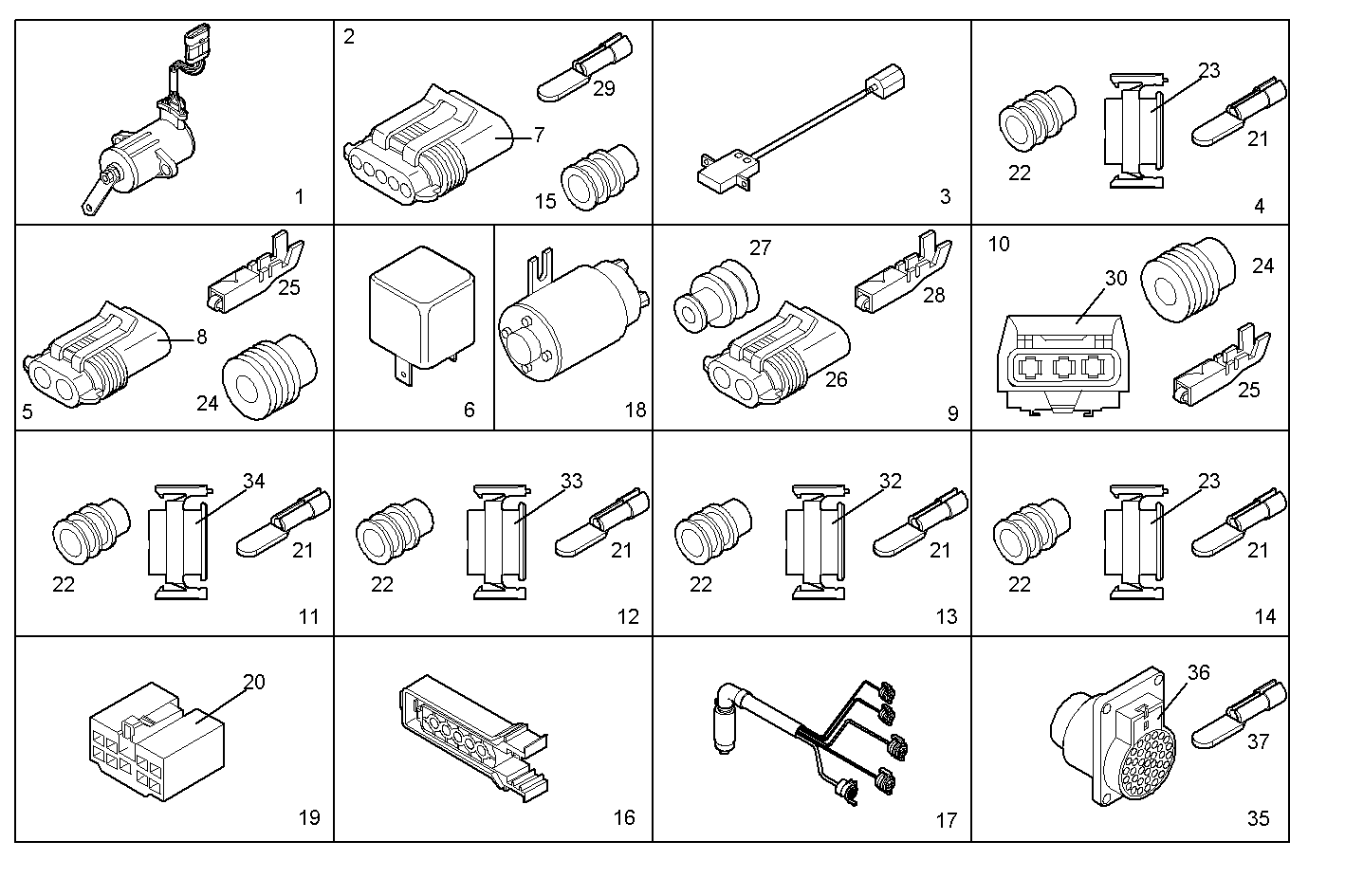

| Item |
Part number |
Description |
|
1 |
500388702 |
TRANSMITTER acceler.pedal position |
|
2 |
8031313 |
WIRE CONNECTOR assy 5 pin female |
|
3 |
99464594 |
SWITCH for "Blink code" |
|
4 |
8032282 |
WIRE CONNECTOR assy 10 pin male -pin layout E |
|
5 |
8030571 |
WIRE CONNECTOR assy 2 pin female - packard |
|
6 |
500362250 |
RELAY 50A 24V |
|
7 |
12332087 |
WIRE CONNECTOR |
|
8 |
12330587 |
WIRE CONNECTOR |
|
9 |
8033709 |
CONNECTION ASSY |
|
10 |
8030575 |
CONNECTION ASSY |
|
11 |
8032281 |
WIRE CONNECTOR assy 10 pin male -pin layout G |
|
12 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
13 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
14 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
15 |
12332885 |
GASKET |
|
16 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
17 |
8032263 |
WIRE/CABLE ASSY |
|
18 |
504060981 |
RELAY |
|
19 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
20 |
12267380 |
CONNECTION |
|
21 |
4863438 |
TERMINAL |
|
22 |
4861937 |
RUBBER BUSH |
|
23 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
24 |
4835259 |
GASKET |
|
25 |
12309290 |
TERMINAL |
|
26 |
98435345 |
WIRE CONNECTOR 1 pin female |
|
27 |
4861936 |
RUBBER BUSH YELLOW |
|
28 |
98435372 |
TERMINAL |
|
29 |
12331654 |
TERMINAL |
|
30 |
99430234 |
PLUG COUPLING |
|
31 |
4859418 |
CONNECTION 10 pin male - black colour |
|
32 |
4859431 |
CONNECTION 19 pin male - white colour |
|
33 |
4859430 |
CONNECTION 19 pin male - black colour |
|
34 |
4859419 |
CONNECTION 10 pin male - white colour |
|
35 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
36 |
504013633 |
CONNECTION |
|
37 |
99462549 |
TERMINAL |
