N60ENTF40.00

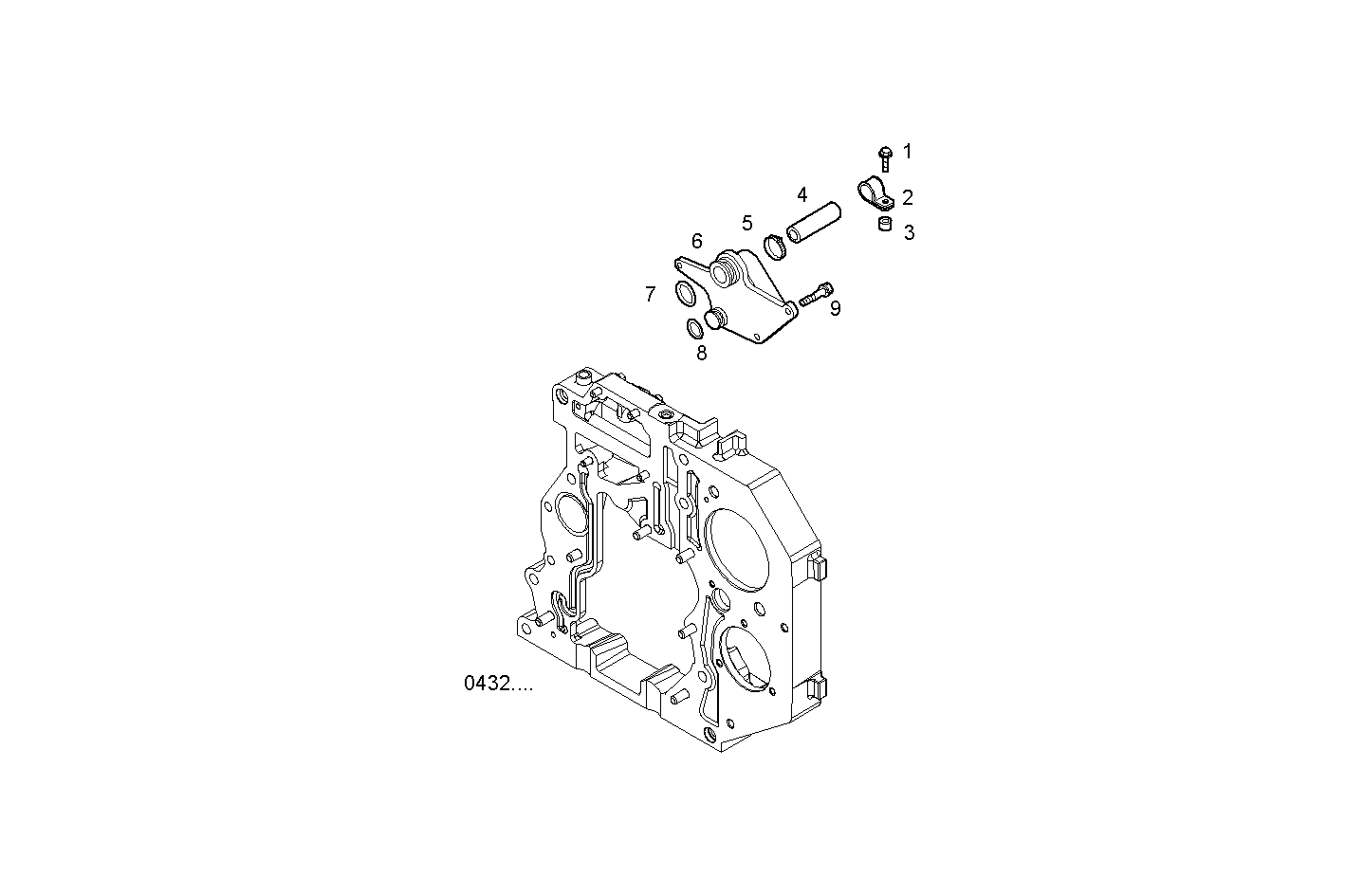

0450.232 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 16673835 | HEXAGON BOLT M8X30 MM |
| 2 | 17317190 | PIPE CLIP Ø24 MM |
| 3 | 4811835 | SPACING BAR |
| 4 | 504150716 | RUBBER SLEEVE |
| 5 | 4893234 | CLIP |
| 6 | 2830405 | BREATHER |
| 7 | 2830409 | O-RING |
| 8 | 4898372 | O-RING Ø13,11 MM SP=2,62 MM |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
