N60ENTF40.00

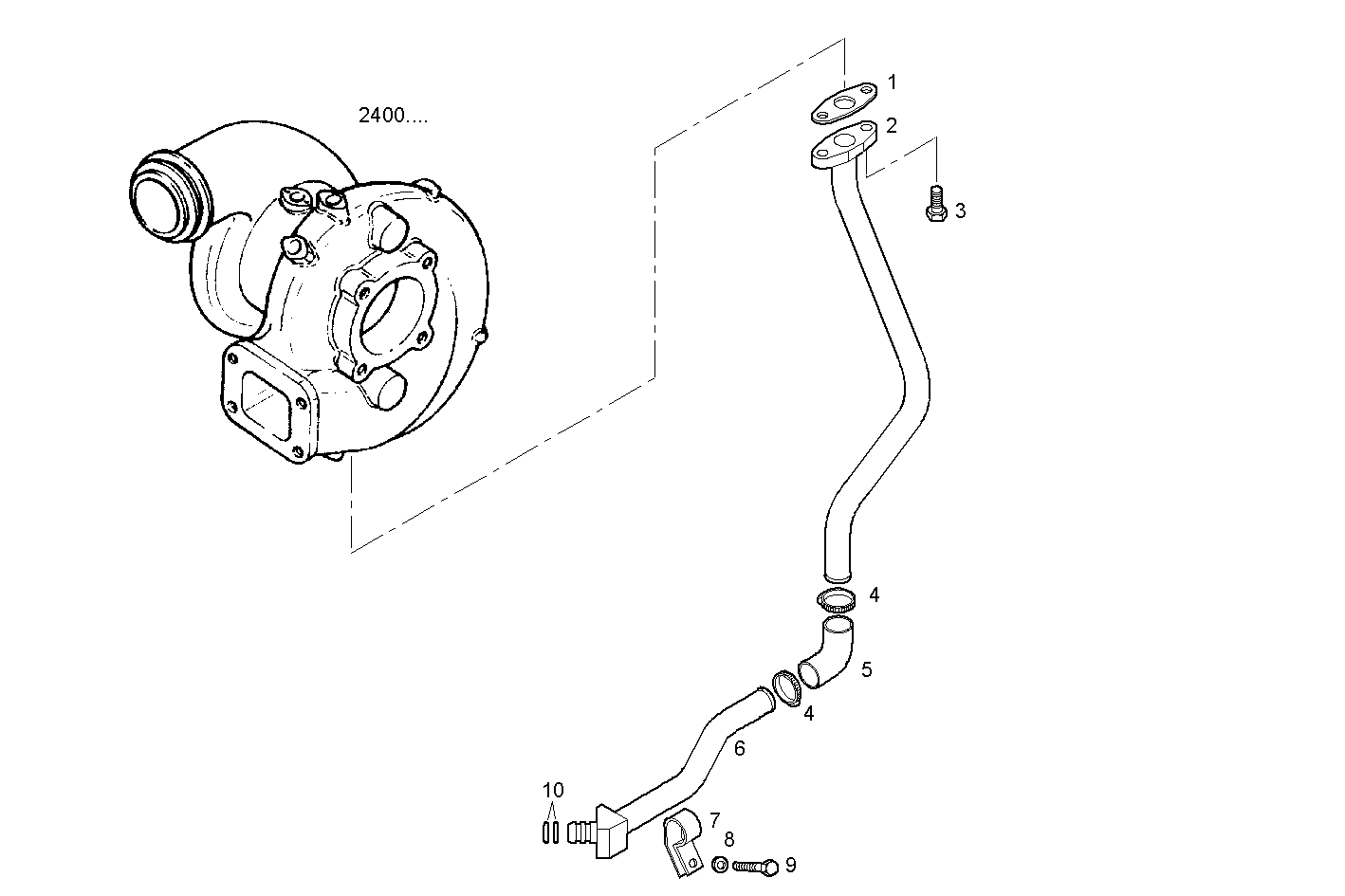

3065.008 RETURN OIL LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 98412509 | FLAT ENGINE GASKET |
| 2 | 8045047 | OIL LINE |
| 3 | 16673735 | HEXAGON BOLT M8X25 MM |
| 4 | 17764593 | CLIP Ø20/32 MM |
| 5 | 98420478 | RUBBER SLEEVE |
| 6 | 8045045 | OIL LINE |
| 7 | 8032210 | FASTENING BRACKET |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 17281881 | O-RING DIA 17,12 SP 2,62 |
