N60ENTF40.00

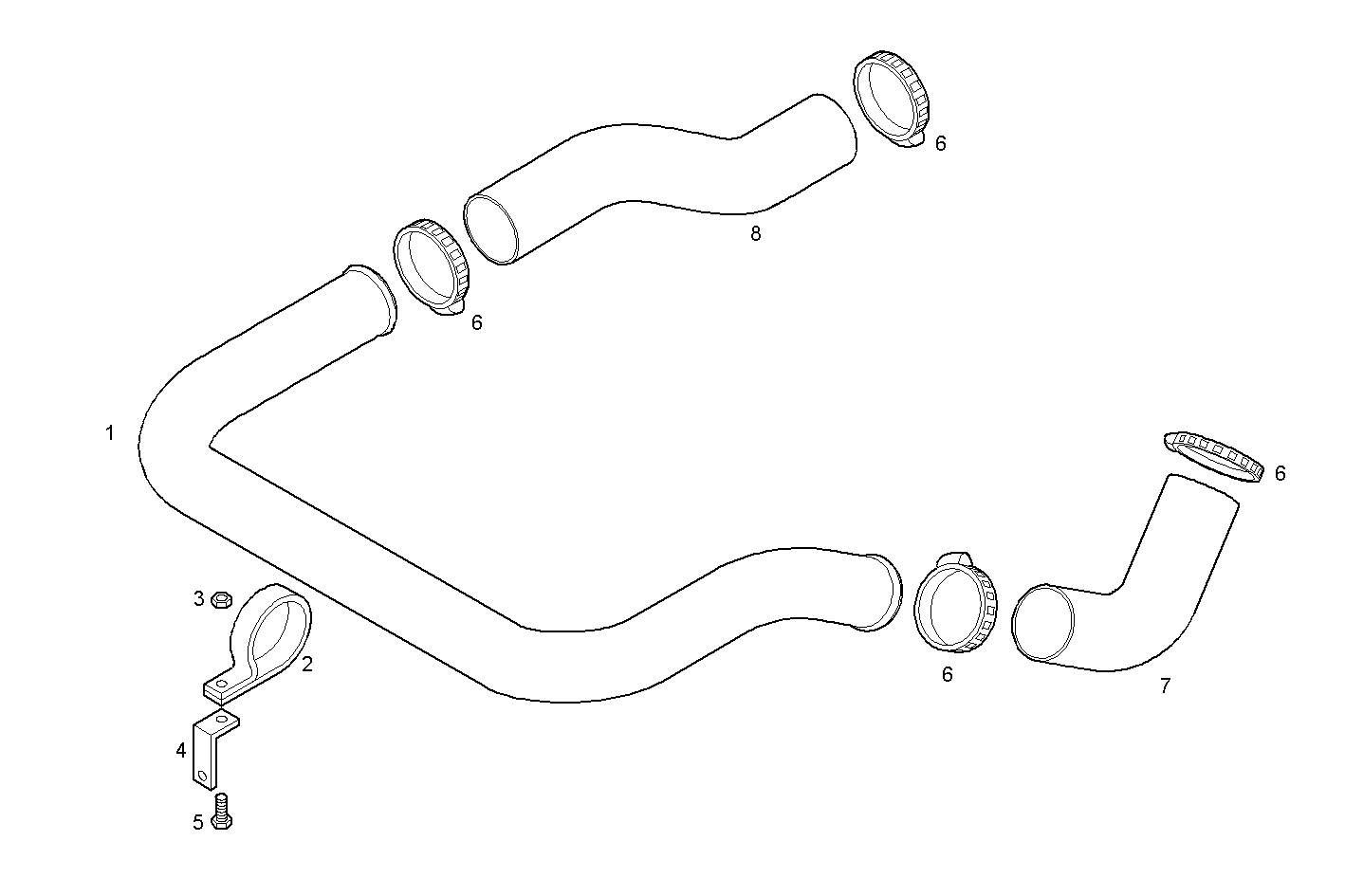

3390.000 SEA WATER LINES [FROM 31-01-07] [FROM 31-01-07]
| Item | Part number | Description |
|---|---|---|
| 1 | 8047671 | WATER PIPE |
| 2 | 8034457 | CLIP |
| 3 | 16750325 | HEXAGON NUT M10 |
| 4 | 8100819 | RETAINER |
| 5 | 16587125 | HEXAGON BOLT M10X25 MM |
| 6 | 17765892 | HOSE CLIP Ø140/160 MM |
| 7 | 8040155 | RUBBER SLEEVE |
| 8 | 8106646 | RUBBER SLEEVE |
