Catalogue Menu
N60ENTF40.00

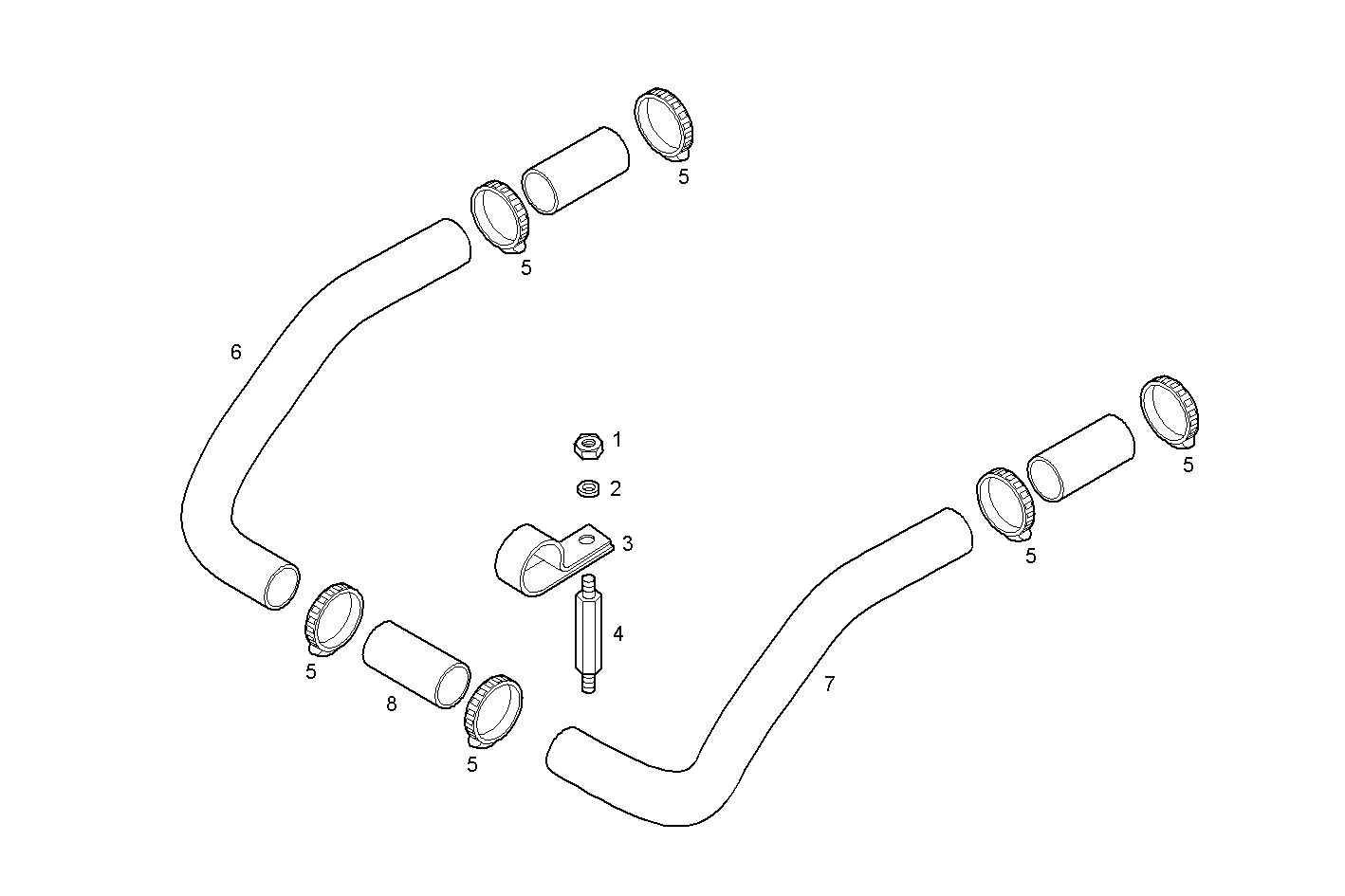

3390.088 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 17038131 | HEXAGON NUT M10 |
| 2 | 17090174 | SPRING WASHER �10X20 MM |
| 3 | 8034457 | CLIP |
| 4 | 8045006 | SPACING BAR |
| 5 | 17764892 | PIPE CLIP �40-60 MM |
| 6 | 8045005 | WATER PIPE |
| 7 | 8045004 | WATER PIPE |
| 8 | 8040142 | RUBBER SLEEVE �45x70 MM |
