N60ENTM40.10

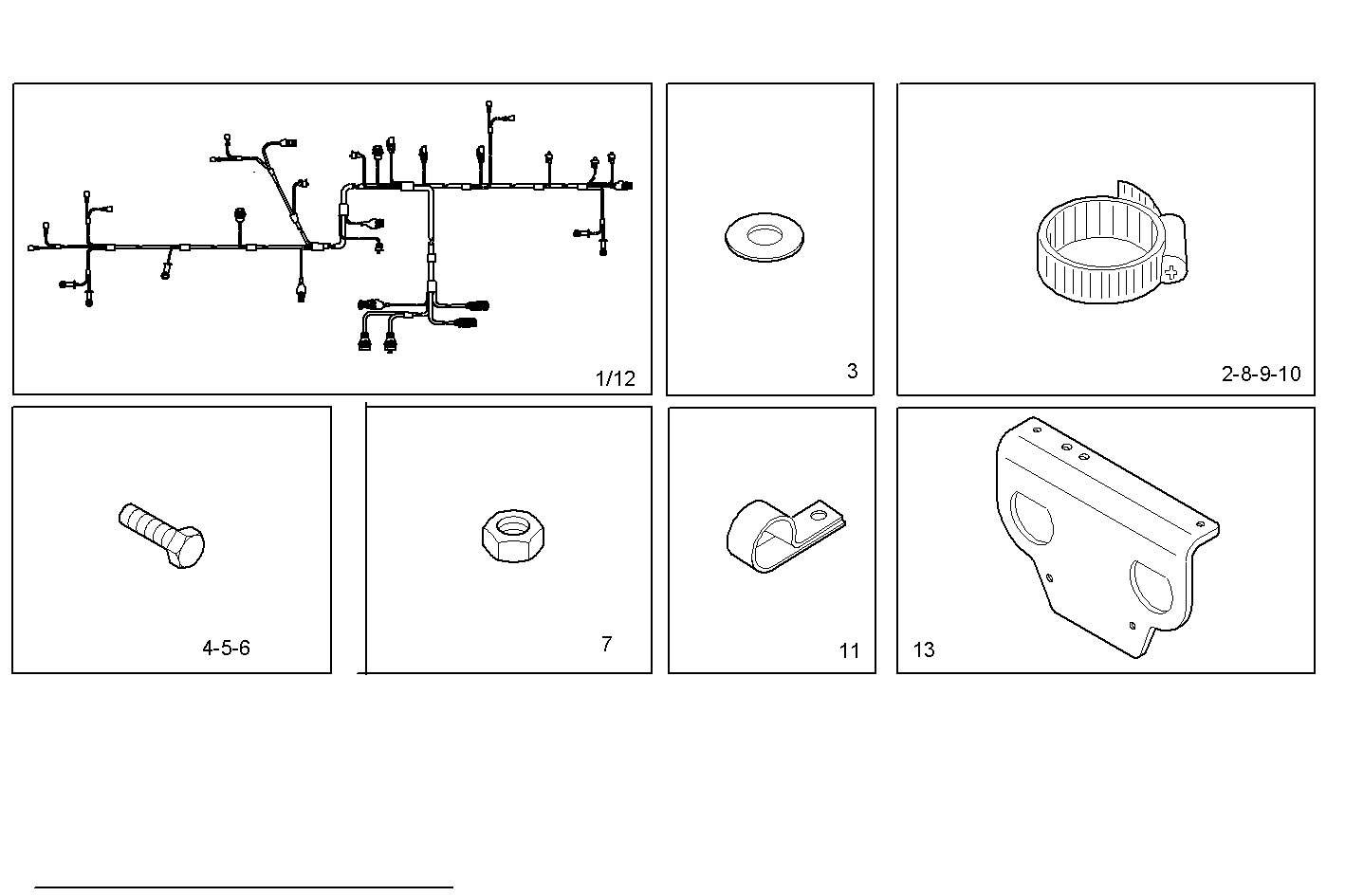

1730.041 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 8035822 | ENGINE HARNESS [UP TO 01-07-05] |
| 2 | 10450090 | PIPE CLIP Ø8 MM |
| 3 | 17094724 | WASHER Ø6X12 MM |
| 4 | 16603677 | HEXAGON BOLT M6X16 MM |
| 5 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 16750125 | HEXAGON NUT M6 |
| 8 | 17317190 | PIPE CLIP Ø24 MM |
| 9 | 4936277 | CLIP [up to 03-97] |
| 10 | 10450590 | PIPE CLIP Ø18 MM |
| 11 | 17316690 | FASTENING BRACKET Ø20,5 MM |
| 12 | 8041170 | ENGINE HARNESS [FROM 02-07-05] |
| 13 | 80358181 | PLATE |
