N60ENTM40.10

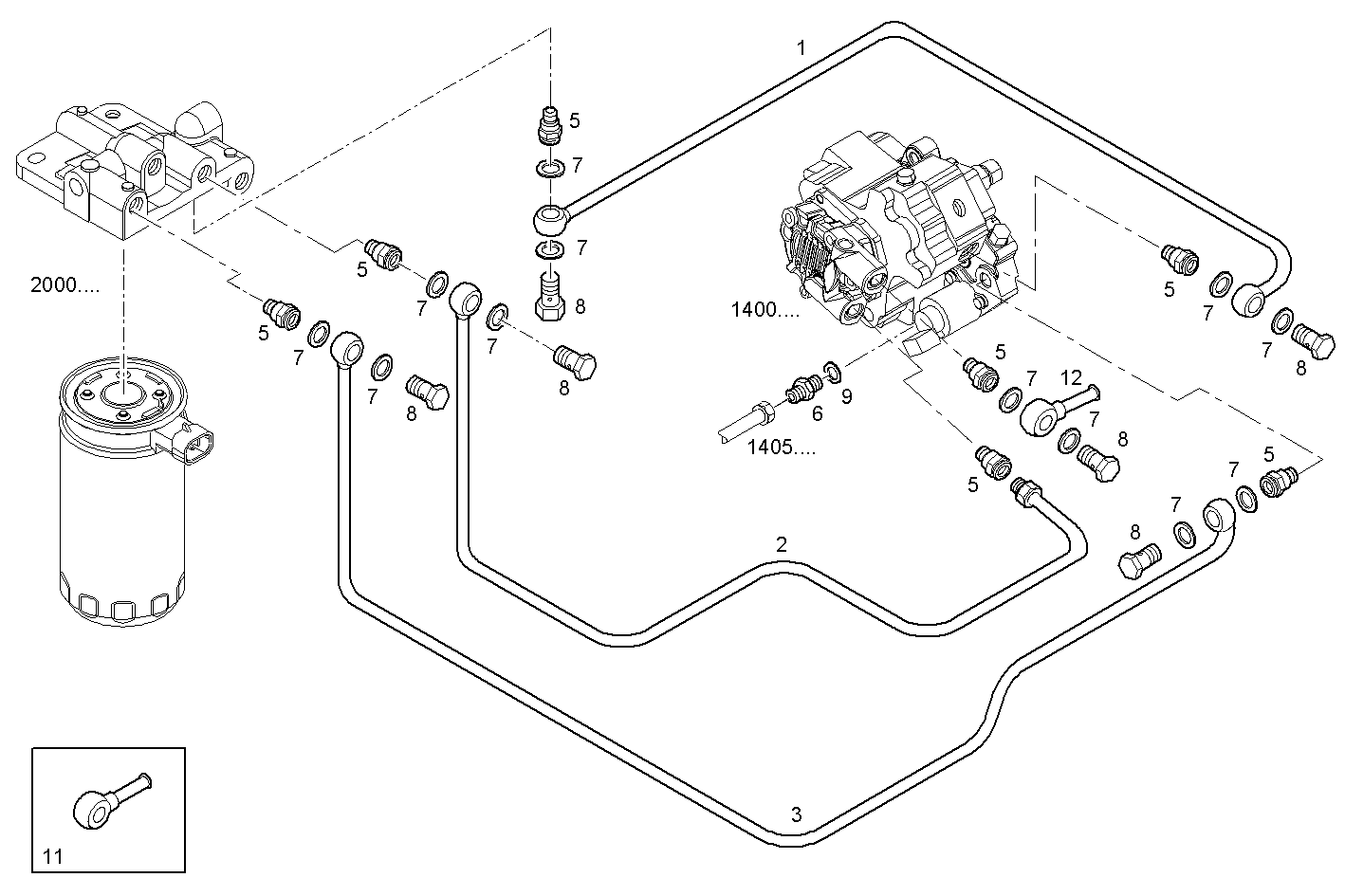

2030.250/01 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8035631 | FUEL LINE |
| 2 | 8035632 | FUEL LINE |
| 3 | 8035633 | FUEL LINE |
| 4 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 5 | 99476542 | THREADED UNION M12X1,5 |
| 6 | 16500114 | THREADED UNION M12X1,5 - M14X1,5 |
| 7 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 8 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 9 | 17278181 | O-RING [FROM # 50368] |
| 10 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 11 | 98404884 | SWIVEL COUPLING |
| 12 | 98405514 | PIPE SOCKET |
