N60ENTM40.10

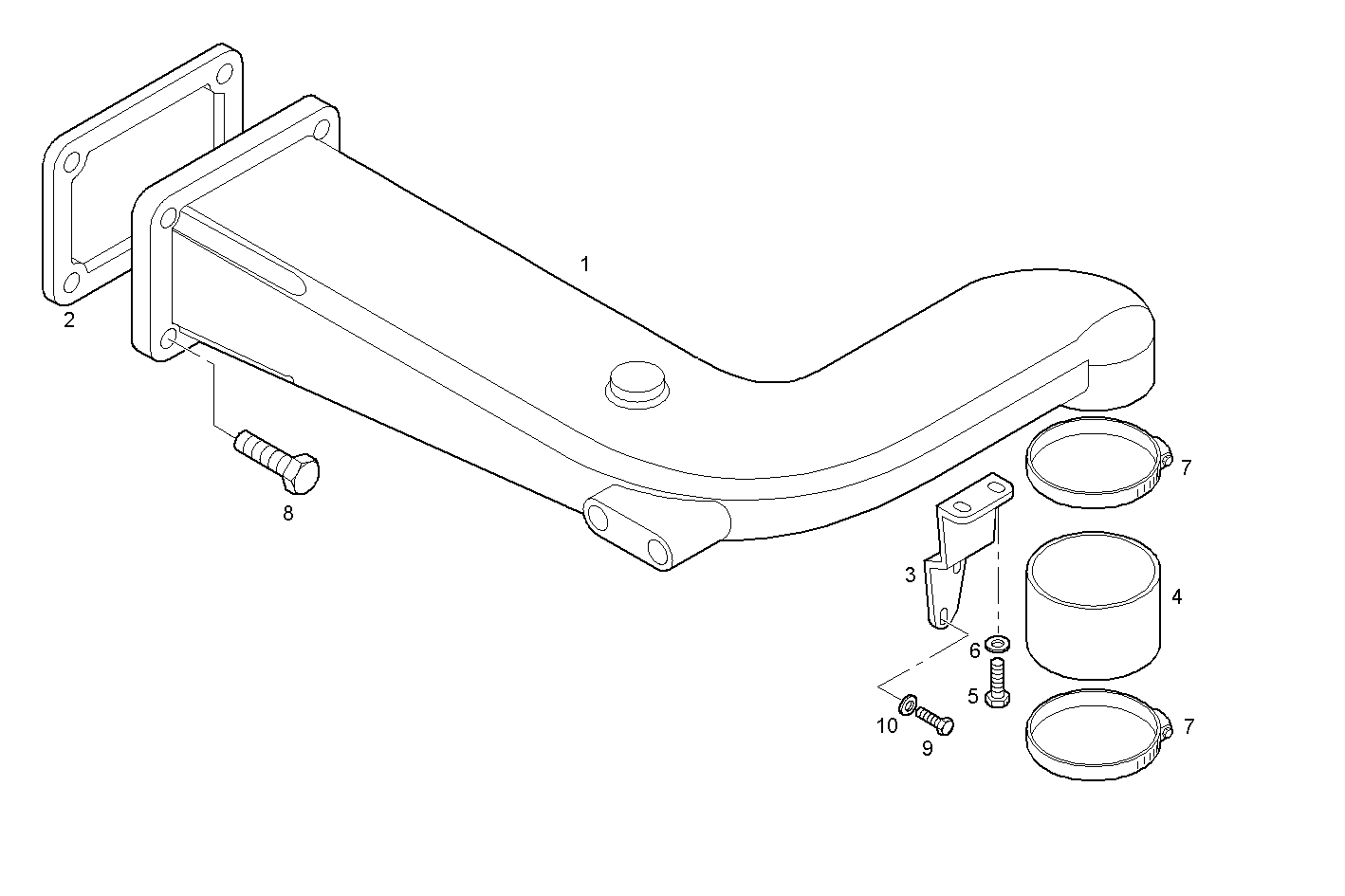

2430.058 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8031792 | LINE |
| 2 | 8040129 | GASKET |
| 3 | 8033283 | RETAINER |
| 4 | 8031793 | RUBBER SLEEVE |
| 5 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17768599 | CLIP |
| 8 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 9 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 10 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
