N60ENTM40.10

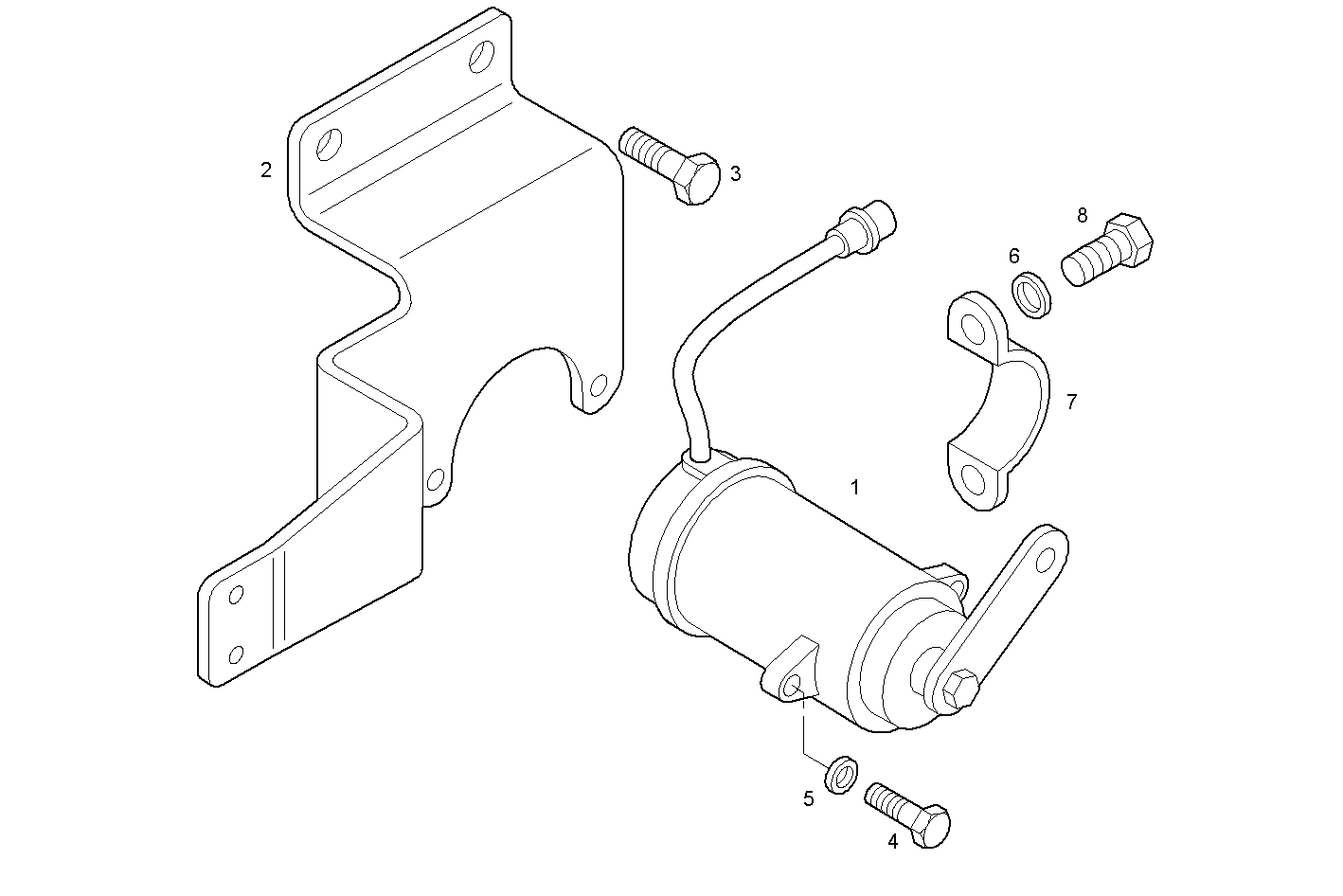

2650.004 ELECTRONIC ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8030707 | POTENTIOMETER |
| 2 | 8036770 | RETAINER |
| 3 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 4 | 16603677 | HEXAGON BOLT M6X16 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17800274 | SPRING WASHER Ø5X11 MM |
| 7 | 8033783 | RETAINER |
| 8 | 16601924 | HEXAGON BOLT M5X10 MM |
