N60ENTM40.10

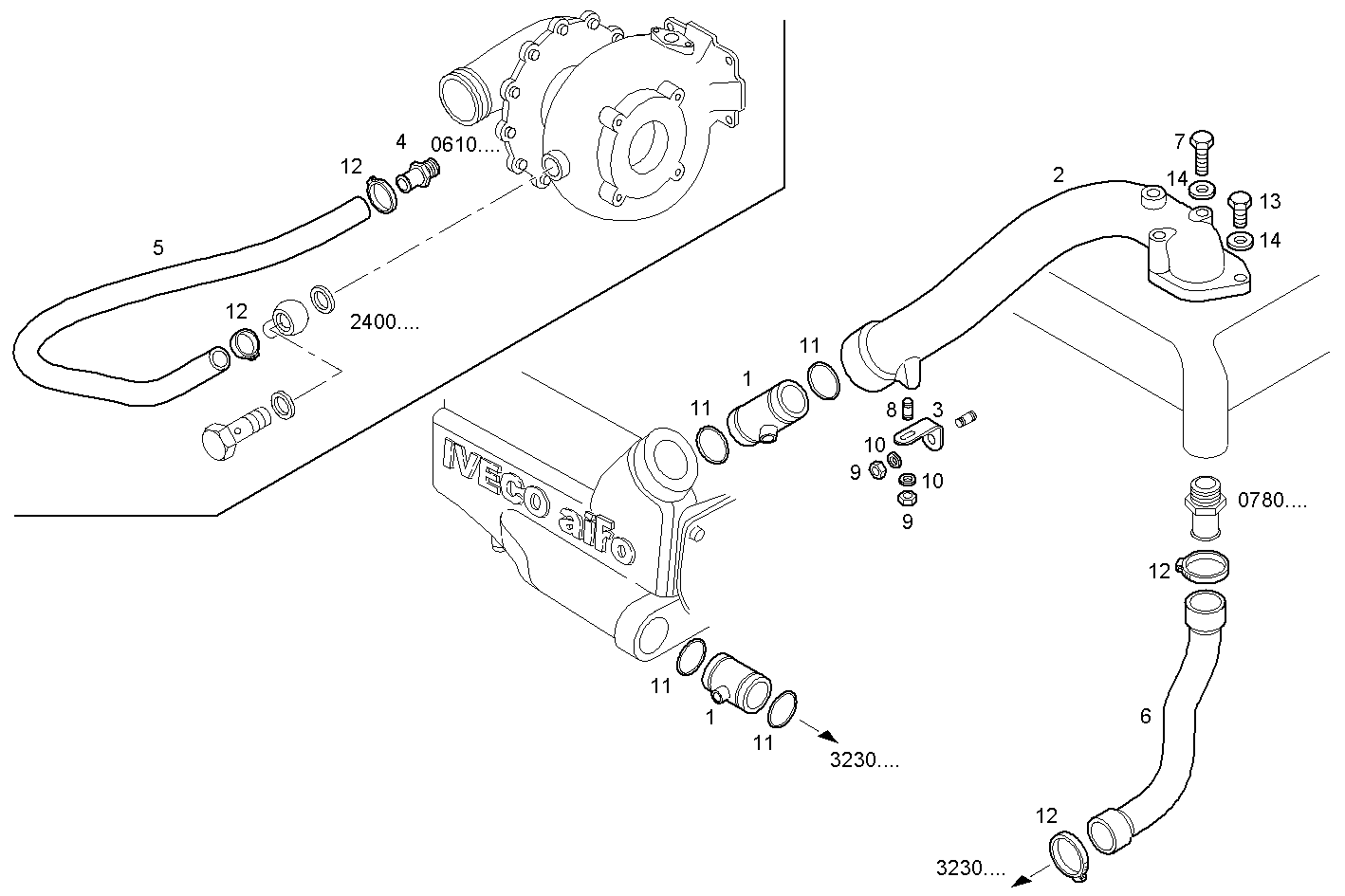

3230.068 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8018308 | CONNECTOR SLEEVE |
| 2 | 8031802 | WATER PIPE |
| 3 | 8031803 | FASTENING BRACKET |
| 4 | 8032095 | THREADED UNION |
| 5 | 8033518 | WATER HOSE |
| 6 | 8033541 | WATER HOSE |
| 7 | 16604724 | HEXAGON BOLT M6X70 |
| 8 | 16729224 | STUD M8X16 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17088374 | WASHER |
| 11 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 12 | 18088593 | CLIP 25x40 |
| 13 | 10902633 | HEXAGON BOLT M6X1X25 MM |
| 14 | 17094724 | WASHER Ø6X12 MM |
