N60ENTM40.10

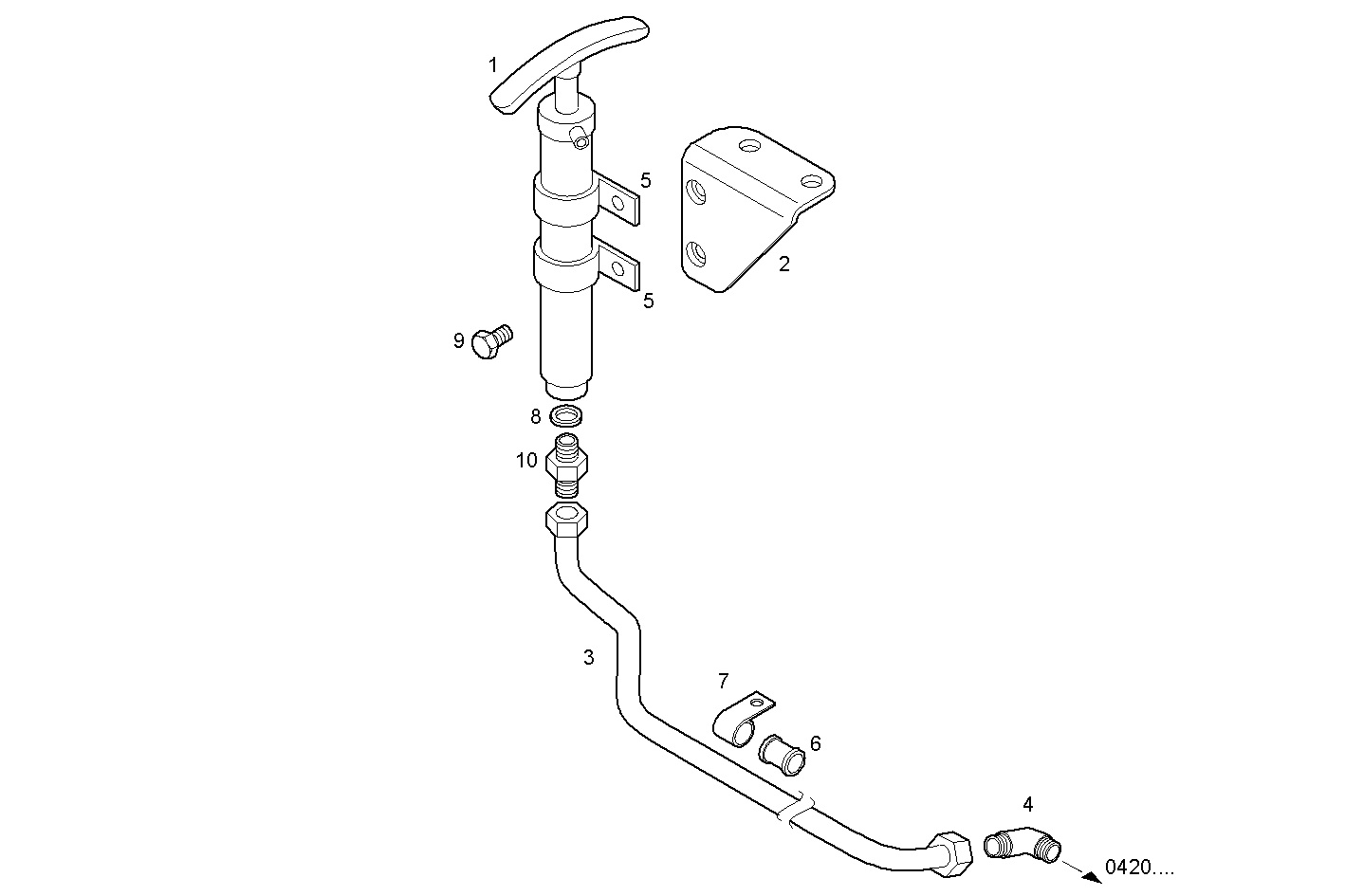

5510.050 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8035684 | SUPPORT |
| 3 | 8032634 | OIL LINE |
| 4 | 4896491 | ELBOW COUPLING M16X1,5 - M18X1,5 |
| 5 | 4928851 | CLIP |
| 6 | 4755964 | RUBBER PAD |
| 7 | 4755963 | FASTENING BRACKET |
| 8 | 18139424 | HEXAGON BOLT M10X20 MM |
| 9 | 16673634 | HEXAGON BOLT |
| 10 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 11 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
