N60ENTM40.10

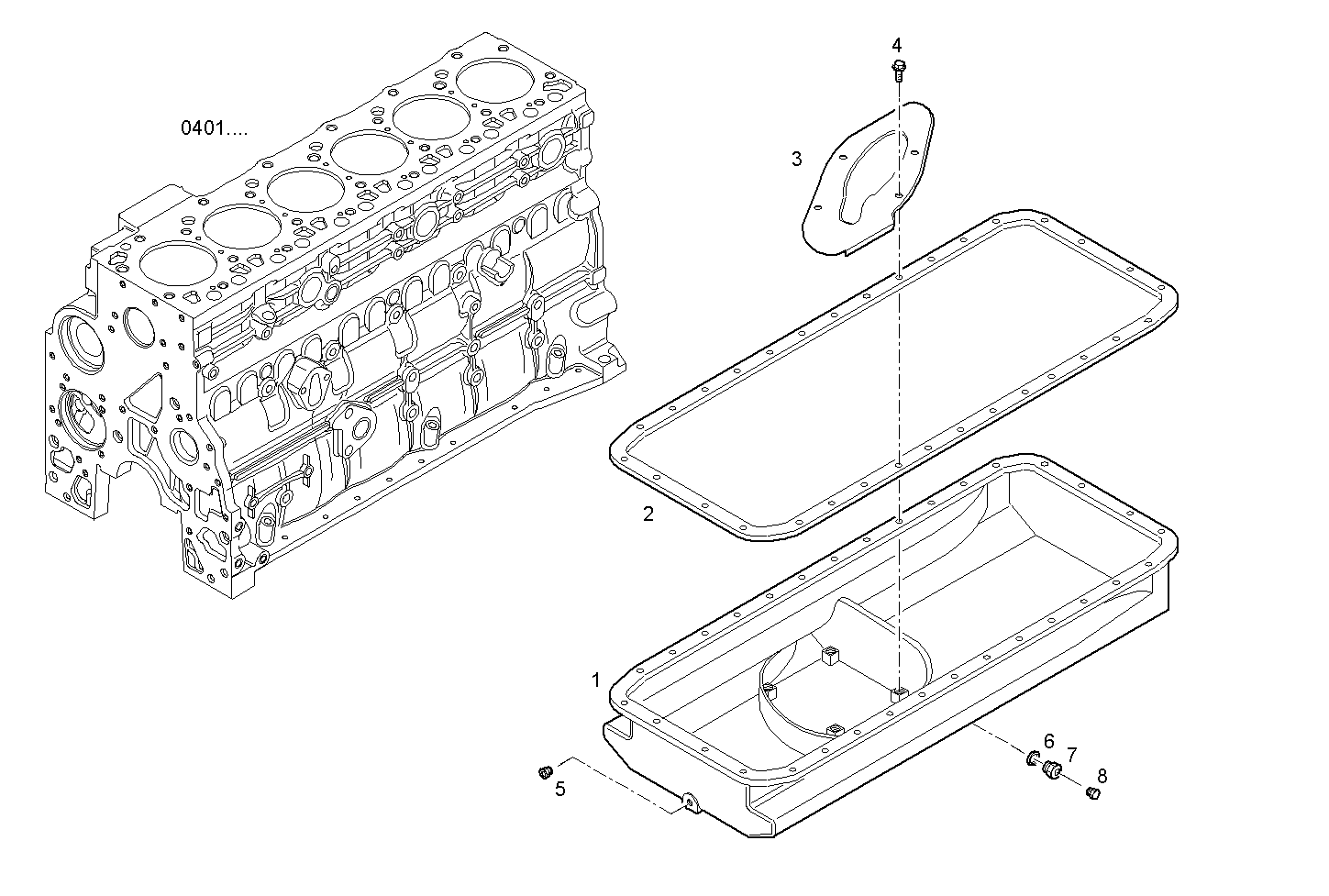

A01150501 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8048026 | MARINE ENGINE OIL SUMP ASSY |
| 2 | 504027340 | OIL SUMP GASKET |
| 3 | 8046764 | PLATE |
| 4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 5 | 8109299 | BUSH M24X1,5/M16X1,5 |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 8037440 | BUSH M24X1,5/M14X1,5 |
| 8 | 16992340 | THREADED PLUG M14X1,5 |
